Custom Axle Spindle Manufacturer
Axle Spindle
Frequently Asked Questions About Custom Axle Spindles
1. What types of custom axle spindles can SIMIS manufacture?
SIMIS manufactures OEM forged axle spindles, trailer wheel spindles, steering axle spindle ends, flanged spindles and stepped wheel-bearing spindle blanks according to customer drawings. Our principal products are individual metal axle and hub-support components for trucks, trailers, buses, agricultural equipment and off-highway machinery. Suitable steel spindles are made primarily by closed-die or open-die forging. Separate axle housings and mounting structures may be manufactured by casting where approved.
2. Can SIMIS produce forged 4140 or 4340 alloy steel axle spindles?
Yes. SIMIS provides closed-die steel forging for appropriately sized spindle bodies and open-die forging for suitable larger shaft blanks. Typical customer-specified grades include AISI 1045/C45 carbon steel and AISI 4140/42CrMo4 or AISI 4340 alloy steel. Forging forms the main stepped or flanged spindle shape; bearing journals, seal seats, threads and other specified interfaces are subsequently finished to the drawing. The selected grade and condition are confirmed for the particular application.
3. Are cast steel or ductile iron axle spindles available?
For the main wheel-supporting spindle of a road vehicle, SIMIS emphasizes forged steel rather than describing cast iron as a routine interchangeable option. Our casting capabilities are relevant to associated axle housings, differential housings, mounting brackets and suitable supporting castings. Cast steel and ASTM A536 ductile iron require their own material specifications and approval for the intended component. A cast housing is not the same product as a forged axle spindle.
4. Can SIMIS make stainless steel or aluminum alloy axle spindle parts?
Selected stainless steel or aluminum alloy spindle-related parts may be assessed when the OEM drawing specifies the alloy and its use is technically appropriate. Wrought 304 and 316 stainless steel are corrosion-resistant materials, while 17-4 PH is a distinct precipitation-hardening grade. Forging alloys such as 6061, 6082 and 7075 are different from aluminum casting grades. These specialty materials should not be treated as universal substitutes for forged steel in safety-critical vehicle wheel spindles.
5. What information is required for a custom axle spindle quote?
Please send the 2D drawing or available 3D CAD model, component type, material specification, principal dimensions and estimated order quantity. For a wheel spindle, useful dimensions include overall length, bearing journal diameters, shoulder positions, seal surfaces, thread size and mounting flange or weld interface where applicable. Identify whether you need a forged blank or a finished component and the intended axle or vehicle application. Any vehicle-load or approval requirements should be included in the purchasing documents. Email info@simis-group.com.
OEM Custom Axle Spindle Manufacturer for Trucks, Trailers and Machinery
Custom axle spindles are metal shaft or axle-end components that support a wheel hub and provide its specified bearing and sealing interfaces. On many trailer and non-driven axle arrangements, the spindle is a stationary axle-end member around which the hub rotates on bearings. Depending on the vehicle design, a spindle may be joined to an axle beam, integrated into a steering knuckle or supplied as a separately specified part.
SIMIS specializes in forged carbon steel trailer axle spindles, alloy steel wheel spindles, flanged spindle forgings, stepped spindle blanks and related OEM axle components. We manufacture according to customer-controlled drawings and material standards, rather than supplying a universal replacement spindle that fits every axle manufacturer.
Axle spindle geometry can include stepped bearing seats, shoulders, seal contact surfaces, end threads, cotter-pin or retaining features, splined sections on certain related axle parts and mounting or attachment flanges. The construction and interfaces depend on the intended assembly. A steering knuckle, a drive axle shaft and a stationary trailer spindle are different components despite sharing some machining or forging features.
For load-bearing wheel spindle bodies, steel forging is the primary manufacturing route presented on the SIMIS original product page. SIMIS also manufactures associated cast components, including custom differential and axle housings, but a casting should not be described as the same as a forged spindle or as an automatic substitute for it.
Types of Trailer Axle Spindles, Wheel Spindles and Axle-End Components
Axle spindle designs differ in connection type, installed position, bearing arrangement and production size. SIMIS supports the types described below when the customer supplies the relevant drawings and component specification.
| Custom Part | Typical Geometry / Supply | Typical Equipment |
|---|---|---|
| Trailer Wheel Spindle | Stepped bearing and seal journals, retention thread and axle attachment end. | Commercial, utility and agricultural trailers. |

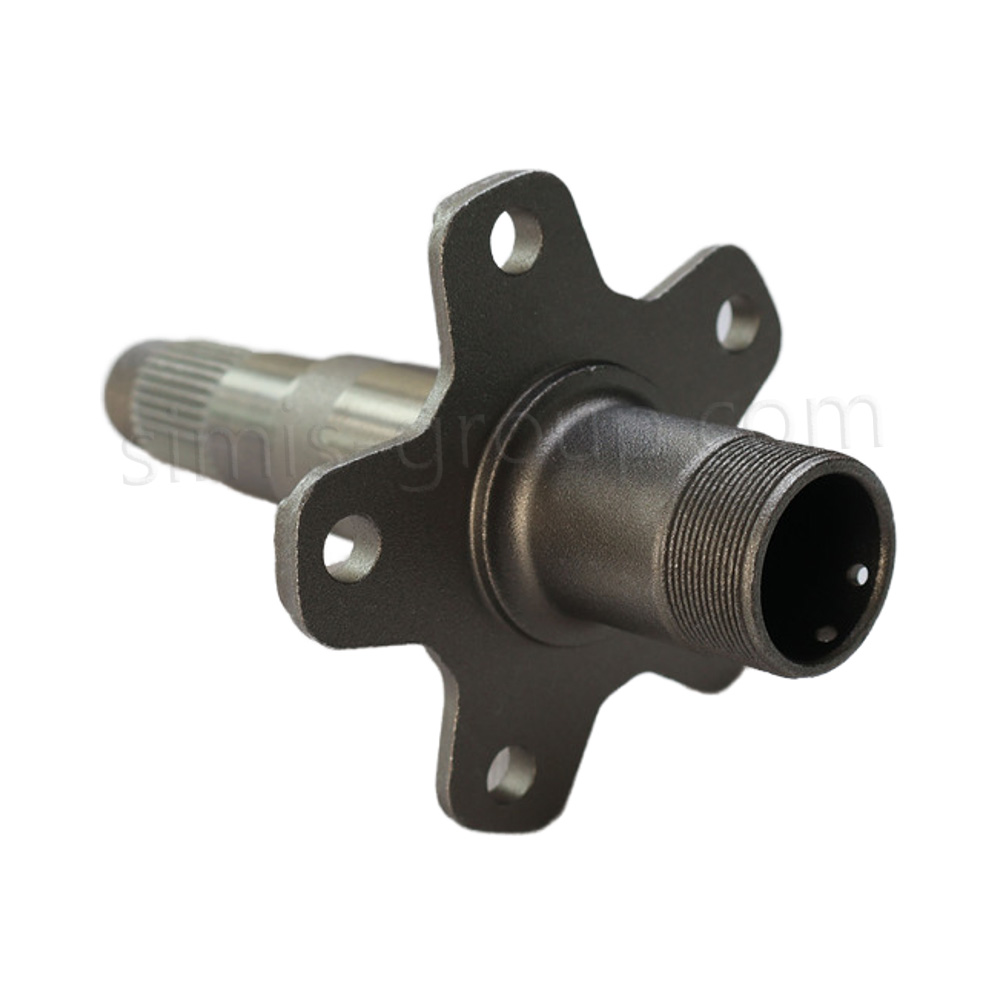

| Flanged Axle Spindle | Integral flange or mounting plate with a central stepped shaft section. | Specified trailer axles and off-highway wheel assemblies. |
| Steering-Axle Spindle End | Hub-bearing support portion with application-specific knuckle or axle interfaces. | Buses, trucks and selected steering axle assemblies. |
| Heavy-Duty Alloy Steel Spindle | Forged steel shaft with substantial shoulders and specified journal features. | Heavy trucks, construction and mining equipment. |
| Spindle Forging Blank | As-forged or rough-machined metal preform with finishing stock. | OEM axle manufacturers completing application-specific interfaces. |
| Related Axle Support Castings | Ductile iron or cast steel housings, brackets and separate structural parts. | Axle and differential support structures, not substitute forged spindles. |

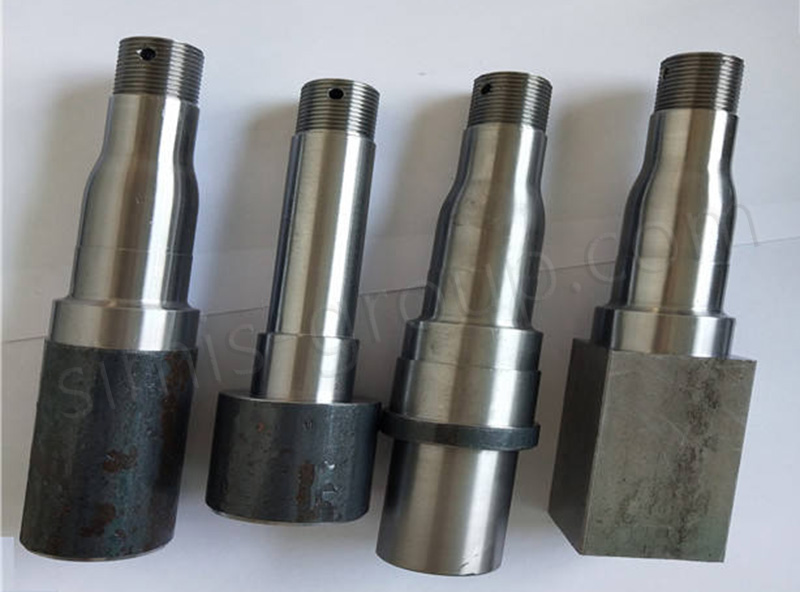

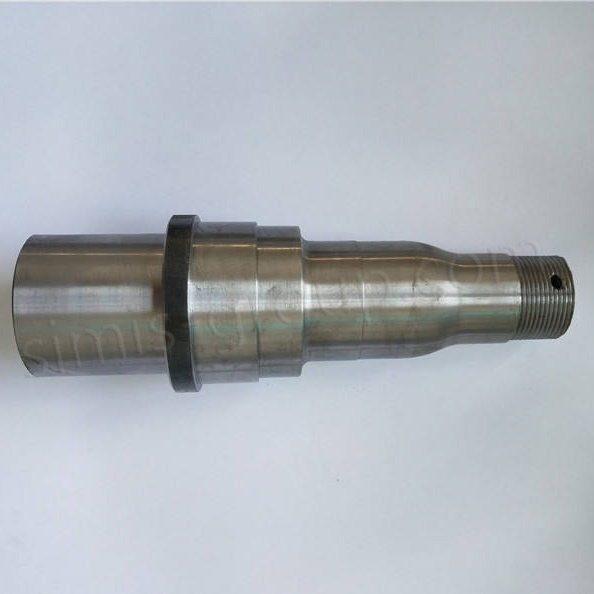

Trailer and Utility Axle Spindles
Trailer axle spindles commonly have one or more bearing journal diameters, a seal seat and an end retention arrangement. Some are designed for attachment to a fabricated axle tube or beam, while other designs incorporate mounting features. SIMIS manufactures the specified spindle geometry from an approved steel forging grade. Bearing and hub compatibility is governed by the original axle drawing.
Heavy Vehicle and Off-Highway Wheel Spindles
For trucks and heavy machinery, wheel spindle components can be larger and may use alloy steel forgings with complex stepped sections. The spindle and the axle housing perform different roles: the spindle establishes the hub-support interface while the surrounding axle or steering structure carries other mechanical loads. SIMIS provides related steering knuckle forgings and castings as separate OEM products.
Closed-Die Forging, Open-Die Forging and Associated Axle Casting Processes
The main load-bearing axle spindle is generally supplied by SIMIS as a steel forging. The forging method depends on the spindle size and shape. Casting is addressed separately for compatible axle housings and related non-spindle structures. This distinction is important for OEM procurement and realistic manufacturing claims.
| Manufacturing Route | Suitable Component | What the Process Produces |
|---|---|---|
| Closed-Die Steel Forging | Compact and medium-sized spindle bodies, flanged spindles and stepped axle-end forgings. | Heated steel formed in shaped dies; near-net-shape spindle blanks for subsequent finishing. |
| Open-Die Steel Forging | Suitable larger spindle blanks and heavy steel shaft components. | Hot steel progressively formed under compressive force into stepped or cylindrical preforms. |
| Stainless Steel Forging | Selected specialty spindle-related parts when the grade and application are approved. | Wrought stainless steel metal preforms under an appropriate forging route. |
| Aluminum Alloy Closed-Die Forging | Selected approved lightweight spindle-related parts and connection components. | Wrought aluminum alloy forgings, not aluminum die-cast substitutes. |
| Sand Casting — Separate Parts | Cast steel or ductile iron axle housings, mounts and differential supports. | Complex cast structural shapes; not automatically the main wheel-support spindle. |
| Shell Mold or Other Approved Casting | Compatible smaller axle brackets and support components. | Cast metal features where the material, size and drawings suit the process. |

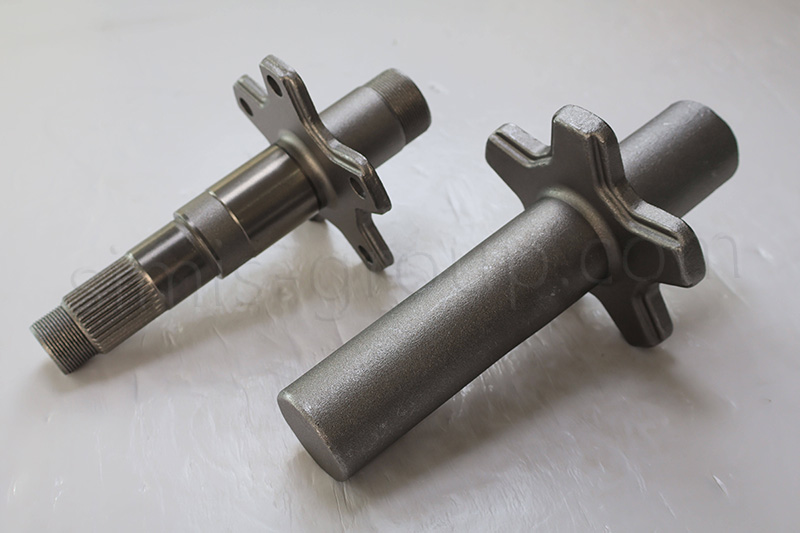

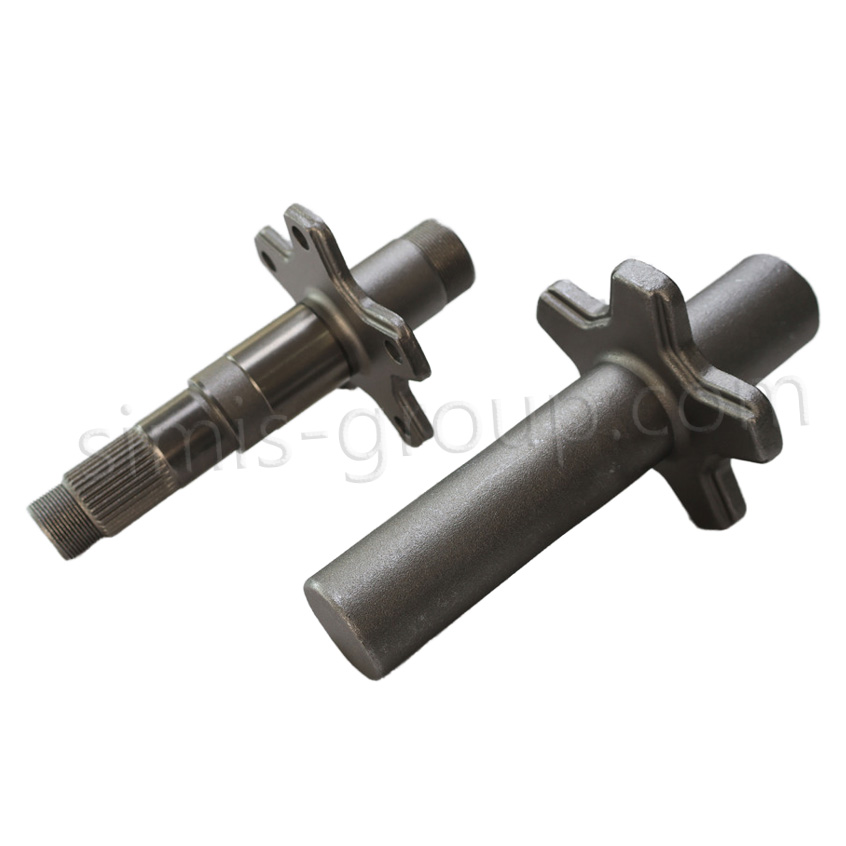

Closed-Die Forged Steel Axle Spindles
Closed-die forging is the key SIMIS production method for appropriate axle spindle bodies. A heated steel billet is formed between tool impressions to obtain the required principal shape. The process can produce stepped cross sections, enlarged mounting ends and other integral features. Customer-specified grades may include 1045, 4140 and 4340 steel.
SIMIS provides custom closed-die forging for automotive, industrial and machinery components. The forging is a shaped metal blank, not an automatic guarantee of final journal accuracy, zero internal discontinuities or a certified fatigue life. The finished requirements are established in the approved order.
Open-Die Forging for Larger Axle and Spindle Blanks
Open-die forging is suitable for certain substantial steel shaft blanks where their size and cross section are compatible with the process. The billet is deformed between relatively simple tools, allowing the manufacturer to shape long or thick sections before finishing. SIMIS offers open-die forging services and broader carbon and alloy steel forging to OEM customers.
Casting for Axle Housings and Mounts — Not a Direct Spindle Replacement
SIMIS also provides sand casting, steel casting and ductile iron casting for suitable axle-related structures. Examples include differential housings, mounting brackets and other approved shapes. These components may carry substantial structural loads, but their design, materials and manufacturing requirements are distinct from those of a forged wheel spindle. A proposed cast spindle would require explicit drawing approval and applicable qualification, rather than being presented as a standard equivalent.
Axle Spindle Materials: 1045 Carbon Steel, 4140, 4340 and Specialty Alloys
Axle spindle material requirements depend on the original vehicle or equipment drawing, the attachment arrangement and the required manufacturing condition. For many conventional wheel spindle forgings, carbon and alloy steel grades are the principal material options. Specialty stainless steel and aluminum forgings are considered only where the specific application justifies their use.
| Material / Standard Family | Material Type and Characteristics | Potential OEM Part |
|---|---|---|
| AISI 1045 / EN C45 | Medium-carbon wrought steel suitable for selected hot-forged mechanical components. | Custom trailer wheel spindle and general machinery spindle forgings. |
| AISI 1050 / C50 | Medium-carbon wrought steel with specification-dependent mechanical properties. | Customer-defined spindle and axle-end forgings. |
| AISI 4140 / EN 42CrMo4 | Chromium-molybdenum alloy forging steel; related but not identical national specifications. | Heavy-duty trailer, vehicle and machinery spindle forgings. |
| AISI 4340 | Nickel-chromium-molybdenum alloy forging steel for selected high-duty components. | Customer-approved heavy vehicle or industrial spindle parts. |
| 304 / 316 Wrought Stainless Steel | Austenitic stainless steels with grade- and environment-dependent corrosion properties. | Specialty corrosion-exposed spindle-related components when approved. |
| 17-4 PH Stainless Steel | Precipitation-hardening stainless steel with a distinct specified condition. | Specialized custom shafts or spindle components where specified. |
| 6061 / 6082 / 7075 Wrought Aluminum | Forgeable aluminum alloy families, separate from cast aluminum grades such as A356. | Selected lightweight forged mechanical components when OEM-qualified. |
| Cast Steel / ASTM A536 Ductile Iron | Separate casting-grade metal families, not replacements for forged 4140 or 4340. | Approved axle housings, structural supports and other associated castings. |
Forged Carbon Steel for Trailer Spindles
AISI 1045 and 1050 are medium-carbon steels that may be specified for suitably designed trailer spindle and axle-end forgings. Their properties depend on the applicable product standard and supply condition. SIMIS manufactures the steel spindle blank to the customer drawing; the grade alone does not establish a wheel load rating.
4140 / 42CrMo4 and 4340 Alloy Steel Spindle Forgings
AISI 4140 and EN 42CrMo4 are related chromium-molybdenum alloy steels used in mechanical forgings, but purchasing requirements should cite the actual steel standard. AISI 4340 is a separate nickel-containing alloy family. SIMIS supplies suitable alloy steel spindle forgings according to the grade, dimensions and condition specified in the customer drawings.

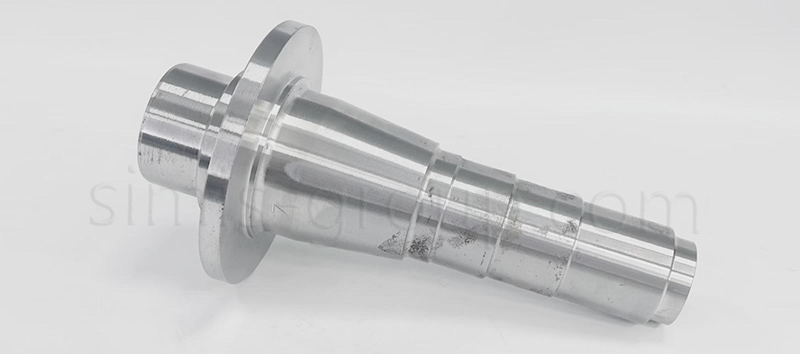

Stainless Steel and Forged Aluminum for Special Applications
Corrosion-exposed equipment may use selected wrought stainless steel components. However, 304, 316 and 17-4 PH have different mechanical and metallurgical characteristics and are not interchangeable. Likewise, lightweight components may be made from forged 6061, 6082 or 7075 aluminum only where the customer design and qualification allow it. SIMIS offers aluminum alloy forging services for appropriate applications; aluminum casting grades must be specified separately.
Applications of Custom Forged Axle Spindles and Axle-End Components
Commercial Trailers and Truck Axles
Commercial trailers and truck axle systems use wheel spindles with bearing seats, seals and hub-retention interfaces specified for the axle configuration. SIMIS supplies drawing-based forged steel axle-end components for truck and automotive equipment manufacturers. The component is manufactured to the agreed OEM requirement, not supplied with an assumed vehicle-wide axle rating.
Agricultural Machinery and Farm Trailers
Agricultural trailers, tractors and farm implements can require custom wheel spindles and axle-end forgings with different mounting arrangements. SIMIS manufactures suitable carbon and alloy steel parts for agricultural machinery based on the specified dimensions, materials and quantity.
Construction and Mining Equipment
Off-highway machines use heavy wheel hub support structures and axle components. Some configurations require substantial alloy steel wheel spindle forgings, while other assemblies also incorporate separate cast axle housings and brackets. SIMIS supplies the ordered metal components according to the equipment maker’s part specification.
Marine Trailers and Specialized Mobile Equipment
Corrosion-exposed trailers and mobile equipment may require specific surface protection or customer-approved specialty materials. The complete spindle, bearing, hub and axle construction must be evaluated for the relevant service. SIMIS manufactures the specified steel or specialty-metal part and does not imply that corrosion resistance alone establishes wheel-carrying performance.
Custom OEM Axle Spindle Forgings Manufactured to Customer Drawings
SIMIS manufactures forged axle spindle bodies and related shaft components to customer-controlled drawings. The supply scope may include a rough steel forging, a partly finished spindle blank or a finished part with the specified bearing journals, shoulders, threads and mounting features. We do not treat a stationary wheel spindle, a drive axle shaft and a steering knuckle as identical components.
The primary manufacturing route is selected from suitable closed-die and open-die steel forging. Forged stainless steel or aluminum alloy components may be considered for customer-approved special applications. Cast steel and ductile iron capabilities support associated axle structures, but casting is not described as a routine direct substitute for a forged wheel spindle.
Machining, heat treatment, coatings, material documentation and inspection are included only as required by the approved technical documents and purchase order. There is no universal hardness, bearing fit, fatigue-test cycle count, gross axle weight rating or automotive certification that applies to every custom spindle. The vehicle or axle OEM determines the relevant part-level qualification and assembly performance requirements.
The following original page image shows the steel forging production environment. It is a manufacturing reference photograph rather than an image of a finished or certified axle spindle.
Request a Quote for Custom Forged Axle Spindles
SIMIS welcomes OEM requests for forged steel trailer axle spindles, flanged wheel spindles, alloy steel axle-end forgings and associated axle metal components. For a quotation, please provide the following five items where available:
Drawings: 2D technical drawings or available 3D CAD files for the required spindle.
Component and application: Trailer spindle, steering-axle spindle end, flanged spindle or related part; intended equipment or axle model.
Material: Specified 1045, 4140, 4340, stainless steel or other approved material grade and standard.
Key interfaces: Overall length, bearing journal and seal diameters, shoulder locations, end thread and mounting or weld-end geometry.
Order details: Estimated quantity, forged blank or finished-part requirement, and any applicable OEM load or qualification specification.
Additional dimensional, material, heat treatment and inspection requirements can be included in the customer-approved documents. SIMIS will quote the agreed material and supply condition. Send your axle spindle OEM inquiry to info@simis-group.com.
