Custom Firefighting Hardware Manufacturer
Firefighting Hardware

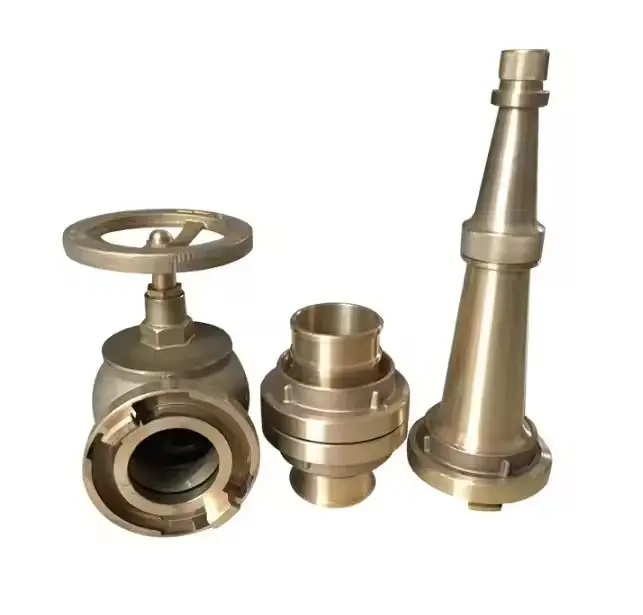

China Simis Company specializes in the custom manufacturing of Copper Alloy Firefighting Hardware, encompassing critical components such as Valves, Hose Couplings, and Nozzles. These products form the final, active line of defense in any fire suppression system and are absolutely life safety critical. They must ensure immediate, reliable activation and secure containment under high pressure.
Copper alloys (Brass, Bronze, Aluminum Bronze) are the material of choice due to their inherent corrosion resistance to water/seawater and their anti-spark properties. We employ a combination of advanced Casting techniques (for complex bodies and flow paths) and Forging (for maximum density in high-stress, threaded components) to guarantee products with zero-porosity, high pressure ratings, and adherence to international fire safety standards (UL/FM/NFPA).
What Are the Classifications and Functional Roles of Copper Firefighting Hardware Components?
Copper firefighting hardware components manufactured by China Simis Company are classified into four core categories based on their functional roles in fire suppression systems: Flow Control & Shutoff, Connection & Coupling, Stream Shaping & Delivery, and External & Interface. Each category is engineered with specific performance requirements and matched to optimal copper alloy materials and manufacturing processes to ensure life-safety reliability.
| Category | Component Name | Primary Functional Role | Key Performance Requirement | Typical Material & Process |

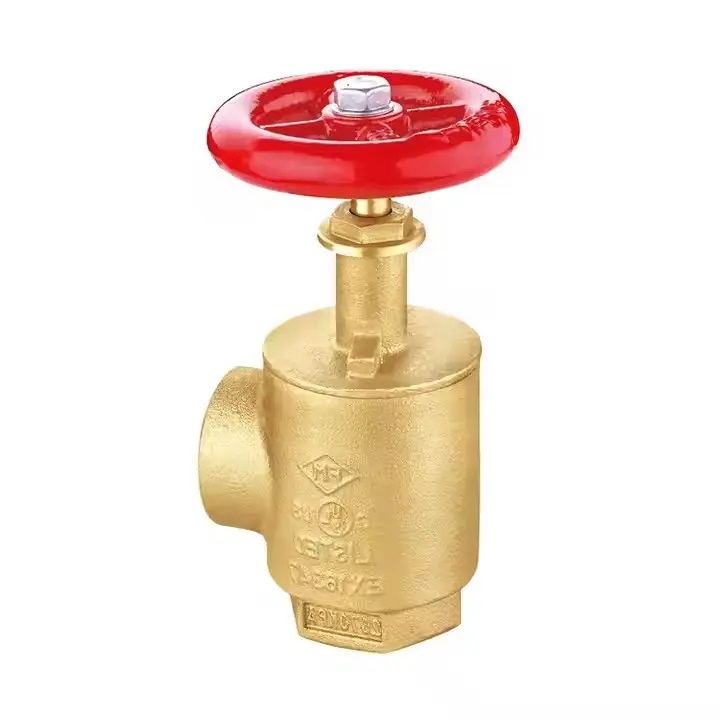

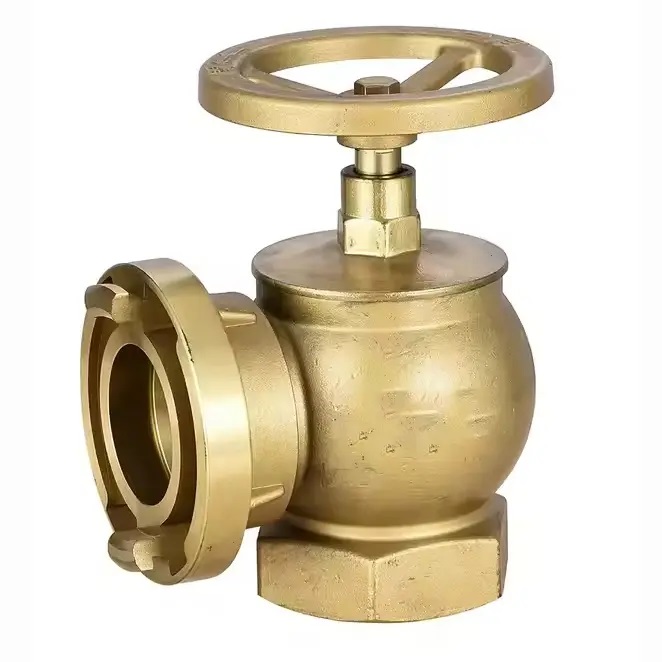

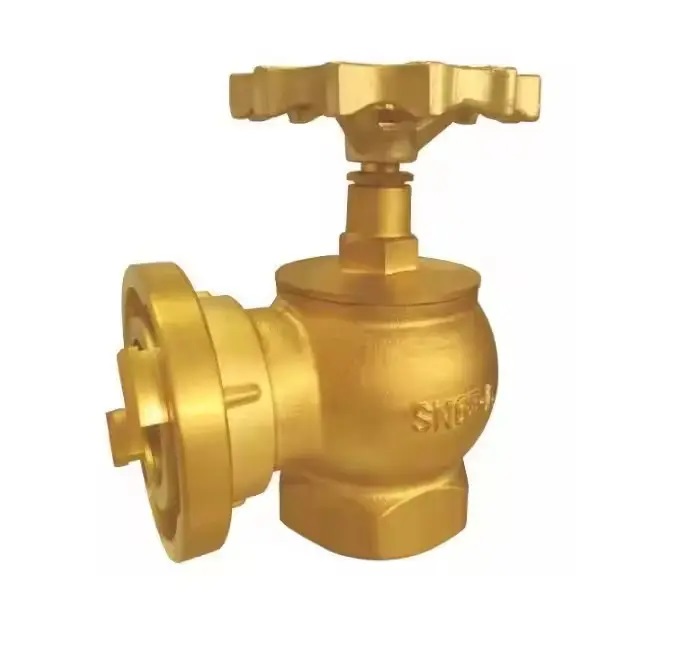

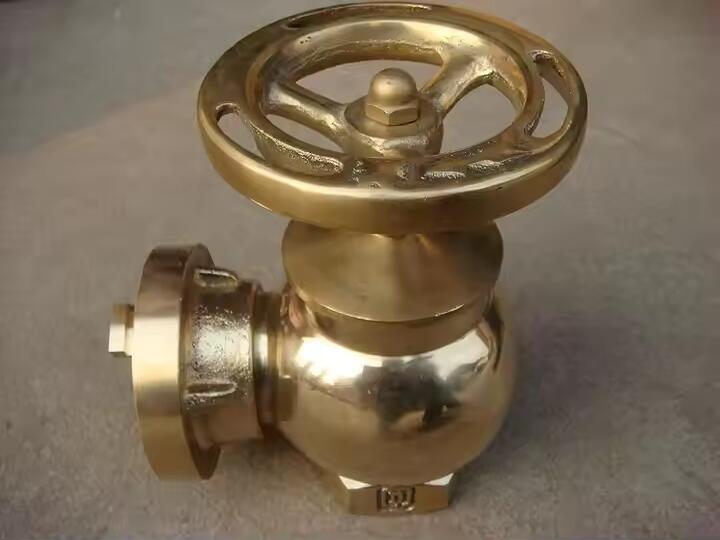

| Flow Control & Shutoff | Valve Bodies, Bonnets, Discs, Stems | To safely contain system pressure and reliably start/stop the water flow, often after long periods of inactivity. | Zero Leakage, High Pressure Rating, Absolute Reliability, Anti-Seizing. | Sand/Shell Cast Bronze (C84400 Body); Forged Brass (Stem) or Investment Cast Bronze. |

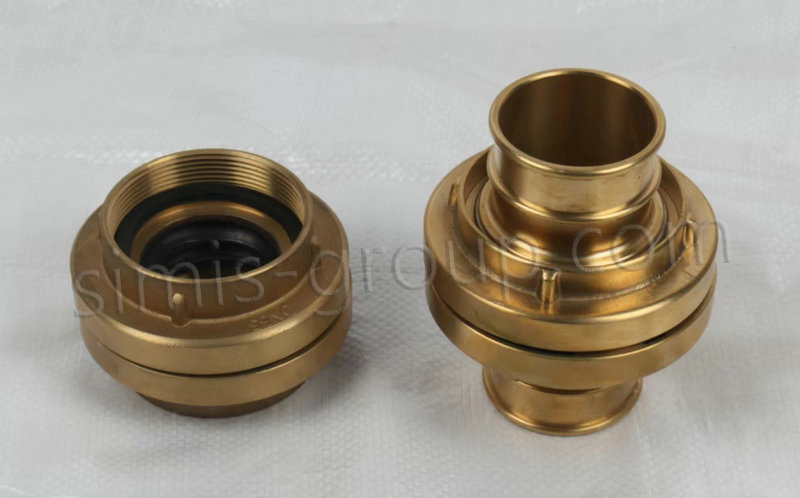

| Connection & Coupling | Swivel Nuts, Couplings, Adapters, Caps | To provide fast, secure, and leak-proof connections between hoses and standpipes under high dynamic pressure. | High Mechanical Strength, Thread Integrity, Resistance to Cross-Threading, Durability. | Closed-Die Forged Brass/Bronze (for maximum thread strength); Investment Cast Aluminum Bronze. |
| Stream Shaping & Delivery | Nozzle Body, Tip, Barrel | To regulate the flow rate and shape the water into an effective stream pattern (e.g., straight stream, fog, variable). | Precision Orifice/Flow Path, High Ejection Pressure Resistance, Minimal Flow Turbulence. | Investment Cast Bronze/Aluminum Bronze (for precision flow paths); Forged Brass (for high-pressure tips). |
| External & Interface | Handwheels, Operating Nuts, Flanges, Handles | External components for user operation and connection to the static piping system. | Ergonomics, Weather Resistance, High Torsional Strength (Handwheel). | Sand Cast Bronze (Handwheel); Forged Brass/Bronze (Nuts/Handles). |
What are the manufacturing processes for copper fire-fighting equipment?
To ensure the density, precision and optimal flow control of copper firefighting hardware, China Simis Company adopts a combination of four core manufacturing processes: Closed-Die Forging, Investment Casting (Lost-Wax), Sand Casting/Shell Mold Casting, and Precision CNC Machining. Each process is assigned to specific components based on their structural stress, flow path complexity and performance requirements, with a focus on eliminating internal porosity and ensuring pressure containment.
| Manufacturing Process | Component Focus | Key Advantage for Fire Safety | Specific Process Detail |
| Closed-Die Forging | Couplings, Nozzle Tips, Valve Stems. | Maximum Material Density and Strength. Critical for threaded couplings and nozzle interfaces to withstand dynamic pressure fluctuations and eliminate microscopic leaks. | Guarantees superior mechanical strength for stress-bearing components. |
| Investment Casting (Lost-Wax) | Valve Seats, Small Nozzle Bodies, Complex Couplings. | Extreme Precision for Internal Features. Ideal for intricate flow-path geometry inside nozzles and valves, minimizing turbulence and ensuring precise valve sealing. | Used for high-pressure, precision components that require minimal machining. |
| Sand Casting / Shell Mold Casting | Valve Bodies, Large Couplings, Hydrant Connections. | Cost-Effective for Large/Heavy Components. Shell casting is preferred over standard sand for copper alloys to improve surface finish and reduce porosity in pressure-containing walls. | Used for the main body/shell of larger valves and couplings. |
| Precision CNC Machining | All Components. | Achieving Sealing Face Finish. Mandatory for all flange surfaces, threads, nozzle orifices, and valve seats to ensure leak-tight connections and optimized stream characteristics. | Final step for critical performance and interface areas. |
How to Select Copper Alloy Firefighting Hardware Materials?
The selection of copper alloy materials for firefighting hardware is determined by three key factors: corrosion resistance to the target medium, pressure rating requirements of the component, and environmental safety conditions. China Simis Company offers three primary copper alloy options—Bronze (Tin Bronze), Brass (Copper-Zinc), and Aluminum Bronze—each optimized for specific firefighting components and application environments to ensure long-term reliability and safety.
| Material Type | Primary Performance Focus | Typical Firefighting Component Use |
| Bronze (Tin Bronze) | Excellent Corrosion Resistance to static water; superior density; high pressure rating. | Valve bodies, couplings, and general fire hose fittings. |
| Brass (Copper-Zinc) | Cost-Effective, Good Machinability, decent pressure rating. | Small, high-volume fittings, valve handles, and trim. |
| Aluminum Bronze | High Strength, Erosion, and Seawater Resistance. | Maritime nozzles and valves where aggressive corrosive environments and high-velocity flow are present. |
What Quality Assurance Measures Ensure Integrity and Regulatory Compliance (UL/FM) for Copper Firefighting Hardware?
To ensure the structural integrity and regulatory compliance (UL/FM) of copper firefighting hardware, China Simis Company implements a four-dimensional quality assurance system covering Non-Destructive Testing (NDT), Density Verification, Dimensional Accuracy, and Regulatory Documentation. These measures are strictly enforced on every component to meet the life-safety critical standards of fire suppression systems.
·Non-Destructive Testing (NDT):
Hydrostatic Pressure Testing is performed on every finished component (valve body, coupling, nozzle) to confirm structural integrity and guarantee zero leakage at maximum operating and test pressures.
·Density Verification:
X-ray Radiography (RT) is employed on critical forged/cast components to confirm the absence of internal porosity which could lead to weeping or failure under pressure.
·Dimensional Accuracy:
CMM verification of threaded interfaces (e.g., hose couplings) and valve seating surfaces to ensure compatibility with standardized fire safety equipment and guaranteed sealing.
·Regulatory Focus:
Our manufacturing processes are strictly documented to support customer applications for UL (Underwriters Laboratories) or FM (Factory Mutual) regulatory approval.
How to Get a Quote for Custom Copper Firefighting Hardware?
China Simis Company is your expert partner for custom forging and casting copper alloy firefighting hardware, providing integrated solutions engineered for maximum safety, regulatory compliance, and unmatched corrosion resistance. To obtain a detailed and accurate quotation for your custom copper firefighting hardware project, please submit the following technical documents and parameters to our engineering department: 2D technical drawings or 3D CAD models for all components (valve, coupling, nozzle), specified copper alloy grade (e.g., C84400 Red Brass or C95500 Aluminum Bronze), required pressure rating, target regulatory compliance (UL/FM) and expected production volume. Our professional engineering team will review your requirements promptly and provide a comprehensive quotation including pricing, lead time and technical specifications.
