Custom Impeller Manufacturer

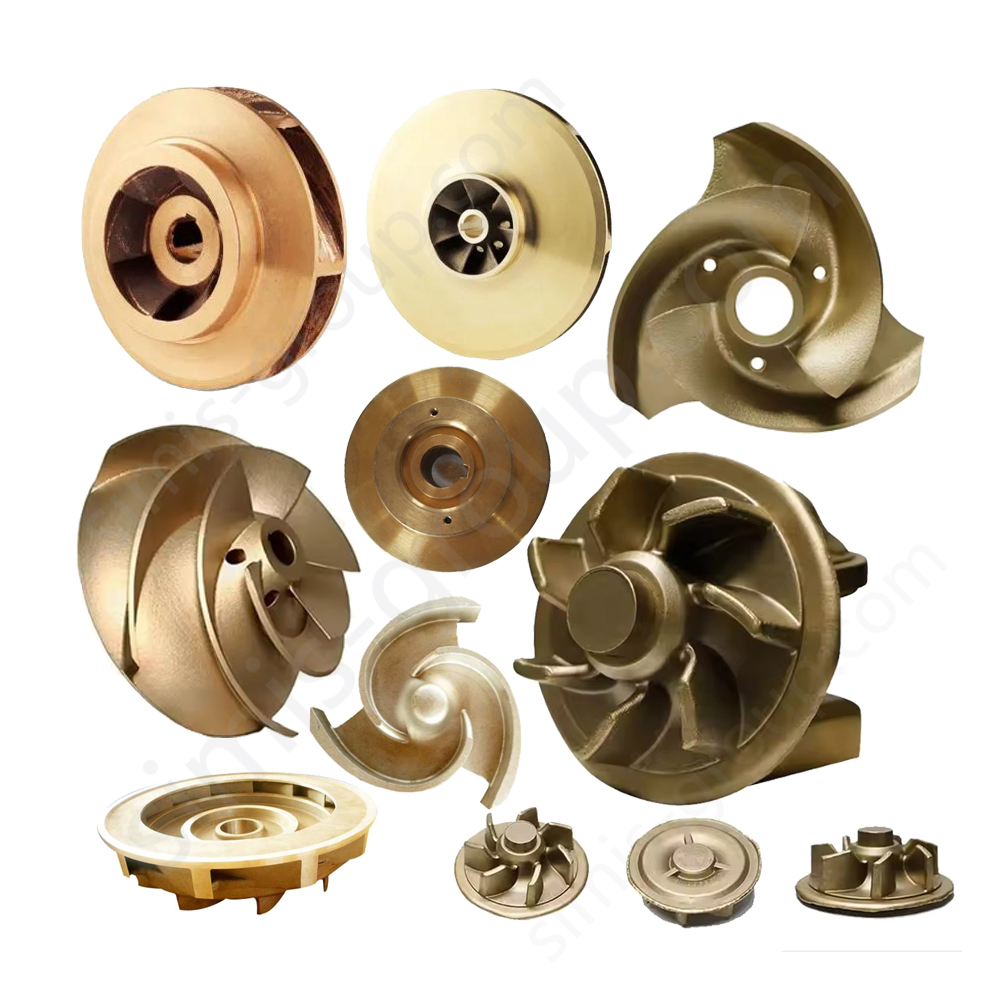

Impeller
China Simis Company specializes in the manufacturing of high-performance Impellers for a wide range of fluid machinery, including centrifugal pumps, compressors, and hydraulic turbines. The Impeller is a critical rotating component responsible for efficiently transferring energy to the fluid. Its performance is critically dependent on precise blade geometry, superior surface finish, and accurate dynamic balance.
We utilize high-precision Investment Casting for complex, corrosion-resistant blades (Stainless Steel) and Pressure Die Casting for lightweight aluminum Impellers. For applications requiring high strength at a lower cost, such as municipal water systems, we employ Sand Casting of Ductile Iron. All finished Impellers require mandatory Precision CNC Machining to guarantee hub bores, sealing faces, and the final dynamic balance tolerances.

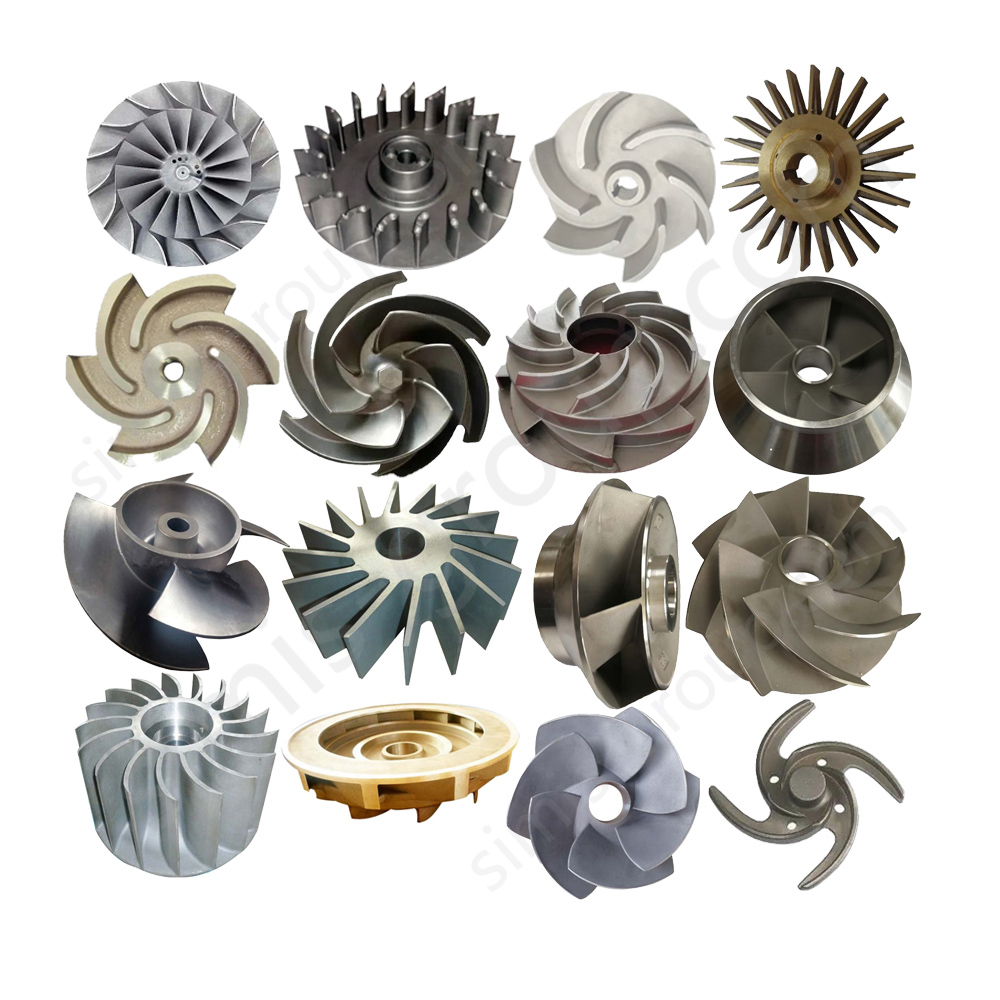

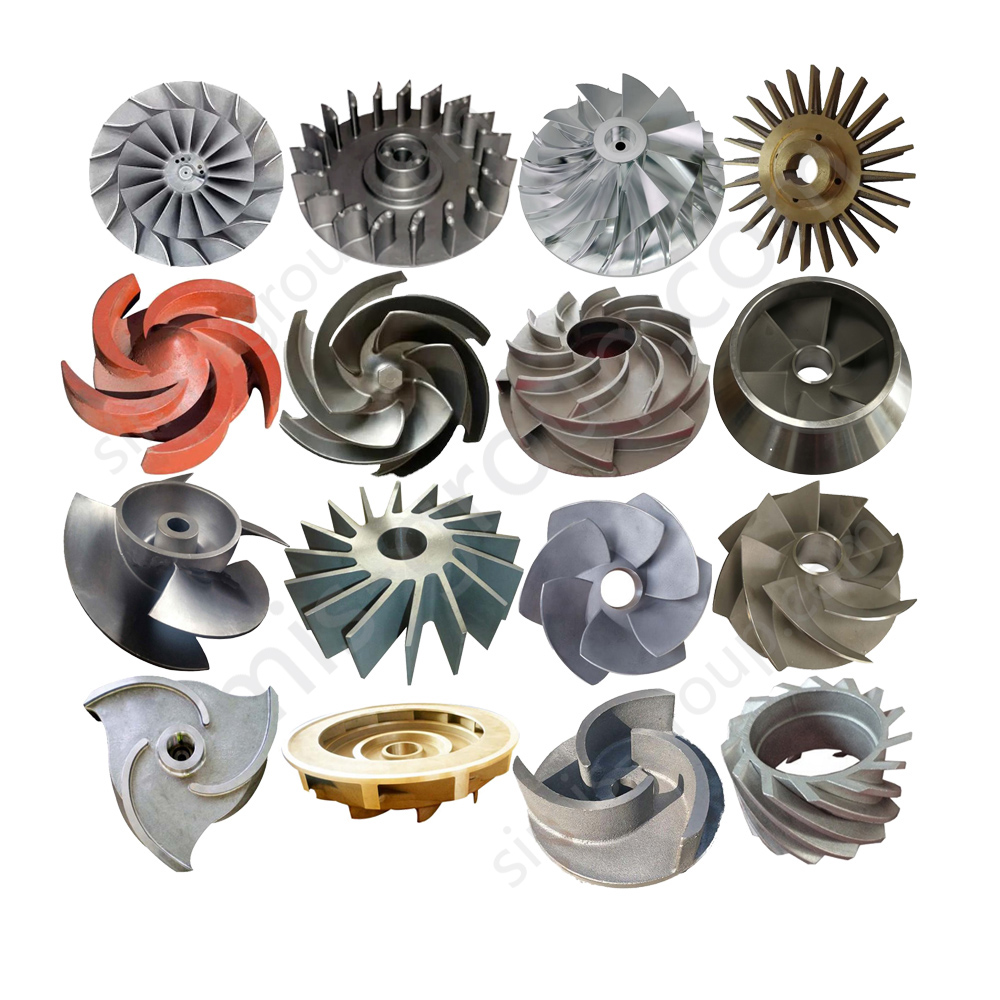

What Are the Main Impeller Classifications and Corresponding Flow Types?
Simis manufactures impellers across all structural and flow types, with designs optimized for specific pressure, flow, and fluid media requirements.
| Impeller Classification | Flow Type & Function | Key Feature |

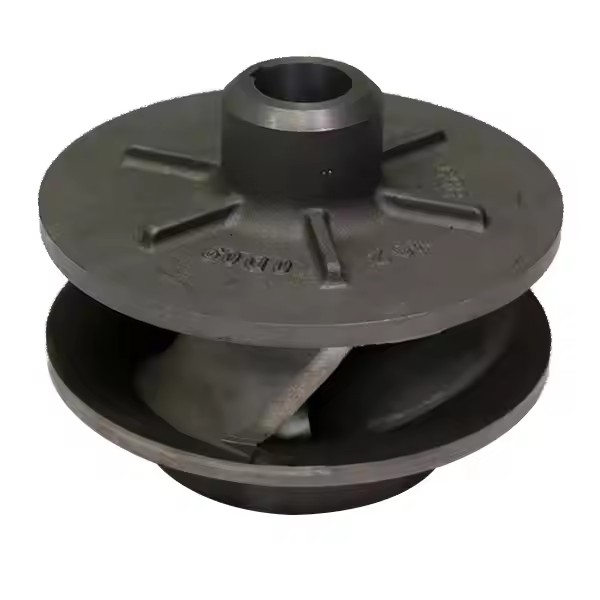

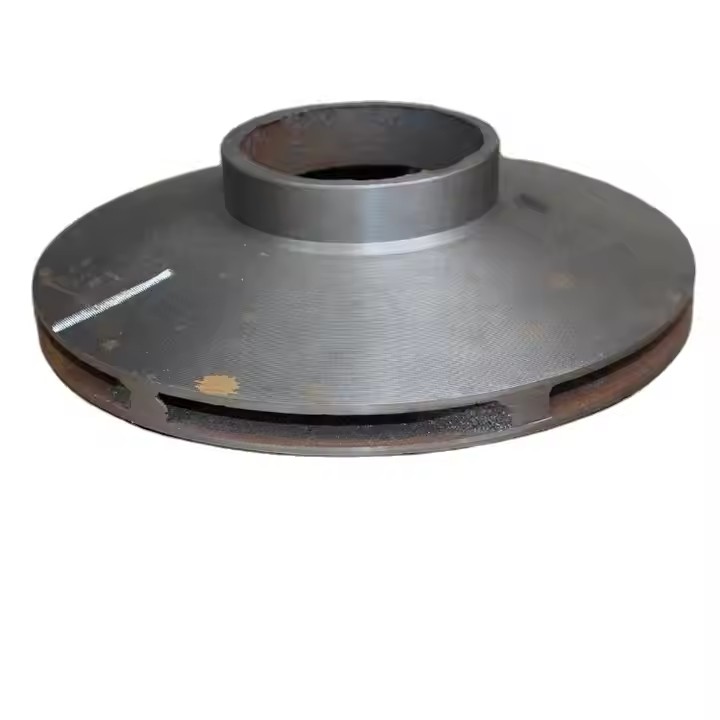

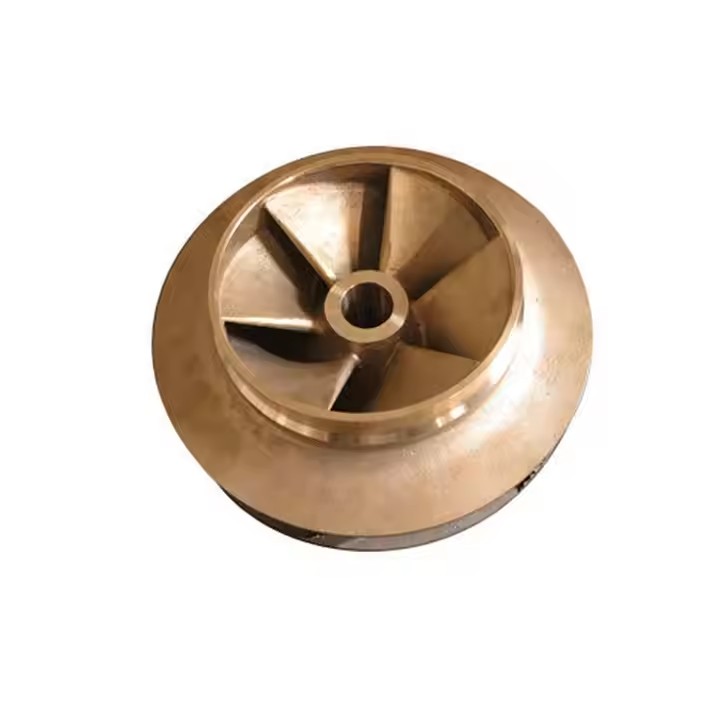

| Closed Impeller | Centrifugal Flow (High Head, Low Flow). | Vanes fully enclosed by shrouds; highest efficiency for clean liquids. |

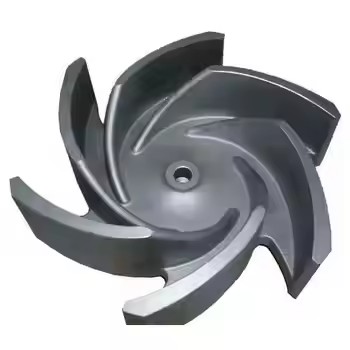

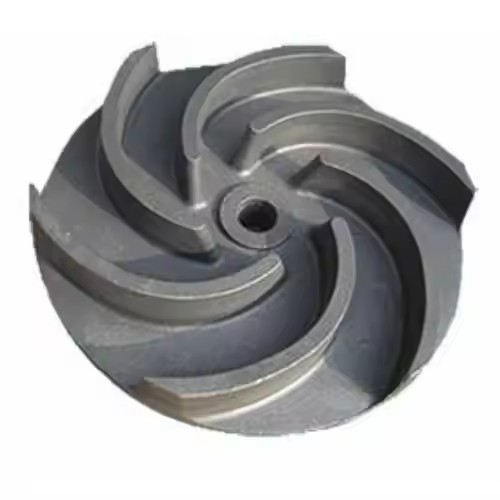

| Semi-Open Impeller | Centrifugal Flow (Moderate Head/Flow). | Shroud on one side; suitable for liquids with some solids/slurry content. |
| Open Impeller | Centrifugal Flow (Low Head, High Flow). | No shrouds; maximum resistance to clogging for heavy slurries/solids (easy cleaning). |
| Axial-Flow & Mixed-Flow | Axial or Combined Flow. | High flow rate, low head (Axial) or combined pressure/flow (Mixed) systems. |
What are the manufacturing processes for impellers?
The performance and service life of an impeller are critically dependent on the structural integrity and precision of its manufacturing. Simis selects the best process from our extensive capabilities based on the required material, geometry, and application stress levels.
| Manufacturing Process | Applicable Material Range | Impeller Type | Application Focus for Impellers | Core Advantage |
| Investment Casting | Stainless Steel, Duplex Steel, Superalloys, Alloy Steel. | Complex centrifugal, mixed-flow impellers | High-efficiency Impellers for chemical, aerospace, and high-performance pumps requiring superior surface finish and corrosion resistance. | Achieves near-net shape for complex blade designs, minimizing machining time on curved surfaces. |

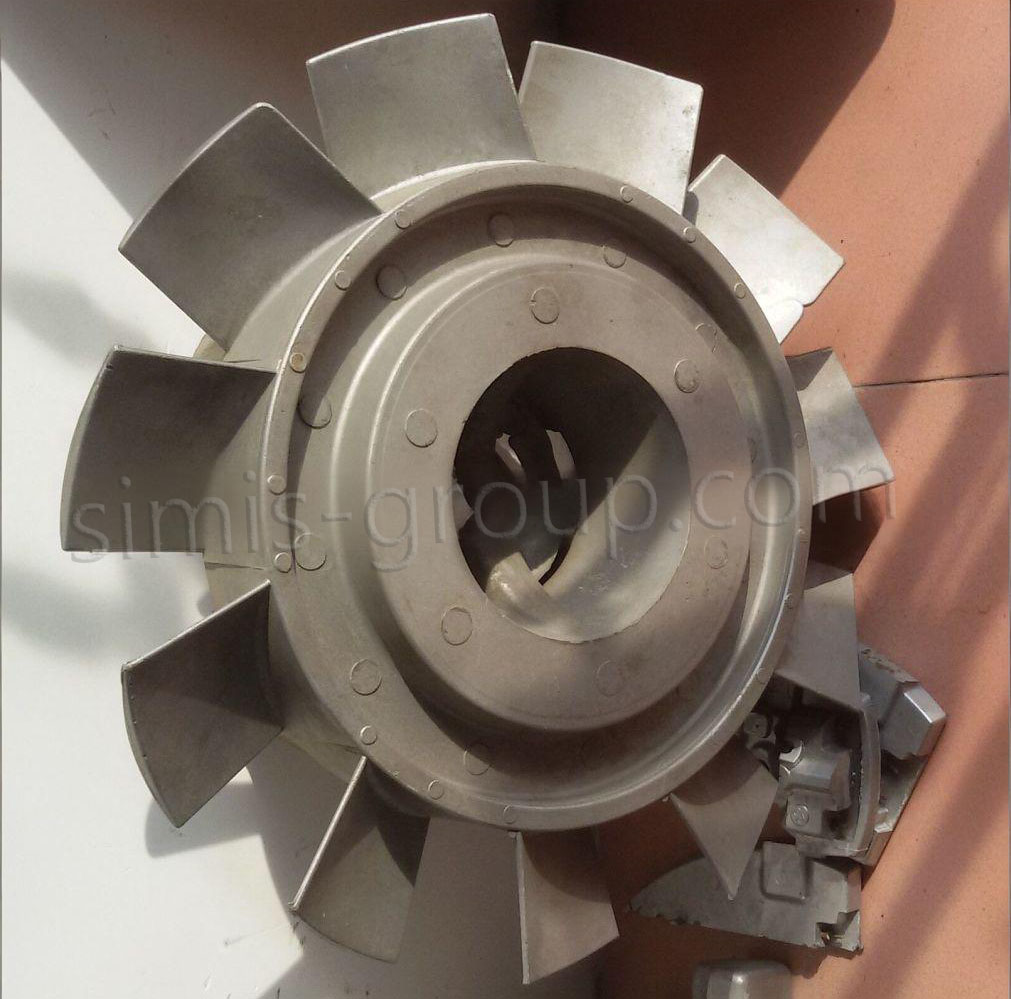

| Pressure Die Casting | Aluminum Alloy, Zinc Alloy | High-volume, thin-walled impellers | High-volume production of small, lightweight Impellers for automotive pumps, blowers, and turbochargers. | Provides the highest dimensional repeatability and lowest unit cost for high-volume, non-critical blades. |
| Sand Casting | Ductile Iron, High-Chrome Cast Iron, Aluminum Alloy, Carbon Steel, Alloy Steel, Copper Alloy | Large, heavy-duty impellers | Cost-effective, large Impellers for municipal, fire suppression, or low-pressure industrial pumps. | Versatility for very large components and structural integrity where high corrosion/speed resistance is not the primary need. |
| Shell Mold Casting | Ductile Iron, Carbon Steel, Alloy Steel, Bronze. | Medium and small heavy-duty impellers | Medium-sized pump impellers, industrial water pump rotors. | Vane Consistency & Surface Quality. Offers much smoother flow channels than sand casting with high dimensional repeatability. |
| Lost Foam Casting | Ductile Iron, Carbon Steel, Aluminum. | Complex cast iron impeller | Complex multi-vane impellers, integrated pump rotors with intricate internal channels. | Seamless Complexity. Eliminates sand cores and parting lines, significantly improving hydraulic balance and reducing casting defects. |
| Precision CNC Machining | All Alloys | All impellers | Mandatory finishing for the hub bore, keyways, sealing rings, and final balancing adjustments. | Guarantees critical fit, concentricity, and dynamic balance required for high-speed rotation. |
How to Select Impeller Materials?
Impellers require materials that resist various challenges, including corrosion, cavitation, and abrasion. We customize material selection based on the pumped medium (water, air, sludge, chemicals):
| Material Type | Core Performance Attributes | Primary Application Scenarios for Impellers |

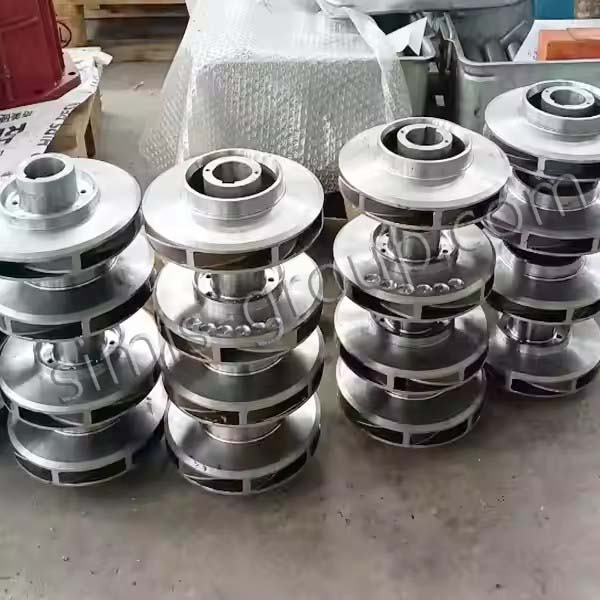

| Stainless Steel (304/316/Duplex) | Superior corrosion, erosion, and cavitation resistance; high strength. | Chemical pumps, food processing, wastewater treatment, and high-pressure fluid handling. |

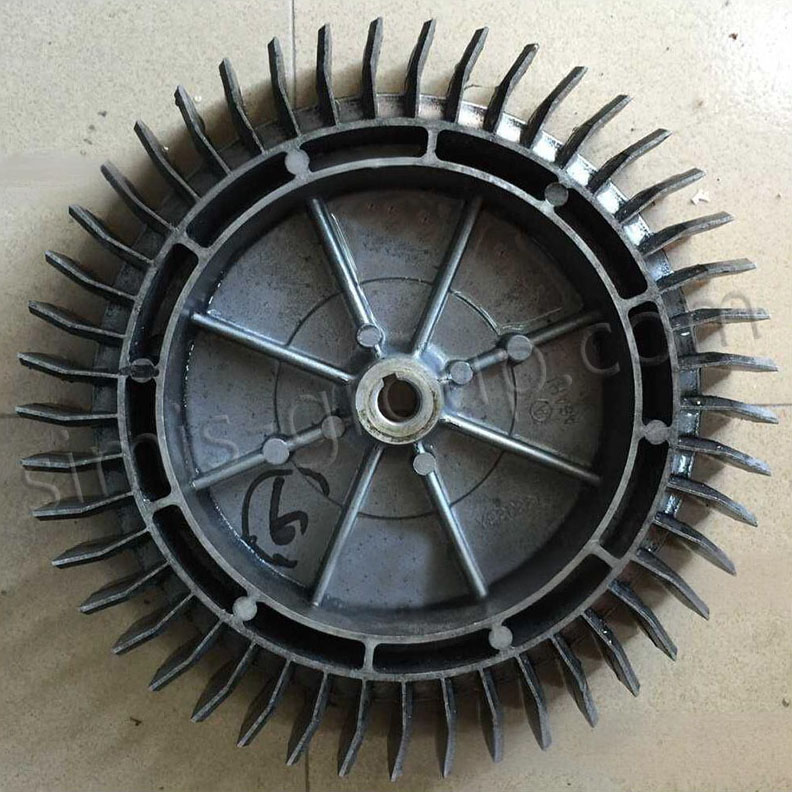

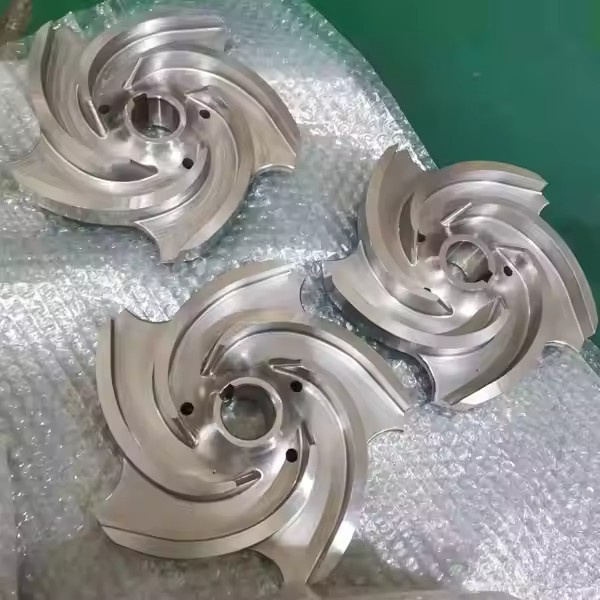

| Alloy Steel | High Yield Strength & Fatigue Resistance. Can be heat-treated for specific hardness. | High-Head Pumps, High-Pressure Compressors, and demanding industrial turbines. |

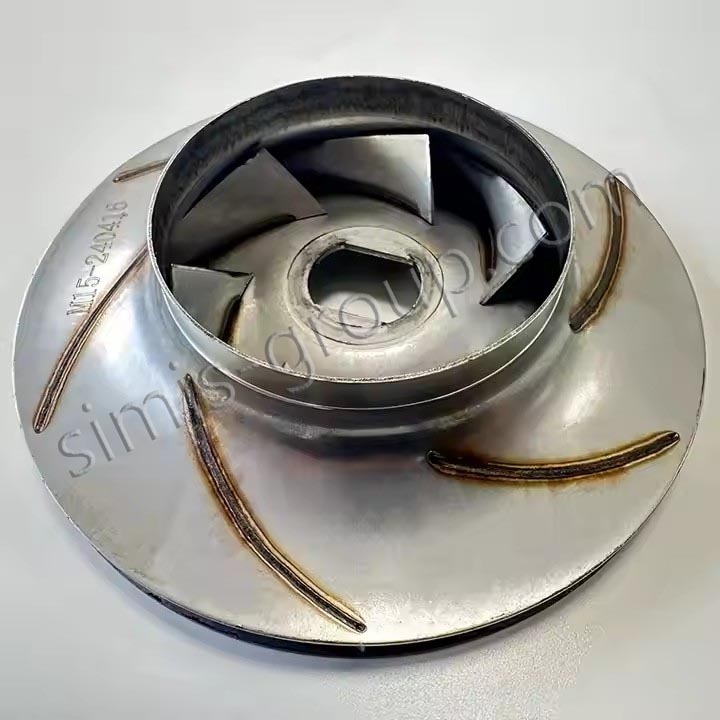

| Carbon Steel | High Mechanical Strength and cost-efficiency. | High-Pressure Water Pumps and general industrial fluid transport. |

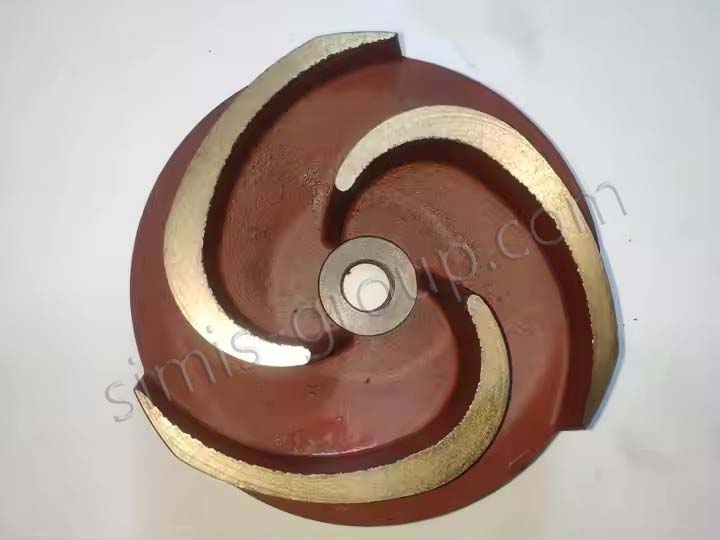

| Ductile Iron | Good strength and toughness; Cost-effective alternative for non-corrosive fluids. | Municipal water distribution, drainage, fire suppression systems, and low-pressure industrial pumps. |
| Gray Iron | Excellent Vibration Damping and cost-efficiency. | Standard HVAC pumps and low-pressure fluid transport. |
| High-Chrome Cast Iron | Extreme Hardness (HRC 60+). | Mining Slurry Pumps and dredging (via $\text{Sand Casting}$). |

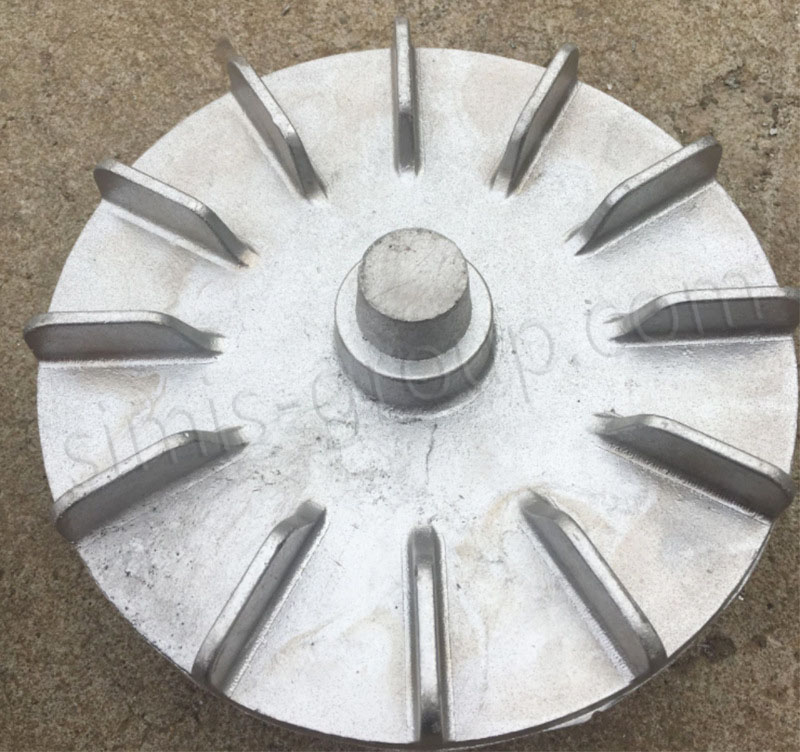

| Aluminum Alloy | Extreme lightweighting, good thermal conductivity. Essential for high-speed compressor/turbo applications. | Automotive water pumps, supercharger/turbocharger compressor wheels, and aerospace fluid systems. |

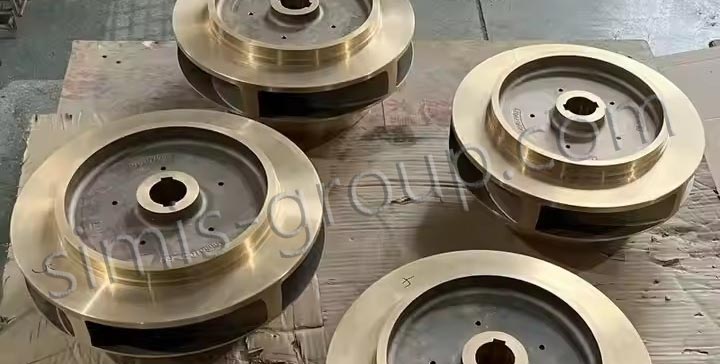

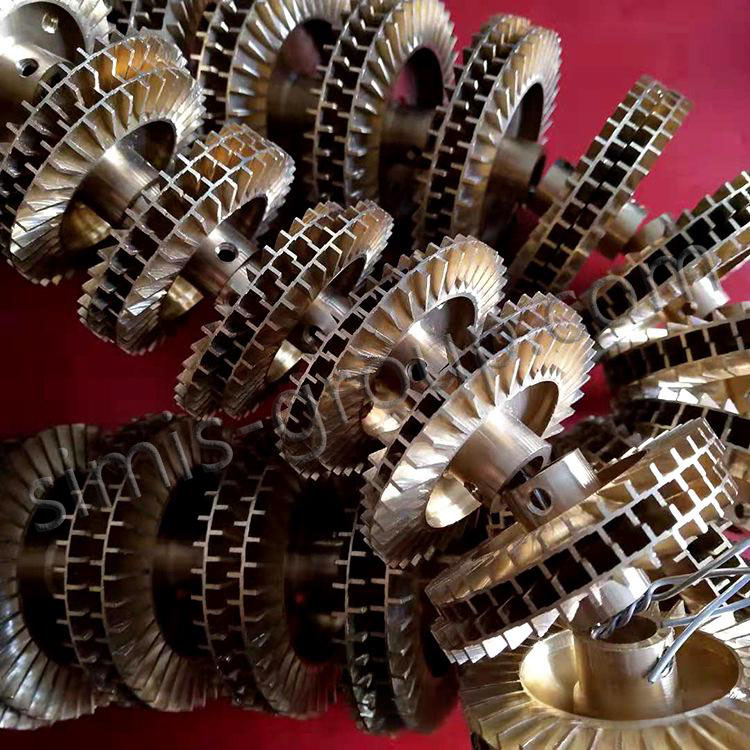

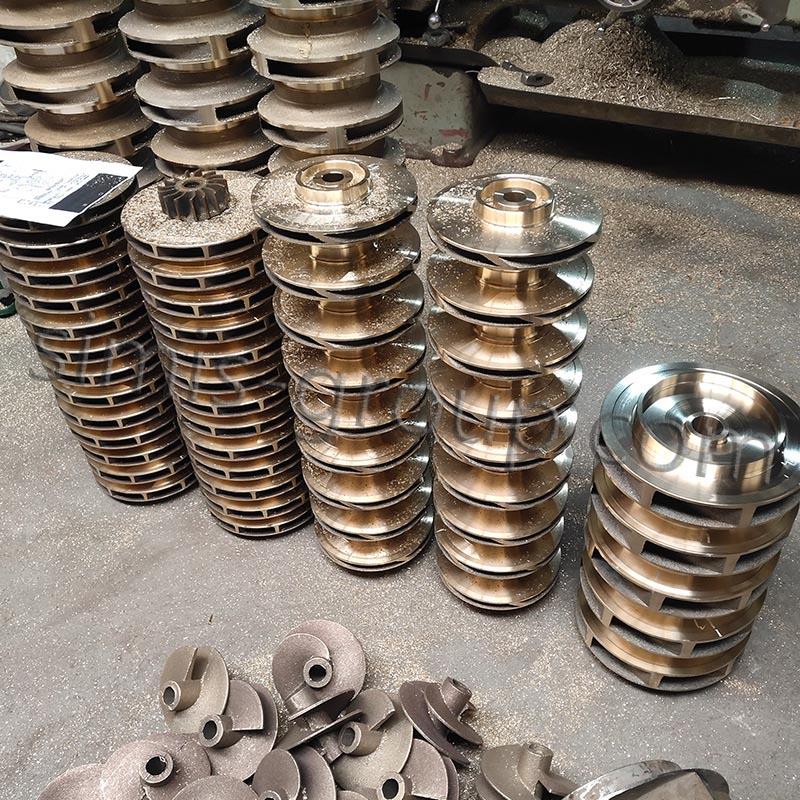

| Copper Alloy | Excellent corrosion resistance in saltwater/brine environments, good anti-spark properties. | Marine pumps, fire suppression systems, and specialized handling of certain aggressive fluids. |
What Are the Critical Impeller Post-Processing and Quality Assurance Measures?
Precision in an impeller extends far beyond casting. We focus on critical post-processing steps to ensure fluid performance and reliability:
·High-Precision CNC Machining:
Ensuring accurate bore sizes, shaft mounting interfaces, and critical tip diameters.
·Dynamic Balancing (ISO Grades):
Every high-speed impeller undergoes multi-plane dynamic balancing to meet stringent ISO standards, minimizing vibration, noise, and bearing wear.
·Surface Finish Optimization:
Polishing and surface treatment to reduce friction loss and maximize hydraulic efficiency.
·NDT (Non-Destructive Testing):
Employing liquid penetrant and ultrasonic testing to verify structural soundness, especially critical for high-pressure components.
What Are the Key Application Areas of Custom-Manufactured Impellers?
Our custom-manufactured impellers are essential flow control elements used across demanding industries where performance, reliability, and specific material resistance are critical.
| Application Sector | Typical Component | Core Performance Needs | Simis Material/Process Focus |
| Oil & Gas | Centrifugal Pump Impellers, Submersible Pump Stages, Compressor Wheels. | High Pressure/Flow, Corrosion Resistance, H2S/CO2 Tolerance. | Stainless Steel (Investment Casting), Alloy Steel (Sand Casting). |
| Municipal & Water Treatment | Large Volume Water Impellers, Sewage Pumps. | Cost-Efficiency, High Flow Rate, Structural Strength (Ductile Iron). | Ductile Iron (Sand Casting), Stainless Steel (for higher corrosion). |
| Aerospace | Turbocharger Compressor Wheels, Fuel Pump Impellers. | Extreme Lightweighting, High RPM Tolerance, Thermal Stability. | Aluminum Alloy (Die Casting/Permanent Mold), Stainless Steel (Investment Casting). |
| Marine & Shipbuilding | Seawater Cooling Pump Impellers, Propulsion Jets. | Superior Saltwater Corrosion Resistance, Cavitation Resistance. | Copper Alloy (Permanent Mold/Sand Cast), Stainless Steel (Investment Casting). |
| Mining & Construction | Slurry Pump Impellers, Dredging Pump Impellers. | Extreme Abrasion/Erosion Resistance, High Structural Strength. | Alloy Steel (Sand Casting). |
What Are the Advantages of Simis OEM Custom Impeller Manufacturing?
Choosing Simis for OEM custom impeller manufacturing provides crucial engineering and commercial benefits:
·Optimized Hydraulic Efficiency:
Our engineers work directly with your design to optimize vane angles and profiles based on your specific flow rate and head requirements, leading to significant energy savings.
·Elimination of Cavitation:
Custom material selection and smooth surface finishes are designed to minimize cavitation damage, dramatically extending the component's lifespan.
·Perfect System Balance:
Dedicated dynamic balancing services ensure the impeller integrates perfectly into your pump or fan system, preventing destructive vibration and bearing failure.
·Integrated Manufacturing:
Managing both casting and precise dynamic balancing in-house ensures seamless quality control from raw material to final component.
·Global Compliance:
We adhere to major international standards (ASTM, ISO, API) relevant to material testing and impeller balancing.
How to Get a Quote for Custom Impellers?
China Simis Company is your specialized partner for high-precision Impeller manufacturing, offering reliable casting and machining solutions to meet the demanding requirements of fluid efficiency, dynamic balance, and corrosion resistance for both high-end and cost-effective applications.
Please submit your 2D technical drawings, CAD models, required material and process (e.g., Stainless Steel Investment Cast or Ductile Iron Sand Cast), critical dynamic balance tolerance, and expected annual volume to our engineering department for a consultation and detailed quotation.
