Custom Aluminum Bronze Butterfly Valve Manufacturer

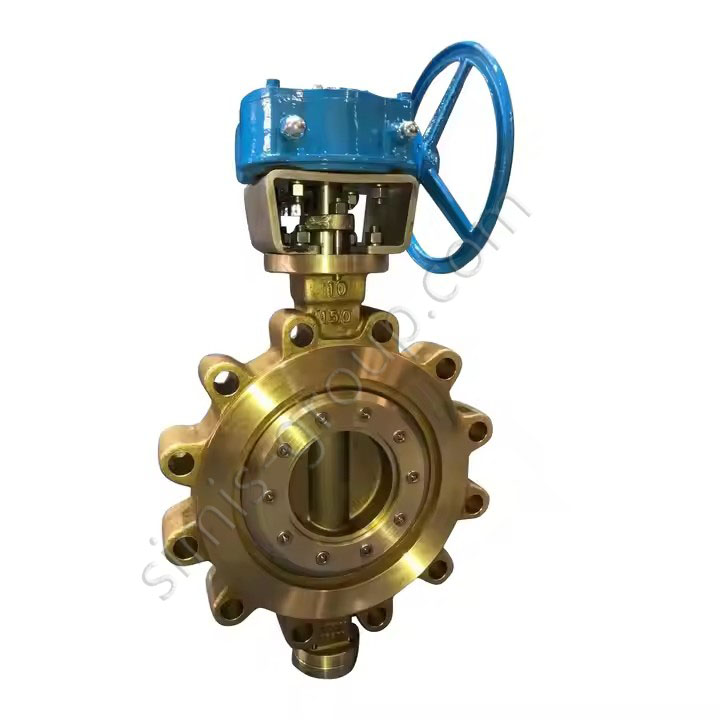

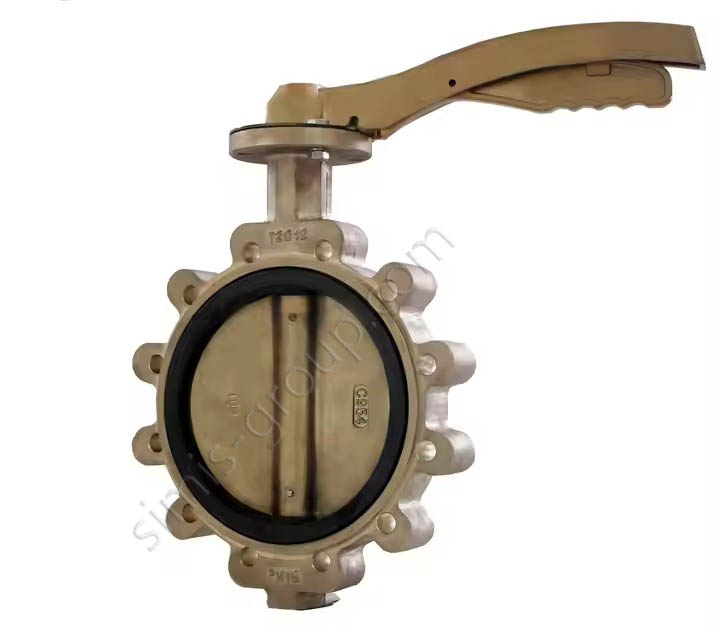

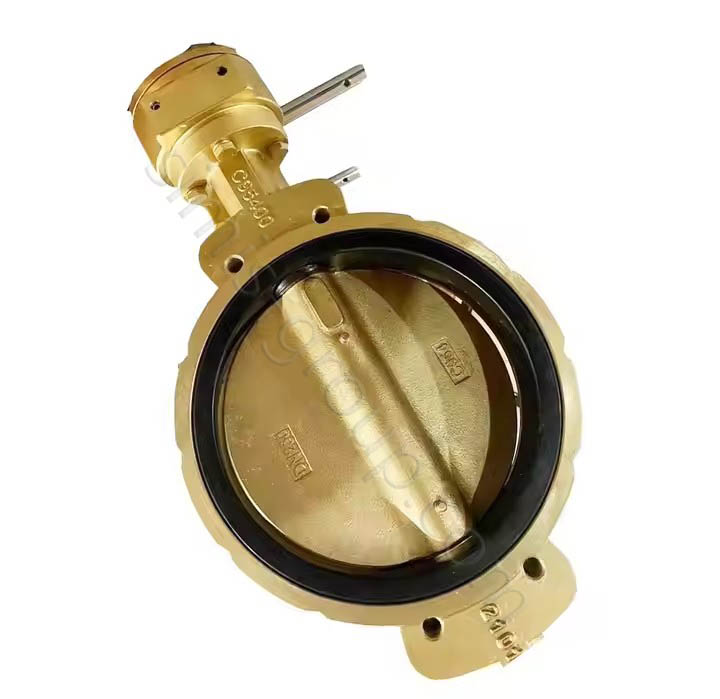

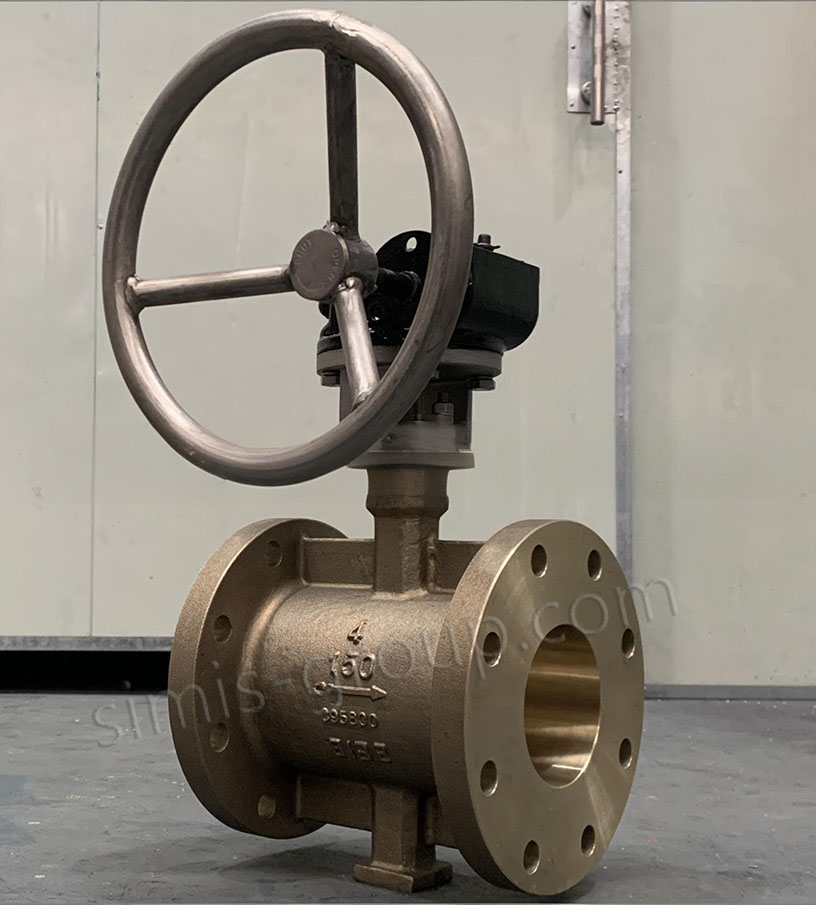

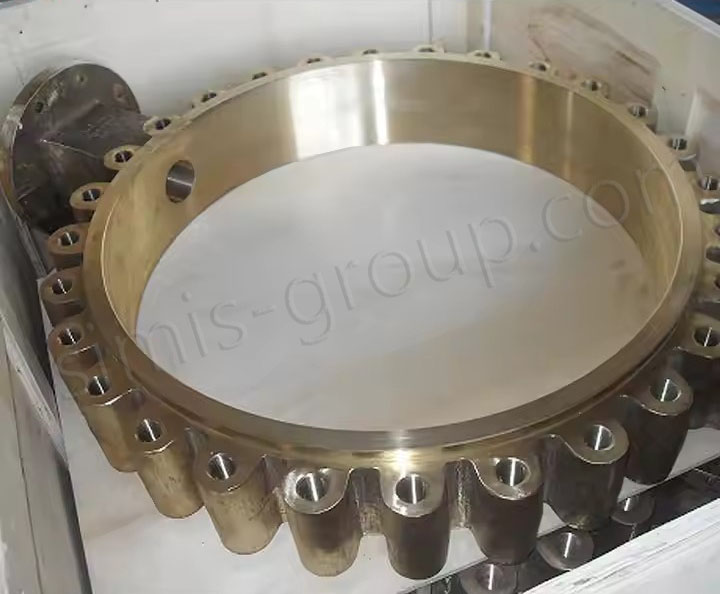

Aluminum Bronze Butterfly Valve
China Simis Company specializes in the Custom Aluminum Bronze Casting and precision manufacturing of Butterfly Valves. These high-performance valves are engineered for severe-duty fluid control applications where standard materials fail due to aggressive media, high flow rates, and high temperatures.
Aluminum Bronze alloys (C95500, C95800) are chosen for their superior resistance to general corrosion, cavitation, and erosion, making them ideal for handling saltwater, specific chemicals, and high-velocity fluids. We utilize advanced casting methods, including Sand Casting and Shell Mold Casting, followed by precision CNC machining, to guarantee the metallurgical soundness, precise sealing integrity, and dimensional accuracy required for critical control systems in power generation, chemical processing, and desalination plants.
What Are the Component Classifications of Aluminum Bronze Butterfly Valves?
The components of Aluminum Bronze Butterfly Valves manufactured by China Simis Company are classified into five functional categories based on their roles in pressure containment, flow control, actuation, operation, and sealing: Pressure Boundary Components, Flow Control & Sealing Elements, Actuation & Motion Components, External Operation Components, and Gaskets & Fasteners. Each category is designed with specific material requirements to ensure optimal performance in severe-duty fluid control applications.
| Category | Component Examples | Primary Function | Material Requirements |

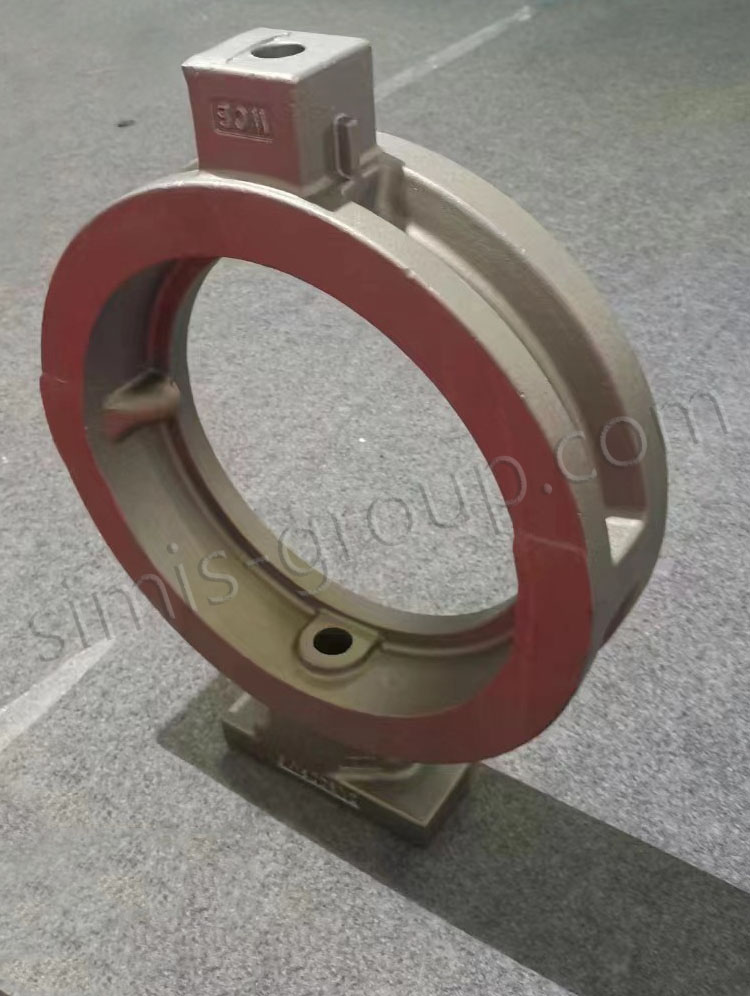

| Pressure Boundary Components | Body (Wafer, Lug, Flange), Bonnet/Yoke | Contains the process fluid and maintains pressure integrity against the external environment; connects the valve to the pipeline. | High Strength, Cast Soundness (low porosity), Corrosion Resistance (Aluminum Bronze/Coated Ductile Iron). |
| Flow Control & Sealing Elements | Disc (Blade), Seat/Liner (Resilient or Metal) | Rotates to modulate or stop fluid flow, ensuring high-integrity shutoff when closed. | Excellent Corrosion/Erosion Resistance (Aluminum Bronze), Sealing Resilience (EPDM/PTFE for soft seats). |
| Actuation & Motion Components | Stem (Shaft), Stem Bushings/Bearings, Key/Pin | Transmits torque from the actuator to the disc, changing valve position and resisting lateral thrust from the medium. | High Torsional Strength, Straightness, Low Friction, Corrosion Resistance (316L SS or Aluminum Bronze). |
| External Operation Components | Actuator (Manual Lever, Gearbox Housing), Adapter/Bracket | Provides the mechanical means for controlling the valve position (manual, pneumatic, or electric). | Structural Strength, Environmental Resistance (Coated Cast Iron/Steel), Accurate Torque Transfer. |
| Gaskets & Fasteners | Flange Gaskets, Stem Packing, Bolts/Nuts | Ensures leak-free seals between connected parts and prevents external leakage around the stem. | High Hardness, Pressure/Temperature Resistance, Extreme Corrosion Resistance (Fasteners often 316L SS). |
What are the manufacturing processes for aluminum bronze butterfly valves?
To ensure the durability, metallurgical soundness and dimensional precision of Aluminum Bronze Butterfly Valves, China Simis Company adopts a five-step manufacturing process system: Sand Casting, Shell Mold Casting, Investment Casting (Lost-Wax), Precision CNC Machining, and Non-Destructive Testing (NDT). Each process is strategically applied to specific valve components according to their size, complexity and performance requirements, with the goal of eliminating internal defects and achieving bubble-tight sealing.
| Manufacturing Process | Material Focus | Key Advantage for Aluminum Bronze Valves | Specific Process Detail |

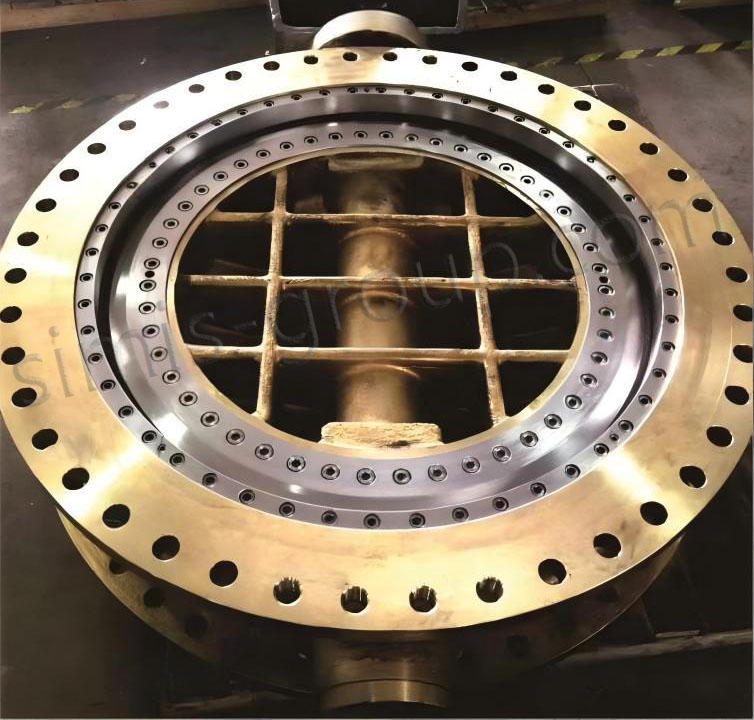

| Sand Casting | Aluminum Bronze, Copper Alloys. | Cost-Effective for Large/Heavy Bodies. Used for casting the main valve body (flange type) for large bore sizes where material mass is required. | Controlled melting and pouring to minimize thermal cracking and porosity in thick sections. |
| Shell Mold Casting | Aluminum Bronze, Stainless Steel. | Superior Surface Finish and Closer Tolerance. Ideal for medium-sized valve bodies (wafer/lug types) and discs, reducing machining on critical sealing faces. | Provides better dimensional control than Sand Casting, resulting in less CNC time on critical sealing and flange faces. |
| Investment Casting (Lost-Wax) | Aluminum Bronze, Stainless Steel. | High Dimensional Accuracy for Complex Trim. Used for small, intricate internal components or actuator mounts requiring detailed features. | Reduces machining required on intricate internal flow pathways and complex profiles. |

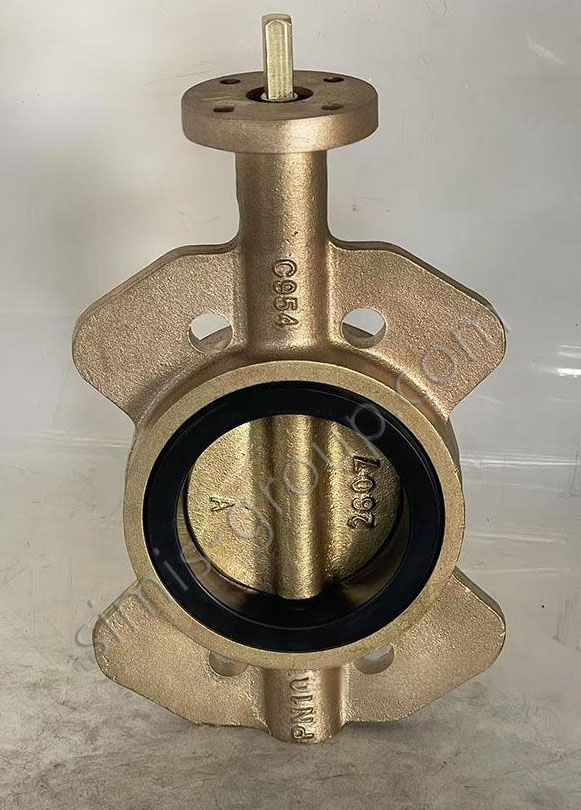

| Precision CNC Machining | Aluminum Bronze. | Achieving Critical Seating and Alignment. Mandatory for the bore, disc seating surfaces, and flange interfaces to ensure a bubble-tight seal. | Ensures perfect flatness of the disc/seat interface and accurate alignment for double eccentric valves. |
| Non-Destructive Testing (NDT) | Final Casting. | Verification of Casting Soundness. Required to ensure freedom from critical internal defects and guarantee pressure boundary integrity. | Typically performed via Radiography (RT) or Ultrasonic Testing (UT). |
How to Select Materials for Butterfly Valves?
Material selection for Aluminum Bronze Butterfly Valves is determined by three core performance requirements: corrosion resistance, erosion resistance and mechanical strength, with a focus on matching materials to the specific operating conditions of each component. China Simis Company primarily uses three material types for valve manufacturing: Aluminum Bronze (C95500/C95800), Coated Ductile Iron and Stainless Steel (316L), each optimized for different component functions and application environments.
| Material Type | Primary Performance Focus | Typical Valve Component Use |
| Aluminum Bronze (C95500/C95800) | Exceptional Corrosion, Cavitation, and Erosion Resistance; High Strength. | Valve Body, Disc, Stem. (The primary material for components wetted by aggressive fluids). |
| Ductile Iron (Coated) | High Strength, Cost-Effective. | Actuator Mounts, External Yokes (Components not in contact with the process fluid). |
| Stainless Steel (316L) | Corrosion Resistance for Trim. | Shafts, Pins, Internal Fasteners (Used where maximum hardness is needed). |
What Quality Assurance Measures Ensure Casting Integrity and Pressure Performance of Aluminum Bronze Butterfly Valves?
To ensure the casting integrity and pressure performance of Aluminum Bronze Butterfly Valves, China Simis Company implements a four-dimensional quality assurance system covering casting soundness verification, dimensional inspection, pressure testing and material certification, all aligned with international industry standards such as API and ASME to guarantee product reliability in severe-duty applications.
·Casting Soundness Verification:
Regular use of NDT methods (RT/UT) on production runs to confirm the absence of porosity or internal shrinkage in the Aluminum Bronze pressure boundary castings.
·Dimensional Inspection:
CMM verification of the disc edge profile, bore dimensions, and seating surface flatness, crucial for achieving zero-leakage performance.
·Pressure Testing:
Hydrostatic Shell Test (to verify body integrity) and Seat Leakage Test (to verify sealing performance) performed on every valve assembly per required standards (API 598 or equivalent).
·Material Certification:
Full MTR (Material Test Report) provided, confirming that the Aluminum Bronze chemical composition and mechanical properties comply with ASTM or client-specific specifications.
What Are the Key Application Areas of Aluminum Bronze Butterfly Valves?
Aluminum Bronze Butterfly Valves manufactured by China Simis Company are primarily applied in four key severe-duty sectors: Power Generation, Chemical Processing, Desalination & Water Treatment, and Marine & Offshore. Each application sector requires customized valve types and end connections to address specific operational challenges such as cavitation, chemical corrosion and high-velocity fluid erosion.
| Application Sector | Typical Valve Type Focus | Primary Challenge | Recommended End Connection |
| Power Generation | Cooling Water Intake, Condenser Lines. | High Volume Flow, Cavitation, Erosion. | Flange Type, Double Eccentric. |
| Chemical Processing | Non-Ferrous Media Handling, Corrosive Slurries. | Chemical Attack, Abrasive Wear. | Lug or Flange Type. |
| Desalination & Water Treatment | Brine Discharge, Seawater Intake. | Extreme Salinity, Pitting Corrosion. | Wafer or Lug Type. |

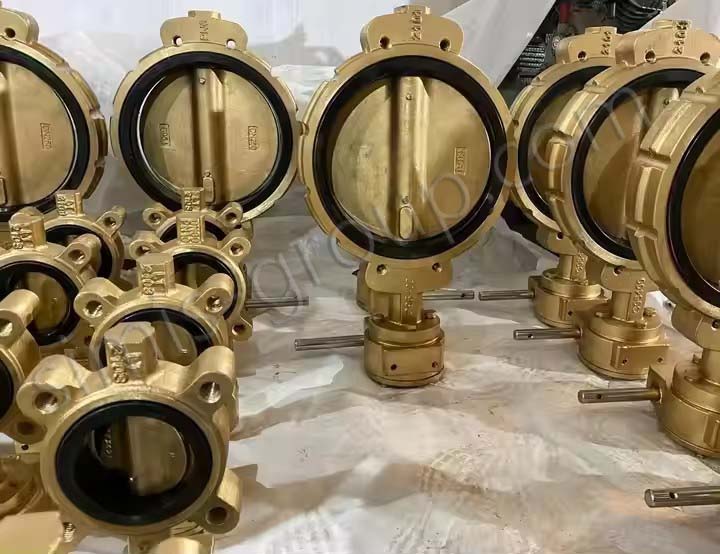

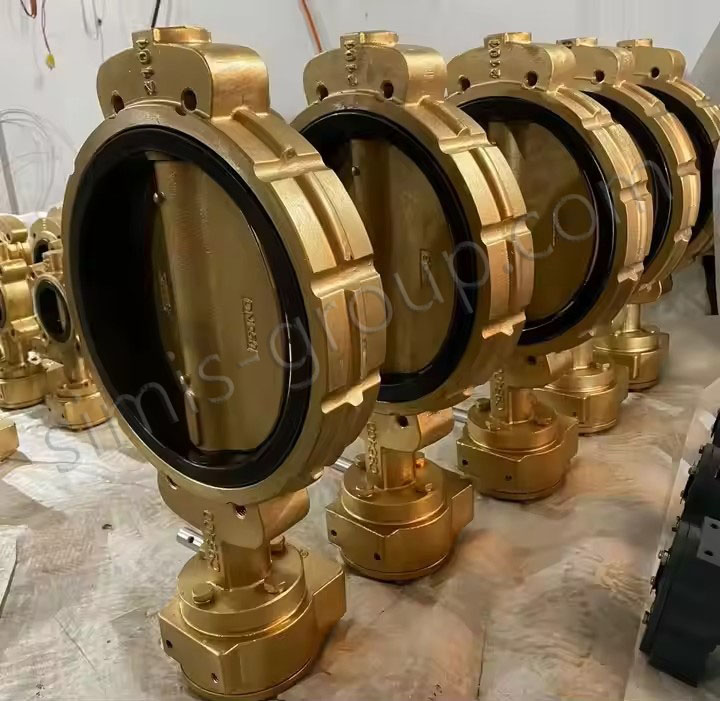

| Marine & Offshore | Ballast Systems, Fire Protection. | Saltwater Immersion, High Integrity Shutoff. | Wafer, Lug, or Flange Type. |
What Are the Advantages of Simis Custom Aluminum Bronze Butterfly Valve?
The advantages of Simis custom Aluminum Bronze Butterfly Valve manufacturing lie in four core competencies: metallurgical mastery of Aluminum Bronze, enhanced casting precision with shell molding, severe-duty sealing capability and custom configuration flexibility, all of which enable us to deliver high-performance valve solutions that meet the most demanding industrial fluid control requirements.
·Metallurgical Mastery of Aluminum Bronze:
We possess deep expertise in controlling the precise alloying and casting temperatures of Aluminum Bronze, which is critical for achieving optimal grain structure and maximizing corrosion/erosion resistance.
·Enhanced Casting Precision with Shell Molding:
We strategically use Shell Molding for medium-sized components to achieve superior surface finishes and tighter dimensional tolerances, minimizing expensive CNC machining time on critical sealing areas.
·Severe-Duty Sealing:
Our integrated CNC machining ensures the ultra-precise tolerances on the disc and seat interfaces necessary to achieve ANSI Class VI (bubble-tight) or equivalent sealing in challenging media.
·Custom Configuration Flexibility:
We can accommodate diverse body styles (wafer, lug, flange, double eccentric) and material combinations, including specialized Ni-Al-Bronze grades, to match non-standard system requirements.
How to Get a Quote for Custom Aluminum Bronze Butterfly Valves?
China Simis Company is your expert manufacturer for custom Aluminum Bronze Butterfly Valves, providing certified casting quality and precision machining designed for exceptional corrosion resistance and reliable fluid control in the most demanding industrial and offshore environments. To obtain a detailed and accurate quotation for your custom valve project, please submit the following technical documents and parameters to our engineering department: 2D technical drawings or 3D CAD models, required size (DN/NPS), pressure class, end connection type (wafer, lug, flange), specific process fluid, operating temperature and expected production volume. Our professional team will review your requirements promptly and provide a comprehensive quotation including pricing, lead time and technical specifications.
