Custom Fuel Nozzle Body Manufacturer
Fuel Nozzle Body
Frequently Asked Questions About Custom Fuel Dispensing Nozzle Bodies
What custom fuel dispensing nozzle bodies does SIMIS supply?
SIMIS supplies custom metal components such as automatic fuel nozzle housings, manual fuel gun bodies, trigger guards and handle frames. Products follow the customer drawings and the agreed supply condition. SIMIS provides individual metal components and specified subassemblies rather than assuming responsibility for complete equipment.
Can SIMIS make custom fuel dispensing nozzle bodies from my drawings?
Yes. The manufacturing scope is based on customer-supplied 2D drawings, available 3D CAD models, specified materials and order quantities. Custom castings, forgings or finished metal components can be considered according to the design and production requirements.
What materials can be used for custom fuel dispensing nozzle bodies?
Material options for suitable projects include aluminum casting alloys, selected stainless steel casting grades, suitable carbon or alloy steel components, customer-specified metals compatible with the intended product. The actual alloy grade and manufacturing condition are specified by the customer; materials are not automatically interchangeable across different applications.
Which casting and forging processes are available?
Depending on the component and customer requirements, manufacturing options include aluminum pressure die casting, gravity permanent mold casting, investment casting. Each manufacturing quotation reflects the particular drawing, required material and production volume. Secondary operations are supplied only to the extent requested by the customer.
How do I request a quotation for custom fuel dispensing nozzle bodies?
Please email the component drawing or CAD file, material specification, required quantity and desired supply condition to info@simis-group.com. Where the customer requires machining, heat treatment, finishing, inspection or assembly, those requirements can be included in the drawing or RFQ.
OEM Custom Fuel Dispensing Nozzle Bodies Made to Customer Drawings
Fuel dispensing nozzle bodies are metal components used in fuel filling equipment. SIMIS manufactures customer-defined cast nozzle housings, handle bodies and related metal components for refuelling equipment. We supply castings and specified finished metal parts, rather than complete calibrated or certified dispensing nozzles.
SIMIS provides OEM casting and forging manufacturing for metal parts used in customer-specific machinery and equipment. Production can cover the casting or forging blank, a finished metal component or an agreed mechanical part set. The material, drawings, order quantities and delivery condition are established by the purchase specification.
This page introduces the principal parts that may be supplied, the available metal-forming routes and the industries that use them. Rather than offering a universal specification, SIMIS manufactures each project according to the technical requirements provided by the OEM.
Types of Custom Fuel Dispensing Nozzle Bodies and Related Metal Parts
Our product range includes individual metal components for different equipment models. The table below describes typical OEM product categories, not fixed off-the-shelf sizes. Customers can submit drawings for other compatible forms and custom dimensions.
| Custom component | Typical OEM product description |
|---|---|

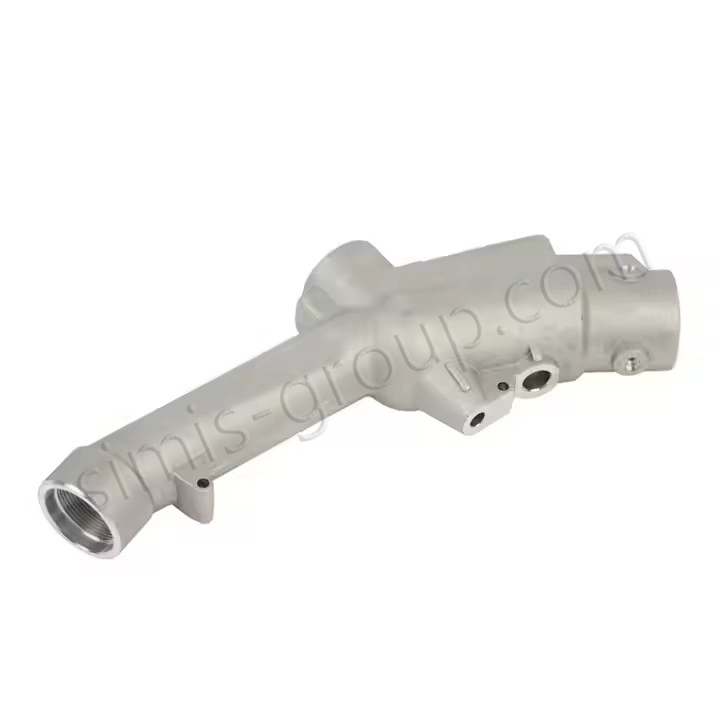

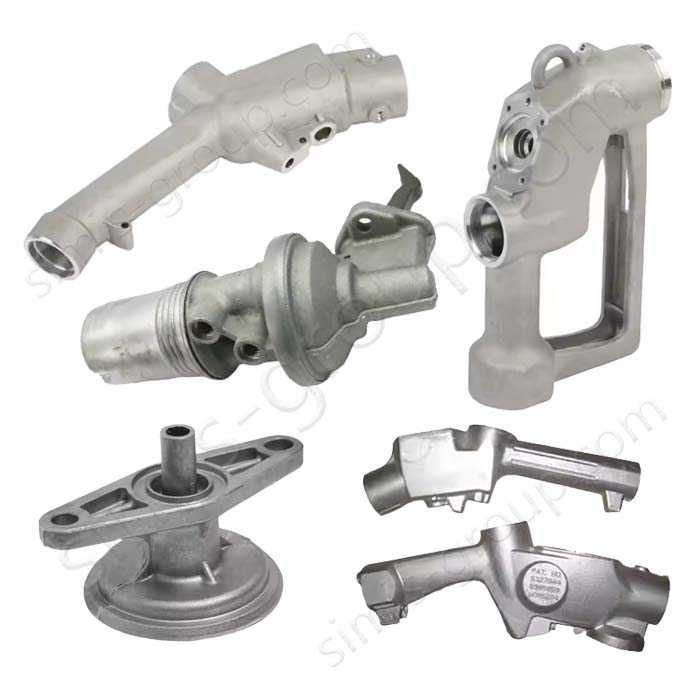

| Automatic fuel nozzle housings | Metal body castings for suitable automatic shut-off dispensing gun designs. |

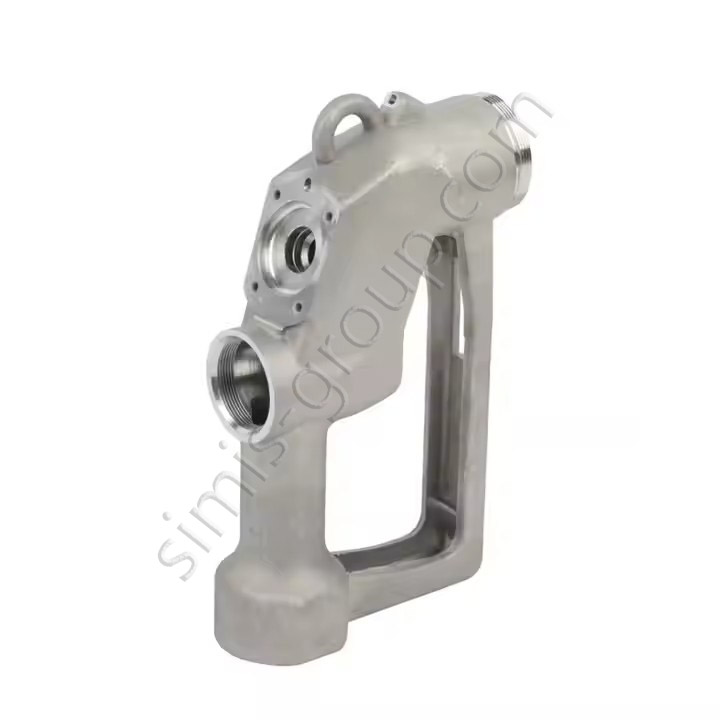

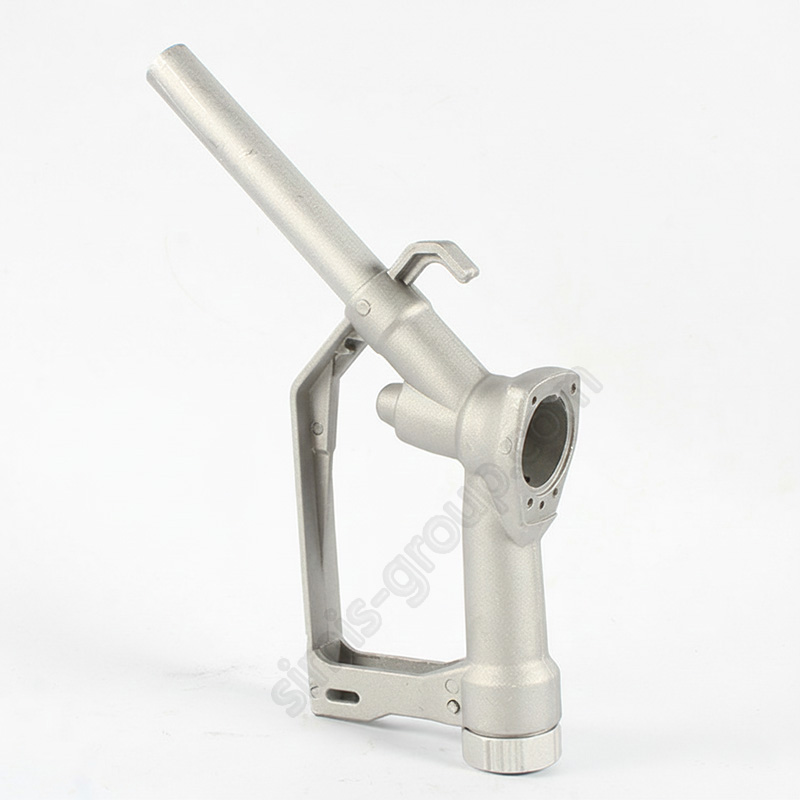

| Manual fuel gun bodies | Cast handles and nozzle support housings for manual refuelling equipment. |
| Trigger guards and handle frames | Custom structural guards and grip-area metal components. |

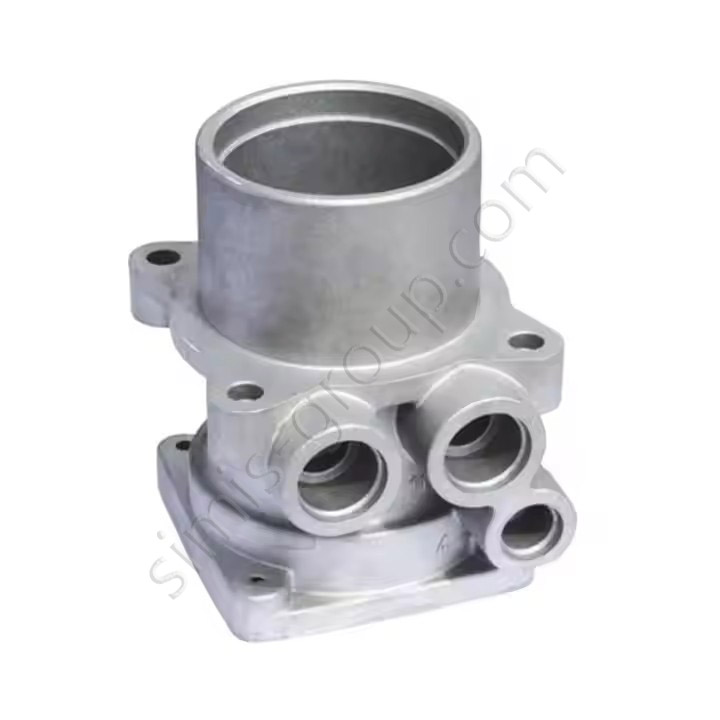

| Spout and connection support bodies | Specified metal components used around fuel dispenser connections. |
| Special-purpose dispensing housings | OEM-specific housings for compatible industrial or vehicle refuelling applications. |
Component geometry, material grade and manufacturing condition vary between orders. SIMIS supplies customer-specific castings and forgings for both new equipment programs and suitable replacement-part production.
Related SIMIS product manufacturing capabilities include vehicle metal parts. These may support compatible OEM programs using similar metal components.
Casting, Forging and Metal Manufacturing Processes for Custom Fuel Dispensing Nozzle Bodies
SIMIS supplies a range of customer-specified castings, forgings and other compatible metal components for this product category. Each manufacturing method is introduced below to show the kinds of OEM parts that can be supplied. The actual manufacturing process and required supply condition follow the customer’s approved drawings and order requirements.
| Manufacturing process | Typical custom parts and applications |
|---|---|
| Aluminum pressure die casting | Repeat-production fuel nozzle bodies and integrated handle or guard features. |
| Gravity permanent mold casting | Suitable aluminum nozzle housings and connection bodies. |
| Investment casting | Selected stainless steel or alloy steel nozzle components. |
| Sand casting | Larger or specialized compatible metal bodies when required. |

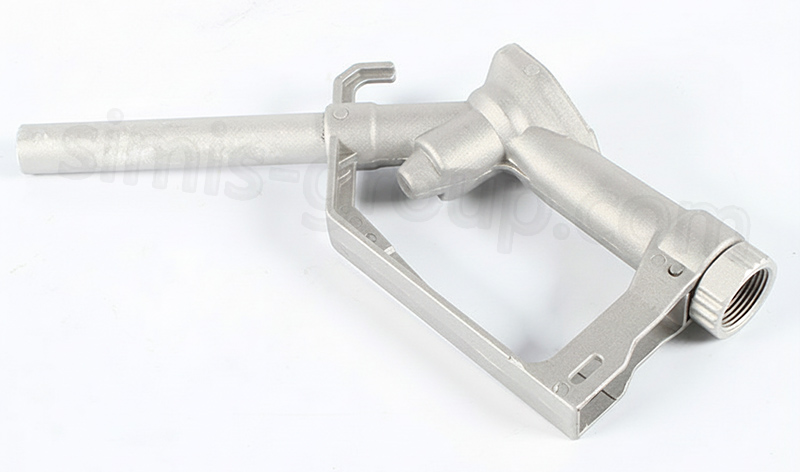

Aluminum Die-Cast Fuel Nozzle Bodies
High-pressure aluminum die casting is relevant to many dispensing nozzle bodies and handle-frame castings made in repeat batches. The cast component may include internal passage forms, trigger-guard geometry and external mounting features, depending on the part drawing. SIMIS supplies the metal body and related parts; it does not imply delivery of the complete automatic shut-off nozzle.

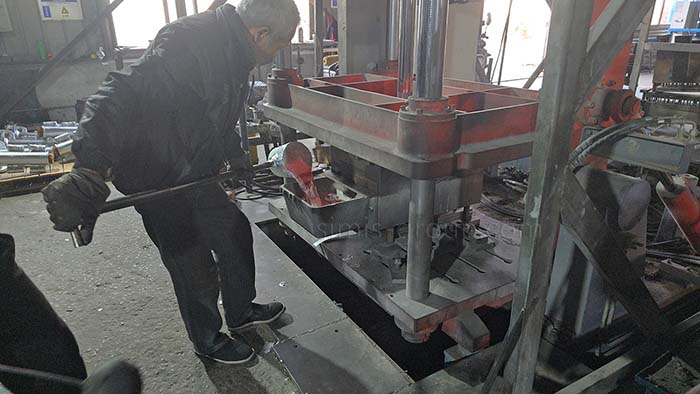

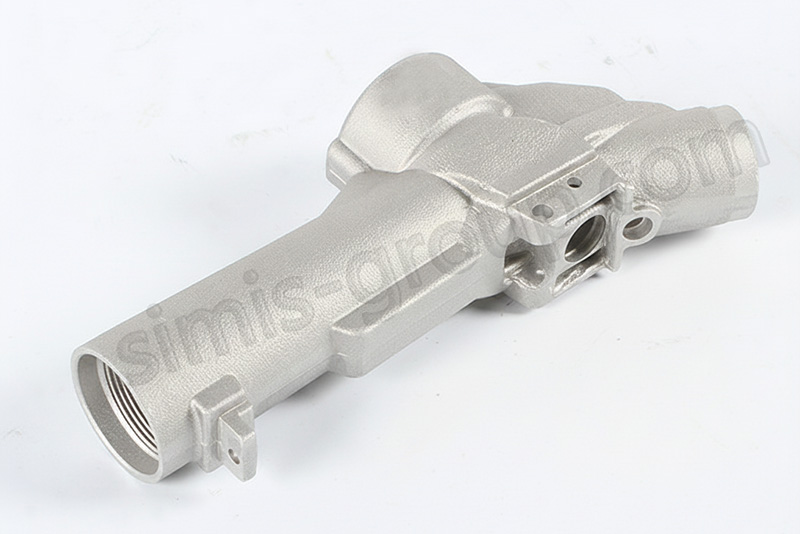

Gravity Casting for Selected Aluminum Housings
Gravity permanent mold casting can be quoted for suitable alternative aluminum nozzle bodies and connector housings. The shape and production volume determine whether the customer’s proposed part is compatible with this casting process.

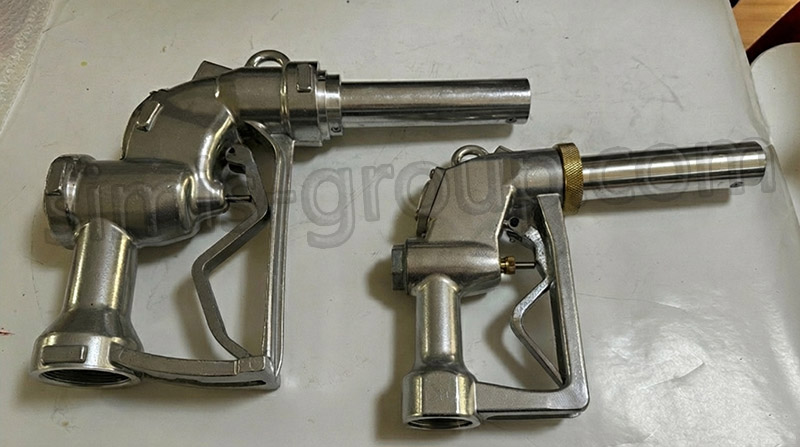

Steel and Stainless Steel Casting Options
Investment casting can be appropriate for selected stainless steel or steel dispensing equipment parts. Specialized larger bodies may also be considered for suitable sand casting. Manufacturing is based on material and drawings supplied by the customer; the complete dispensing assembly remains a separate product.
Related SIMIS manufacturing services: aluminum die casting, gravity permanent mold casting, investment casting. The service quoted for a particular part is determined from the customer’s specified material, drawing and production quantity.
Materials Used for Custom Custom Fuel Dispensing Nozzle Bodies
Different metal grades and product forms are used across these components. SIMIS manufactures suitable parts according to the alloy or material grade specified by the customer. The following material descriptions explain common product families and their manufacturing forms, without replacing a customer’s material specification.
Aluminum Alloys for Nozzle Body Castings
Aluminum casting alloys are commonly used for lightweight metal dispensing nozzle bodies. The alloy must match the customer’s chosen casting process and the intended component specification. The metal casting itself does not establish the fuel compatibility of seals, valves or complete dispensing equipment.
Stainless Steel for Selected Dispensing Components
Certain connector bodies or associated metal hardware may be produced from appropriate cast stainless steel grades. The cast product designation is different from the specifications for machined wrought stainless steel and should be stated precisely in the OEM purchase order.
Specialized Steel and Other Metals
Carbon steel, alloy steel or other customer-defined metals may be required for some industrial dispensing components. SIMIS supplies individual metallic parts according to the specified material and order scope, rather than assuming all fuel nozzle bodies share one material.
Material grade, manufacturing condition, machining, heat treatment, coating and inspection are included only as specified by the customer. We supply the agreed casting, forging or finished metal component, while the customer determines the requirements of the complete equipment.
Applications of Custom Fuel Dispensing Nozzle Bodies
These custom metal components serve different OEM industries and equipment models. The applications below illustrate where corresponding product types may be used; exact suitability is determined by the customer’s own equipment design.
Service station equipment
Custom metal bodies for OEM retail fuel dispensers. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Truck and fleet refuelling
Nozzle housing components for commercial vehicle filling equipment. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Agricultural and construction fueling
Metal refuelling parts used in equipment fueling systems. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Industrial fuel transfer
Custom components for specified industrial dispensing products. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Custom OEM Supply Scope and Ordering Information
As a custom metal parts supplier, SIMIS accepts manufacturing inquiries for castings, forgings and finished components produced to customer drawings. This includes suitable repeat-production programs as well as specified initial orders or sample quantities.
For an efficient quotation, please send the following basic information:
Product drawing: 2D engineering drawing or available STEP / 3D CAD model.
Specified material: Required alloy or grade and any approved material condition.
Order volume: Required quantity and anticipated repeat demand, if applicable.
Supply condition: Raw casting or forging, finished component or other processing explicitly requested in the drawing.
SIMIS will review the submitted product information and prepare a quotation for the agreed scope. The OEM remains responsible for specifying the relevant product interfaces, system-level performance and any required equipment approval.
For Custom Fuel Dispensing Nozzle Bodies and other OEM metal components, contact SIMIS: info@simis-group.com
