Custom Spray Nozzles & Heads Manufacturer

Frequently Asked Questions About Custom Metal Spray Nozzles and Heads

1. What types of custom metal spray nozzles can SIMIS manufacture?

SIMIS manufactures custom metal spray nozzles and related components for industrial and commercial equipment. Our OEM product range includes stainless steel spiral spray heads, flat fan nozzle bodies, full cone and hollow cone spray components, solid jet nozzles, brass nozzle fittings, Venturi-type components and specialized fluid-distribution parts. Manufacturing options include investment casting, suitable metal forging, copper alloy casting and CNC machining according to customer drawings and purchase specifications.

2. Can SIMIS produce stainless steel spray nozzles by investment casting?

Yes. Investment casting, also known as lost-wax casting, is an important manufacturing method for suitable stainless steel spray heads with complex external shapes, spiral deflectors, connecting sections and integrated mounting features. SIMIS provides custom stainless steel investment castings based on customer drawings. Small discharge holes, threads or other specified features may require additional manufacturing operations according to the purchased component's requirements.

3. What materials are available for custom industrial nozzles?

Common materials include 304, 316 and 316L wrought stainless steel; CF8, CF8M and CF3M cast stainless steel; suitable brass and bronze alloys; and selected carbon steel, alloy steel or aluminum alloys. Brass nozzles may be machined from suitable stock or manufactured from compatible forging or casting blanks. SIMIS supplies the materials specified by OEM customers, subject to the selected manufacturing process and product requirements.

4. Can nozzle dimensions, connections and spray configurations be customized?

Yes. SIMIS manufactures spray nozzle components to customer-supplied drawings, including specified nozzle shapes, dimensions, discharge openings, threaded connections, mounting arrangements and metal materials. Customers may require spiral, fan, cone, jet or other nozzle configurations for their equipment. Flow rate, spray angle, pressure rating and any other functional performance requirements are defined by the customer and included in the manufacturing scope where expressly agreed.

5. What information is needed for an OEM spray nozzle quotation?

Please provide 2D drawings or available 3D CAD files, the required nozzle type, material grade, overall dimensions, connection specifications and estimated order quantity. Where relevant, customers can also identify the operating fluid, specified working pressure and required spray configuration. SIMIS offers custom metal component manufacturing according to the approved drawings and agreed supply condition. Send your inquiry to info@simis-group.com.

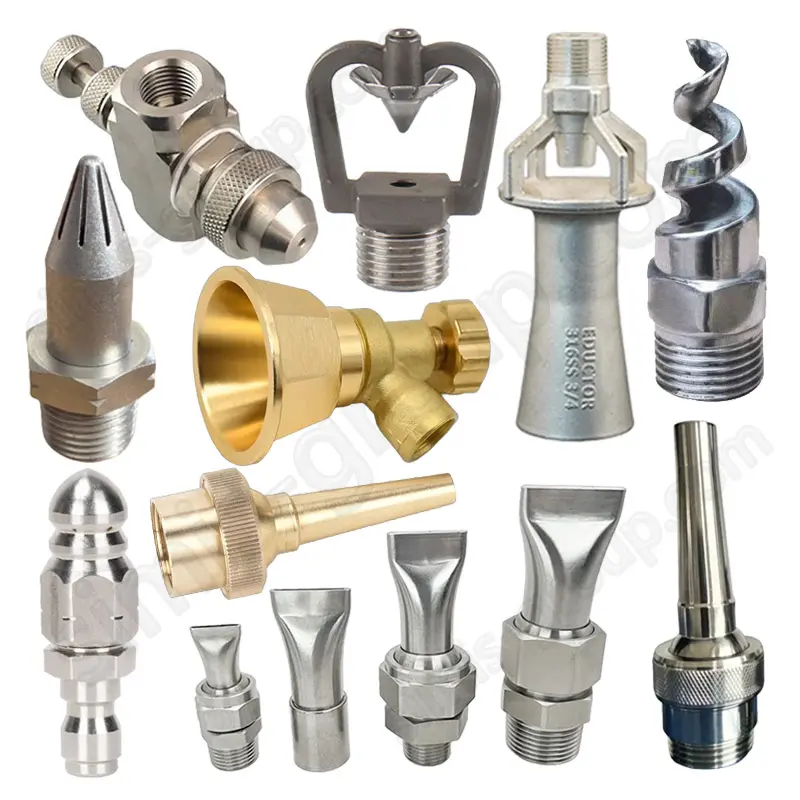

OEM Custom Metal Spray Nozzles and Spray Heads Manufacturer

Custom metal spray nozzles and heads are components used to direct liquids, distribute spray, produce a concentrated jet or create a specified spray pattern within industrial equipment. Different nozzle types are used for cleaning, cooling, irrigation, dust suppression, metal processing and other fluid-handling applications.

SIMIS specializes in OEM stainless steel spray nozzle castings, custom spiral spray heads, brass spray nozzle bodies, forged metal nozzle components and precision metal spray fittings. Our manufacturing services are intended for customers requiring metal parts produced according to their own drawings, material grades and purchase specifications.

Industrial spray nozzles are available in many shapes and constructions. Some have simple cylindrical bodies and threaded ends, while others contain helical deflectors, specially shaped outlets, internal flow passages or multiple connecting components. The appropriate metalworking method depends on the actual part construction and required material.

For suitable complex stainless steel nozzle bodies, investment casting can produce integrated external shapes and mounting features. Selected brass or steel nozzle bodies can be manufactured from compatible forging blanks or other metal stock. Larger fluid-distribution housings may use suitable casting processes, while certain simple threaded spray tips are manufactured primarily by machining.

SIMIS supplies customer-defined components rather than claiming that every nozzle is suitable for all fluids, pressures or spray applications. The purchased product may be a raw casting, a forged metal blank, a finished nozzle body or a specified mechanical assembly. Our wider manufacturing services cover custom industrial machinery metal parts used in different production equipment.

Types of Custom Industrial Spray Nozzles and Metal Spray Heads

Different industrial processes use different types of spray nozzles. SIMIS manufactures customer-specified metal nozzle components for several common spray configurations, including spiral, fan, cone, solid stream and air-assisted systems. The actual spray characteristics are defined by the approved product specification.

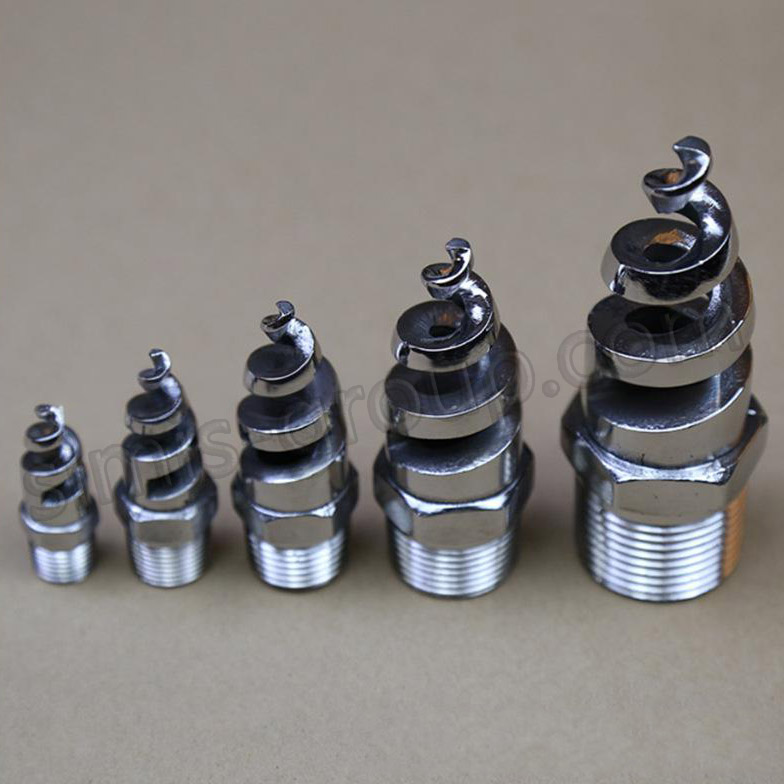

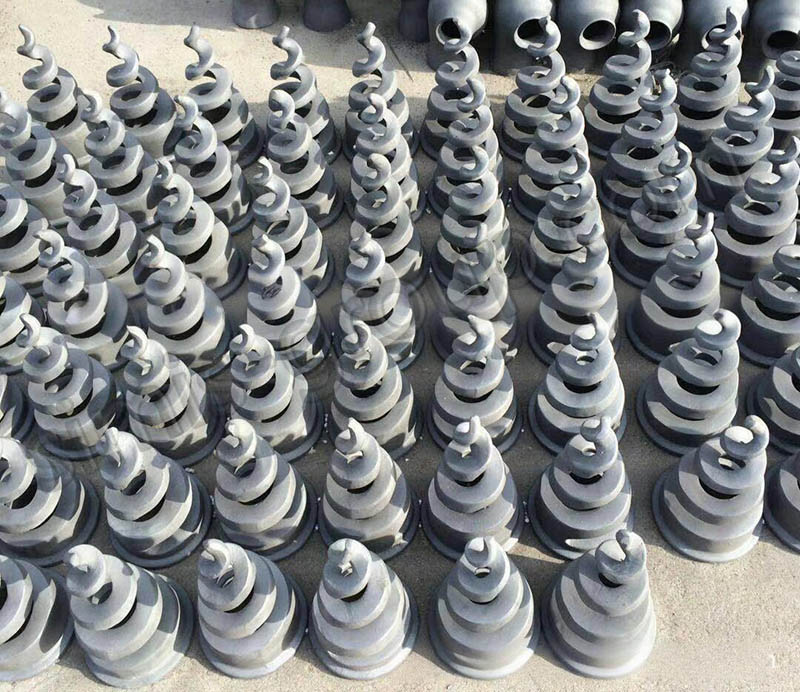

Stainless Steel Spiral Spray Nozzles

Stainless steel spiral spray nozzles are among the distinctive custom metal components suitable for precision casting. Their exposed helical surfaces form a series of deflecting features that distinguish them from ordinary cylindrical spray tips.

Investment casting can form suitable spiral sections and integrated connecting features in one near-net-shape metal component. This is useful where the customer requires curved external geometry and a specific stainless steel material. The thread and other finished features are provided according to the approved manufacturing drawing.

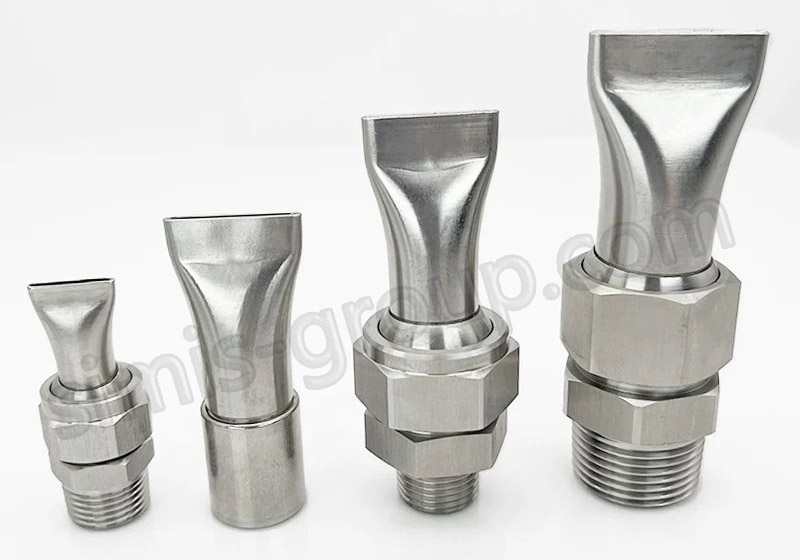

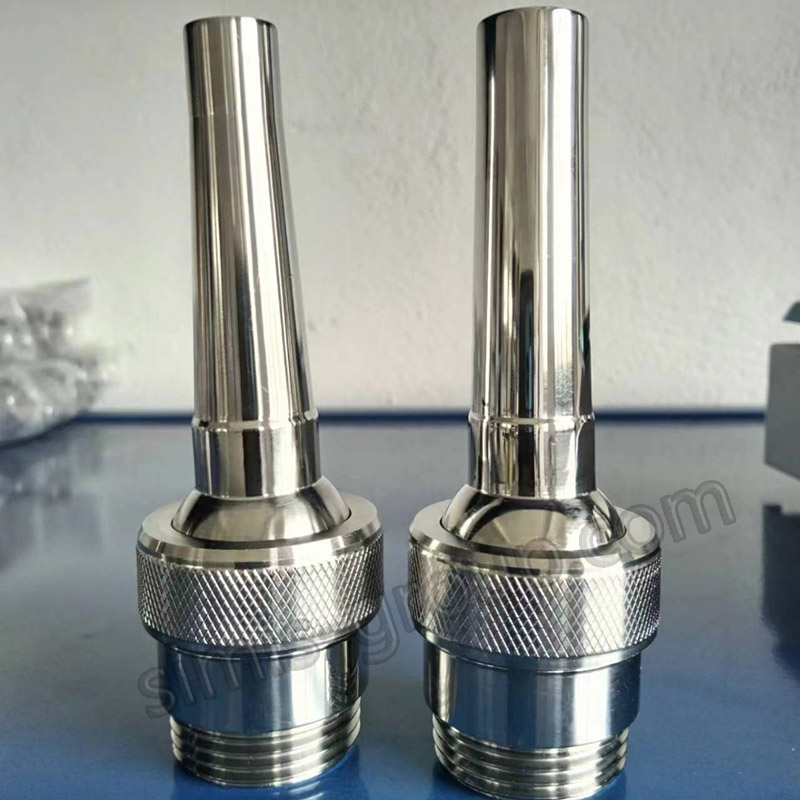

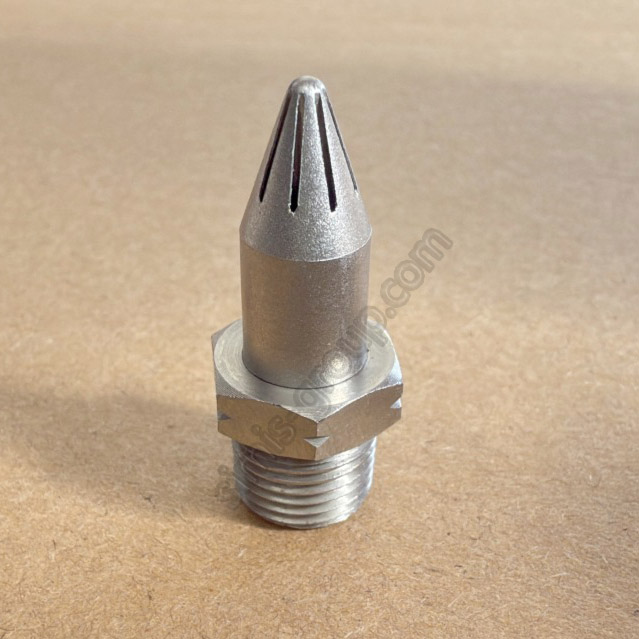

Fan Spray, Cone Spray and Jet Nozzle Bodies

Flat fan, full cone, hollow cone and solid jet nozzles can use different metal body constructions. Some are relatively simple machined components, while others contain cast housings, removable inserts, deflectors or threaded connection parts.

SIMIS manufactures suitable metal components for these nozzle types in the shapes and materials specified by the customer. Spray angle, discharge characteristics and any other performance requirements remain part of the approved product specification rather than universal characteristics of a particular casting process.

Investment Casting, Forging and Other Manufacturing Processes for Metal Spray Nozzles

Custom industrial spray nozzles are produced through several metalworking processes. SIMIS supplies suitable stainless steel investment castings, steel and aluminum forgings, copper alloy castings and manufactured nozzle components according to the customer drawings.

Investment casting is especially relevant to complex stainless steel spray heads. Forging can be used for compatible brass or steel nozzle bodies, while copper alloy casting offers another route for certain fittings and shaped components. Some simpler spray tips and discharge inserts are manufactured mainly through CNC machining rather than casting.

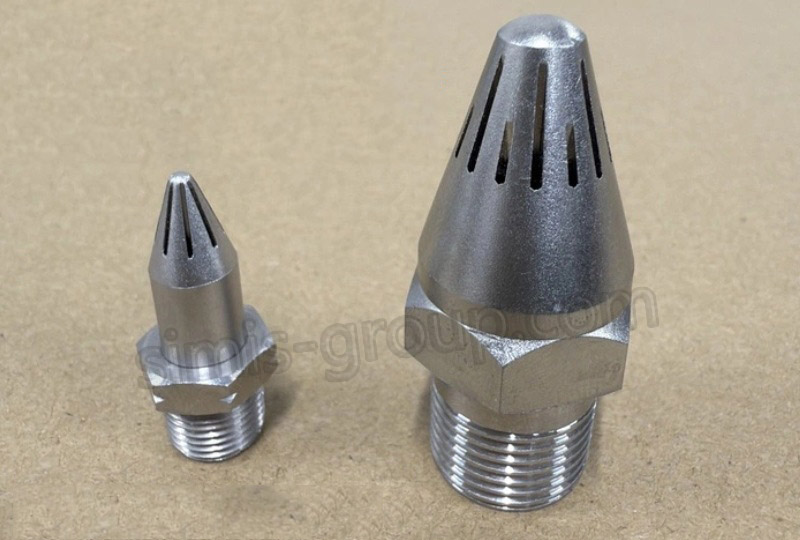

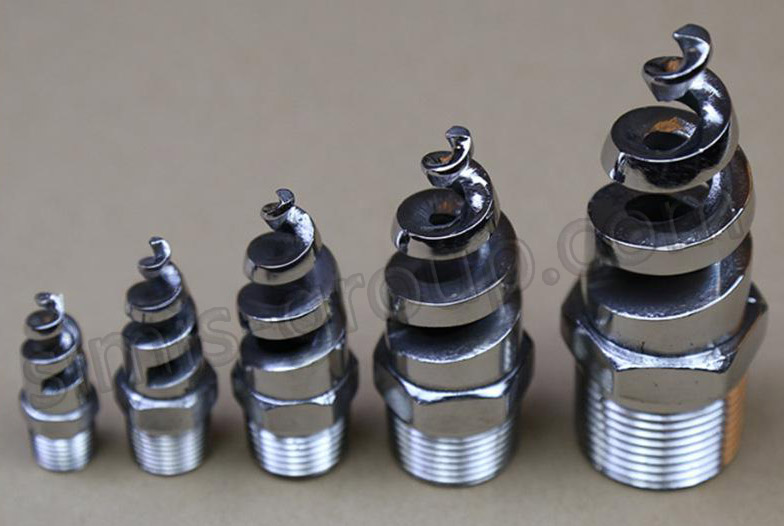

Stainless Steel Investment Casting for Complex Spray Heads

Investment casting, also known as lost-wax casting, is an important SIMIS manufacturing process for suitable stainless steel spray nozzles and heads. The process uses a wax pattern corresponding to the metal component. A ceramic shell is built around the wax pattern, and after the wax is removed, molten steel is poured into the resulting mold cavity.

This method is suitable for many relatively complex metal shapes, including spiral deflectors, connecting bodies, integral mounting features and external profiles that are not easily manufactured as simple turned components. Investment casting can reduce the amount of stock removal needed for certain nozzle parts while supporting production from customer-specific tooling.

SIMIS provides custom precision investment casting services for stainless steel and other suitable steel alloys. Our casting production supports customer-defined spray head components rather than a single standard nozzle series.

Certain enclosed passages, small discharge openings and threaded connections may require additional manufacturing operations. These are provided according to the customer's approved drawing and requested supply condition.

Steel and Brass Forging for Nozzle Bodies

Forging is another metal forming process used in suitable industrial nozzle components. A forged nozzle body may include a substantial connection section, wrench flats, mounting features or other external shapes that can be formed from the selected material.

Carbon steel, alloy steel and selected aluminum alloys can be considered for appropriate forged components. Certain brass alloys are also used for hot-pressed or die-forged fluid fittings, provided that the alloy and manufacturing route are suitable for the particular order.

SIMIS offers custom closed-die forging manufacturing for compatible metal components. The availability of a particular brass or other copper alloy forging route should be confirmed as part of the project quotation. Forged blanks can be supplied with the additional operations specified by the customer.

Copper Alloy Casting and Larger Industrial Nozzle Components

Copper alloys are used for selected nozzle bodies, fluid fittings and connection components. Depending on the required alloy and part geometry, suitable cast brass or bronze components can be manufactured through an appropriate casting route.

SIMIS provides custom copper alloy casting services for suitable industrial metal parts. A cast bronze nozzle body and a nozzle machined from brass bar stock require different material specifications and manufacturing processes, even when their external functions are similar.

For larger industrial fluid-distribution housings and compatible manifold components, custom sand casting may also be applicable. SIMIS manufactures such products according to the customer-specified material, dimensions and quantities.

Stainless Steel, Brass, Bronze and Alloy Materials for Industrial Nozzles

Metal spray nozzles are manufactured from different material families depending on their intended application and the OEM specification. Stainless steels are used for many corrosion-exposed components, while brass and bronze alloys are common in selected water-handling fittings and industrial equipment. Carbon steel, alloy steel and aluminum alloys are also available for suitable specialized parts.

The exact material must correspond to the required product form. For example, a wrought 316L stainless steel nozzle machined from bar stock is not the same material specification as a CF3M cast stainless steel spray head. Similarly, free-cutting brass, forging brass and cast bronze are different material categories.

Stainless Steel Castings for Industrial Spray Heads

Cast stainless steel is an important material category for custom industrial spray heads. Grades such as CF8, CF8M and CF3M are used in suitable corrosion-resistant castings and can be manufactured into detailed metal shapes through investment casting.

SIMIS produces custom stainless steel castings and metal components for different OEM applications. ASTM A743/A743M may apply to eligible corrosion-resistant steel castings. The precise material grade and applicable standard follow the customer specification.

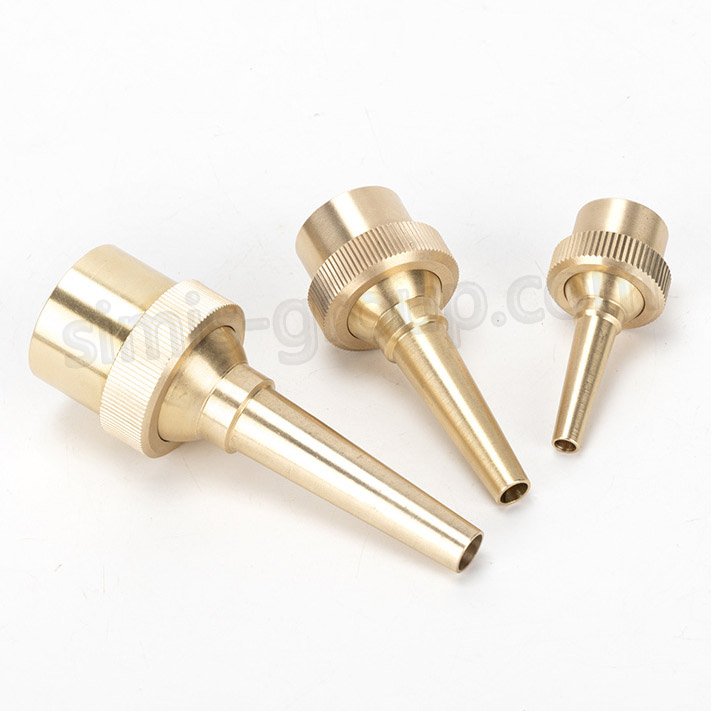

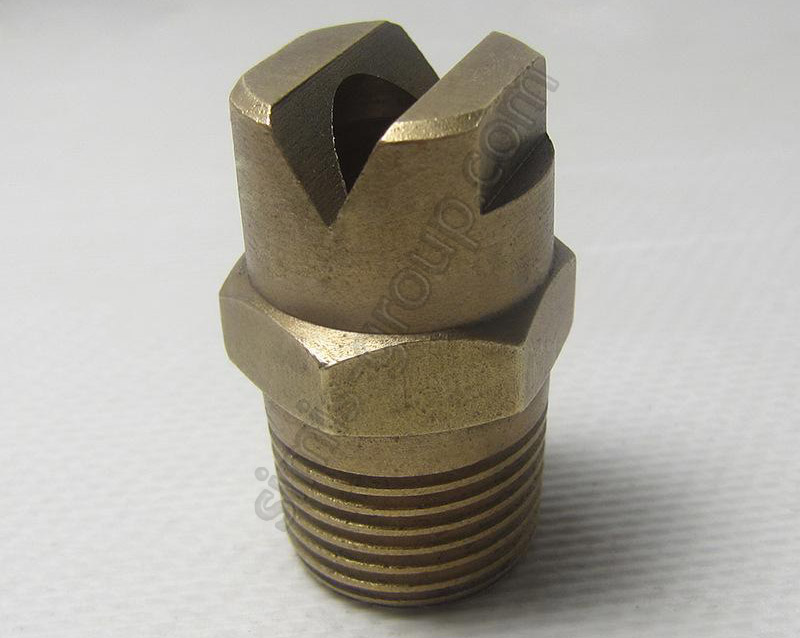

Brass Nozzle Bodies and Bronze Spray Components

Brass is widely used for suitable fluid-handling fittings and industrial spray nozzle bodies. Its machinability makes certain grades practical for threaded components, while other brass grades can be produced through compatible forging or hot-pressing processes.

Bronze alloys are another material option for selected cast metal nozzle parts and connections. Their actual characteristics depend on the specific alloy rather than a general bronze designation. SIMIS supplies suitable brass and bronze components according to the metal grades and manufacturing requirements provided by the customer.

For drinking-water and other regulated applications, the customer must specify the permitted material composition and any required product approvals. A conventional brass nozzle is not automatically suitable for every potable-water system.

Applications of Custom Metal Spray Nozzles and Spray Heads

Industrial spray nozzles are used in a broad range of manufacturing, processing and fluid-distribution equipment. SIMIS manufactures nozzle bodies and related metal components for OEM customers serving different industries, with product dimensions, material grades and spray configurations determined by the equipment manufacturer's requirements.

Industrial Cooling, Cleaning and Washing Equipment

Custom metal spray heads are used in cooling systems, industrial washers, equipment cleaning lines and other machinery requiring distributed or directional liquid discharge. Depending on the application, components may include stainless steel cone nozzles, fan spray tips, spiral heads and threaded spray fittings.

Customers may specify particular metal alloys, nozzle connections, external shapes and discharge configurations for their equipment. SIMIS produces the corresponding metal components according to those drawings and manufacturing requirements.

Agricultural Irrigation and Landscaping Systems

Agricultural and landscaping equipment uses various spray nozzles for irrigation, crop spraying, fertilizer distribution and garden watering systems. Common metal components include threaded spray tips, brass fittings, stainless steel nozzle bodies and specialized spray heads.

SIMIS also supplies custom agricultural machinery metal parts. Nozzle components are produced according to the applicable customer drawings and the specified equipment configuration.

Mining, Metallurgy and Dust Suppression

Mining and mineral-processing operations may use spray nozzles for dust control, washing and liquid distribution. Steel production equipment can also require specialized water-spray components for cooling, cleaning or descaling operations.

Depending on the OEM specification, these applications can require stainless steel, alloy steel, brass or other metal components. SIMIS supplies related custom mining machinery castings and forgings, including suitable metal parts for industrial processing equipment.

Chemical Processing and Industrial Gas Treatment

Chemical processing systems and gas-treatment equipment use selected metal spray heads for liquid distribution, washing and cooling. Stainless steel spray components are common in suitable applications where corrosion resistance is important.

SIMIS manufactures customer-defined nozzle parts from the specified metal grade. Fluid compatibility, the operating pressure and complete spray-system performance are established by the customer's equipment requirements.

Food Processing and Specialized Fire Protection Equipment

Certain food processing and cleaning-in-place systems use stainless steel spray heads for rinsing and equipment cleaning. Fire protection equipment may also contain specified metal spray components, including specialized water-distribution nozzle bodies and fittings.

These industries can require application-specific materials, performance testing and approvals. SIMIS manufactures the specified metal components according to the agreed scope; a standard industrial nozzle casting should not be represented as an independently approved fire sprinkler or food-contact product without the required qualification.

Custom Metal Nozzle Components Made to OEM Drawings

SIMIS specializes in custom metal casting and forging for OEM industrial equipment manufacturers. Our nozzle-related product range includes stainless steel spiral spray heads, shaped metal deflectors, brass nozzle bodies, forged fittings, threaded connections and specialized fluid-distribution components.

Manufacturing may involve investment casting, suitable forging, copper alloy casting, sand casting or machining from metal stock. The selected route is based on the actual component shape, material and production requirements. Customers may order near-net-shape castings, forged blanks or finished metal parts within the agreed supply scope.

Our manufacturing services cover specified grades of stainless steel, carbon steel, alloy steel, aluminum alloy, brass and bronze where the material and process are suitable. Additional CNC machining, heat treatment, surface finishing, cleaning and inspection are included when required by the customer's approved drawings and purchase specifications.

SIMIS supplies individual OEM components and agreed metal assemblies. Where the purchased product requires a specified flow rate, spray distribution, working pressure or specialized certification, the necessary acceptance requirements are defined by the customer and agreed as part of the order.

Request a Quote for Custom Spray Nozzles and Metal Spray Heads

SIMIS welcomes OEM inquiries for custom stainless steel spray heads, spiral nozzle castings, brass spray nozzle bodies, forged metal fittings and related industrial nozzle components. We manufacture products according to customer drawings, specified materials and order requirements.

For a quotation, please provide the following information where available:

• Product drawings: 2D drawings or available 3D CAD models of the nozzle or spray head.

• Nozzle type and configuration: Spiral, fan, cone, jet, Venturi or another specified spray component.

• Material requirements: Stainless steel, brass, bronze or another specified metal grade.

• Product specifications: Overall dimensions, connection size, relevant discharge opening and specified fluid or working pressure where applicable.

• Order requirements: Estimated quantity, required casting or forging supply condition, and any additional finished-part requirements.

Customers may also provide any separately required spray characteristics, certifications or acceptance conditions as part of their technical specifications. SIMIS will quote the appropriate metal manufacturing scope according to the supplied documents.

Send your custom metal spray nozzle drawings and OEM inquiry to SIMIS: info@simis-group.com
