Custom Bracket And Connector Manufacturer
Bracket And Connector
China Simis Company is a specialized OEM manufacturer providing custom solutions for Brackets and Connectors—the foundational components critical to structural integrity across all heavy industries. We utilize a versatile combination of precision casting and high-strength forging processes to manufacture parts that meet demanding specifications for load capacity, durability, and dimensional accuracy.
Our custom brackets and connectors are designed to perform reliably in the most challenging environments, including marine, construction, power generation, and heavy machinery, ensuring the safety and long-term performance of the end system.
1. What Manufacturing Processes Are Used for Custom Brackets and Connectors?
Simis select the optimal manufacturing route from our comprehensive process portfolio to precisely control brackets and connectors' geometry, strength characteristics, and cost-efficiency, tailoring each process to the component's specific requirements.
| Manufacturing Processes | Applicable Material Range | Application Focus for Brackets/Connectors | Core Advantage |
| Sand Casting | Gray Iron, Ductile Iron, Carbon Steel | Large structural brackets, heavy machinery mounting bases. | Cost-effective for complex, high-mass components requiring structural rigidity and damping. |
| Shell Mold Casting | Ductile Iron, Carbon Steel | Mid-sized, precision connectors requiring higher surface quality. | Provides superior surface finish and dimensional accuracy compared to traditional sand casting. |
| Investment Casting | Stainless Steel, Alloy Steel | Small, intricate connectors, high-value precision fittings. | Best near-net shape capability and superior internal material integrity. |
| Permanent Mold Casting | Aluminum Alloy, Copper Alloy | Medium to high volume, high-quality non-ferrous supports. | Excellent repeatability, high density, and good surface quality. |
| Pressure Die Casting | Aluminum Alloy, Zinc Alloy | Small, thin-walled, high-volume electronic or automotive brackets. | Fast production rate, tight tolerance control, and smooth surface finish. |
| Lost Foam Casting | Gray Iron, Aluminum Alloy | Structural parts with complex internal geometry or difficult draft angles. | Simplifies tooling for highly complex, unitary structural parts. |
| Open-die Forging | Carbon Steel, Alloy Steel | Very large, low-volume, high-strength structural connection hubs. | Maximum strength and toughness achieved through comprehensive material flow. |
| Closed Die Forging | Alloy Steel, Stainless Steel, Aluminum Alloy | High-fatigue, safety-critical components (e.g., suspension arms, high-pressure flanges). | Creates a continuous internal grain flow, maximizing fatigue resistance. |
| Cold Forging | Carbon Steel, Alloy Steel | High-precision, high-strength smaller parts requiring no subsequent heat treatment. | Excellent dimensional control and superior surface finish with significant material work-hardening. |
| Ring Forging | Alloy Steel, Stainless Steel | Circular connectors and flanges subjected to high pressure or torque. | Achieves uniform microstructure and maximum strength along the circumference. |
| Sheet Metal Fabrication | Steel, Aluminum | Light-duty brackets, non-standard shapes, structural assemblies. | Used for low-volume, customized, or welded structural components. |
| Precision CNC Machining | All Materials | Mandatory finishing step for all fastening and mating surfaces. | Guarantees the location, size, and True Position of bolt holes, ensuring zero-tolerance assembly. |
2. How to Select Materials for Brackets and Connectors Based on Performance?
We select from a full range of ferrous and non-ferrous alloys, matching each material’s mechanical properties, weight optimization, and environmental resistance precisely to the bracket or connector’s application requirements to ensure optimal performance.
| Material Type | Core Performance Attributes | Primary Application Scenarios for Brackets/Connectors |

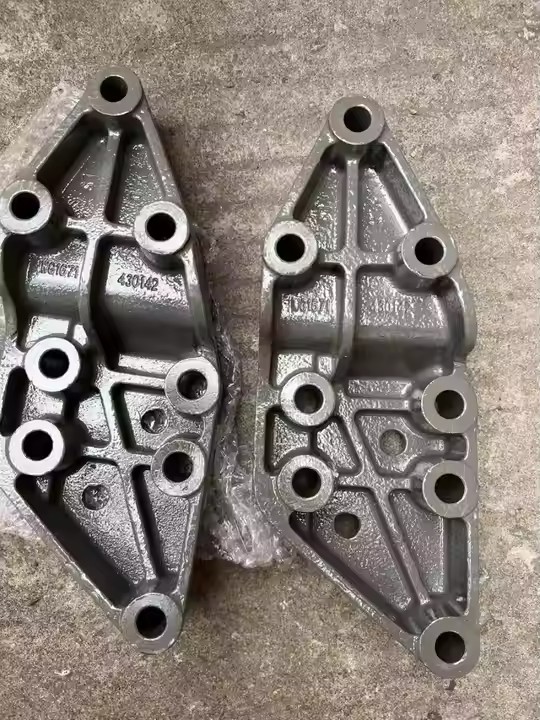

| Gray Iron | High rigidity, excellent vibration damping, good castability. | Used for machine mounting bases requiring stiffness and noise reduction. |
| Ductile Iron | High tensile strength, good ductility, and impact resistance. | Mid-to-high load brackets, general structural mounting components. |
| Austempered Ductile Iron (ADI) | Extremely high wear resistance, high fatigue life, and superior strength. | Connectors and linkages subject to severe wear or high dynamic stress. |
| Carbon Steel | General strength, cost-effectiveness, good weldability. | Standard structural brackets, general mechanical forgings and castings. |
| Alloy Steel | Highest levels of strength, hardness, and toughness. | High-stress forgings, safety-critical structural connections. |
| Stainless Steel | Superior corrosion resistance, high temperature stability. | Marine environments, chemical processing equipment, food-grade mounts. |
| Aluminum Alloy | Lightweight, excellent strength-to-weight ratio, high thermal conductivity. | Automotive and aerospace brackets (both cast and forged), electronic thermal mounts. |
| Copper Alloy | High electrical/thermal conductivity, excellent corrosion resistance. | Electrical connectors, plumbing fittings, marine environment components. |
| Zinc Alloy | Excellent high-pressure die casting flow, high surface quality. | High-volume, small, precision hardware for consumer or electronic mounting. |
3. How to Ensure Dimensional Control and Structural Quality of Brackets and Connectors?
The reliability of brackets and connectors depends on strict dimensional accuracy (for fit and alignment) and structural integrity (for load bearing), which we guarantee through a comprehensive quality control system.
·Tolerance Guarantee:
Precision CNC machining ensures tight tolerances (up to ISO tolerance IT6) on critical mounting holes, interface surfaces, and geometric alignment, meeting the strictest assembly requirements.
·Weld Preparation:
We ensure high-quality surface finish and dimensional stability for components intended for subsequent welding, preventing structural weaknesses in assembled systems.
·Structural Inspection (NDT):
We utilize Magnetic Particle Inspection (MPI) and Ultrasonic Testing (UT) to detect internal defects in forged and cast components, eliminating risks that could compromise load-bearing capability.
·Material Certification:
We provide certified Material Test Reports (MTRs) documenting tensile strength, yield strength, and impact resistance, ensuring full traceability and compliance with industry standards.
4. What Industries Use Custom Brackets and Connectors from Simis?
Simis custom brackets and connectors are integral to structural reliability across a wide range of demanding sectors, with tailored solutions for each industry’s unique challenges.
| Application Sector | Typical Component | Core Performance Needs | Simis Material/Process Focus |
| Automotive & EV | Forged Suspension Control Arms, Engine Mount Brackets, Axle Connectors. | High Fatigue Life, Impact Resistance, Significant Weight Reduction. | Forged Aluminum/Steel (Closed Die), Ductile Iron (ADI). |
| Aerospace & Defence | Actuator Supports, Landing Gear Brackets, Engine Mounts. | Minimal Weight, Extreme Reliability, Tightest Tolerances. | Forged Aluminum/Steel, Investment Cast Stainless Steel. |
| Construction & Heavy Equipment | Crane Boom Supports, Forged Scaffolding Couplers, Heavy Beam Connectors. | Maximum Static Load Capacity, Structural Safety. | Cast Steel (Sand Casting), Forged Steel (Closed Die Forging). |
| Industrial Machinery & Robotics | Motor Mounts, Gearbox Brackets, Robotic Tooling Flanges. | Precision Alignment, Rigidity, $\text{NVH}$ Control. | Ductile Iron (Casting), Aluminum (Casting), Forged Steel. |
| Power Generation & Energy | High-Pressure Pipe Flanges, Valve Supports, Structural Connections for Towers. | High Strength, High Temperature, Pressure Containment. | Forged Steel (Ring Forging), Cast Steel, Stainless Steel. |

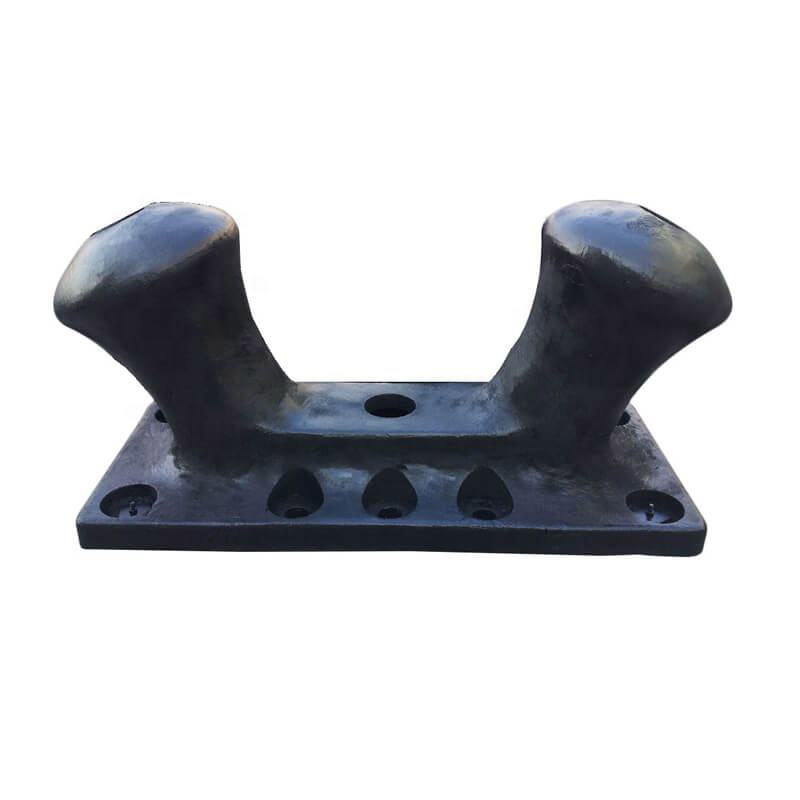

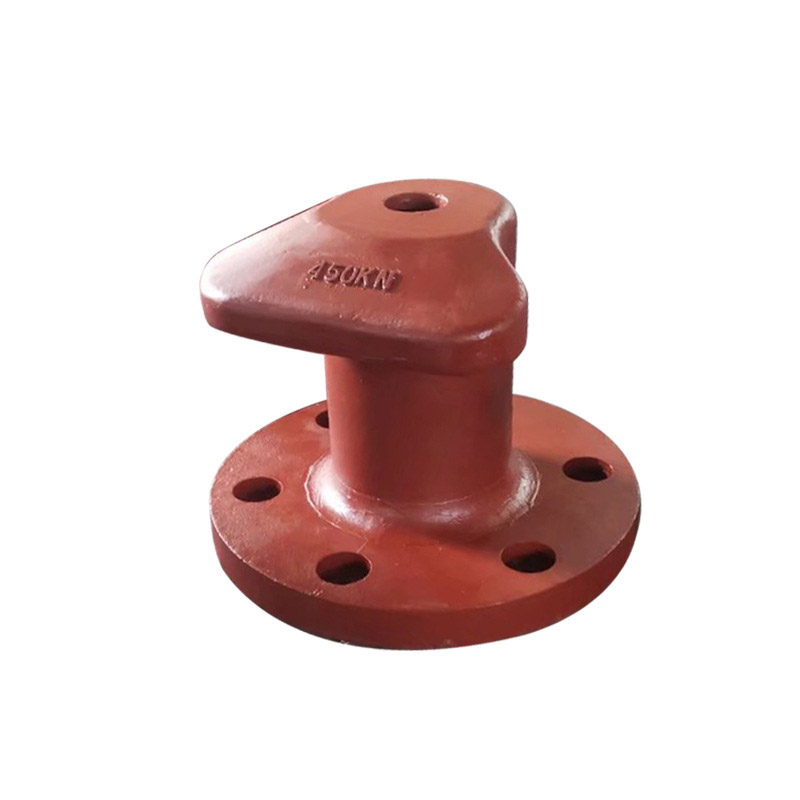

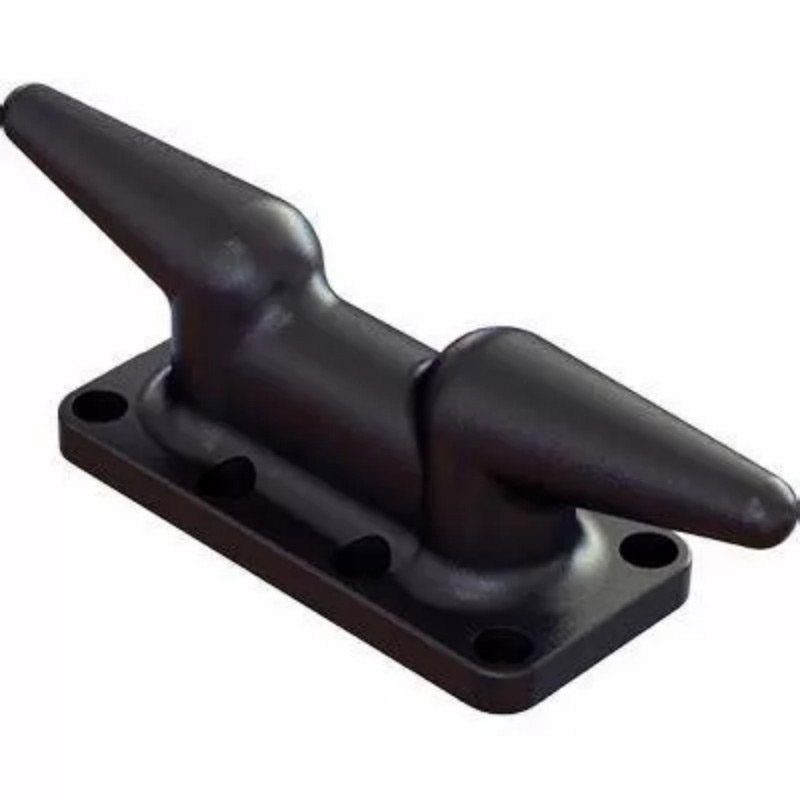

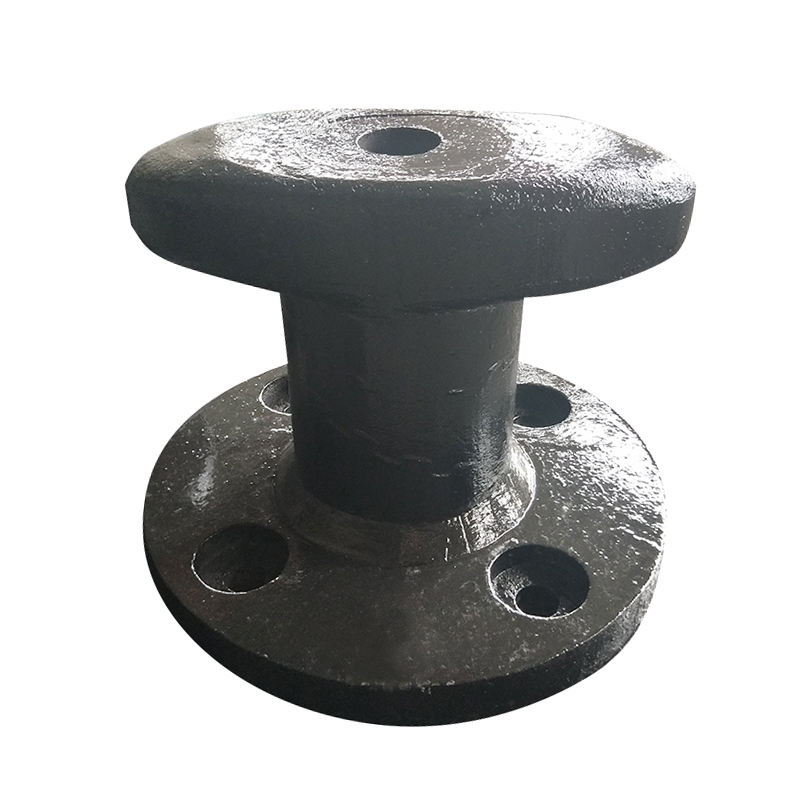

| Marine & Chemical Processing | Deck Fittings, Rigging Connectors, Pump Brackets. | Extreme Corrosion Resistance (Saltwater/Chemicals). | Stainless Steel (Cast & Forged), Copper Alloy (Casting). |
| Electronics & Consumer Goods | Display Panel Brackets, Appliance Mounts, Small Hardware. | Cost-Efficiency, Low Weight, High Volume Precision. | Aluminum Alloy / Zinc Alloy (Pressure Die Casting). |
5. What Are the Advantages of Simis OEM Custom Brackets and Connectors?
Choosing Simis as your OEM partner for brackets and connectors ensures engineering certainty, streamlined project execution, and superior end products tailored to your needs.
·Process Optimization:
Our engineers advise on the optimal process—casting for complex forms and cost efficiency, or forging for maximum fatigue strength—to balance performance and budget for your components.
·DFM Support:
We provide Design for Manufacturing (DFM) expertise to optimize your design for material performance, production efficiency, and streamlined assembly, reducing lead times and costs.
·Integrated Supply:
We offer a single-source solution covering raw material sourcing, casting/forging, machining, non-destructive testing, and final protective finishing (e.g., galvanizing, powder coating), simplifying your supply chain.
·Compliance Assurance:
We adhere to major international standards (e.g., ASTM, ISO) for material grades and structural testing, ensuring your components meet global certification requirements and market access needs.
6. How to Get a Quote for Custom Brackets and Connectors?
China Simis Company is your reliable global partner for custom-forged and cast brackets and connectors, engineered for superior structural integrity and precise fit across all industries.
To receive a professional consultation and detailed quotation, please submit your 2D technical drawings, 3D/CAD models, specified material and process requirements (e.g., Forged Aluminum 6061 T6 Closed Die), critical tolerance specifications, and expected annual volume to our engineering department. Our team will provide tailored solutions based on your project needs.
