Frequently Asked Questions About Custom Transformer Housings

1. What custom transformer housing components does SIMIS manufacture?

SIMIS manufactures OEM transformer enclosure castings, aluminum finned housings, cast iron bases, steel mounting components, end covers and specialized enclosure fittings to customer drawings. Our manufacturing methods include sand casting, aluminum pressure die casting, gravity permanent mold casting, shell mold casting, lost foam casting and investment casting for suitable part geometries. Sheet metal fabrication and selected steel forgings are complementary options. Supply can cover individual castings, fabricated parts or finished metal components within the agreed order scope.

2. Can SIMIS manufacture cast aluminum transformer enclosures with cooling fins?

Yes. For suitable compact electrical housings and auxiliary transformer components, aluminum pressure die casting can produce complex shapes with integrated cooling fins, mounting bosses and cover interfaces. A380-family die-casting alloys and compatible aluminum casting grades may be considered. Gravity permanent mold casting with a suitable alloy such as A356 is an option for other geometries. A finned aluminum housing is not automatically a complete dry-type transformer enclosure or a verified heat sink; thermal and electrical functions depend on the OEM equipment design.

3. Are large oil-filled transformer tanks manufactured as one-piece castings?

Large oil-filled transformer tanks are commonly fabricated from welded steel plate rather than manufactured as one-piece cast iron tanks. SIMIS can provide suitable cast bases, mounting brackets, covers, flanges and other metal components associated with a transformer tank, as well as customer-specified fabricated enclosure parts. Any component intended to retain insulating oil requires the appropriate design, joining, sealing and verification requirements to be defined by the OEM. Casting is not a universal substitute for a welded steel tank.

4. Which materials are available for transformer housings and supports?

Available material families include ASTM A48 gray cast iron, ASTM A536 ductile iron, specified cast carbon and alloy steels, cast aluminum such as A356 or A380, and suitable stainless steel casting grades. Fabricated covers and cabinets can use customer-specified steel or stainless steel sheet; selected connecting parts may be forged from carbon or alloy steel. Cast and wrought material designations are different and should not be interchanged without approval. Material selection depends on the size, installation environment and function of each part.

5. What information is required for a custom transformer housing quotation?

Provide 2D technical drawings or available 3D CAD models, identify the component and its transformer application, specify the material grade, and show the principal dimensions and connection interfaces. Relevant details may include the mounting footprint, cable openings, cooling fin geometry, cover or gasket interfaces and fastening holes. Include estimated order quantity and any enclosure protection or oil-contact requirements stated in the OEM specification. SIMIS quotes the agreed casting, forging or fabrication scope. Email info@simis-group.com.

OEM Transformer Housing and Enclosure Casting Manufacturer

Custom transformer housings and enclosures are metal structures and components used to protect, mount or support power-transformer and electrical equipment assemblies. Depending on the transformer type, a metal housing can be an external protective cabinet, a compact finned enclosure, a mounting base, a cover or one of several components used around an oil-filled tank. These products have distinct structural and environmental requirements.

SIMIS specializes in custom cast aluminum transformer enclosures, ductile iron mounting bases, cast steel support components, stainless steel enclosure fittings and OEM sheet metal covers. Our casting and forging services supply metal components to customer drawings rather than complete transformers with electrical insulation, windings and controls.

Transformer enclosure design differs between dry-type and liquid-filled equipment. A dry-type transformer may use a ventilated steel cabinet, panels and mounting frames. A compact sealed electrical enclosure may use a cast aluminum body with integrated fins. Larger liquid-filled transformers commonly use welded steel oil tanks, supported by separately manufactured fittings and components. The specified protection against dust, water, corrosion or electrical contact belongs to the complete approved enclosure construction.

Metal casting is relevant where a part contains complicated ribs, bosses, lugs, mounting features or integrated fins. Fabrication is often more practical for large flat-walled cabinets and oil tanks. Forging has a limited but useful role in certain solid mounting, connecting and support components rather than being the normal method for an entire hollow enclosure.

SIMIS supplies casting and fabrication services for the electrical and lighting equipment industry as well as related energy and power equipment components.

Types of Custom Transformer Enclosures, Bases, Covers and Fittings

Transformer housing components vary from compact aluminum castings to larger supporting structures. SIMIS manufactures suitable OEM metal parts for different equipment configurations. The table below distinguishes the component itself from the complete transformer or oil-retaining tank.

Cast Aluminum Transformer Enclosures and Cooling Covers

Finned aluminum castings can form compact housings and covers for suitable electrical products. Die casting is particularly useful when a component requires complex external details, while gravity permanent mold casting can be considered for an appropriate alloy, geometry and volume. Cooling fin design and the permitted operating temperature remain matters for the equipment manufacturer.

Cast Iron and Steel Transformer Mounting Bases

Gray iron and ductile iron can be used for selected equipment bases and mounting structures. Cast steel can be specified for appropriate structurally loaded brackets and supports. Material grade, mounting load and interface dimensions are taken from the approved customer drawing; gray iron must not automatically be substituted for more ductile materials in critical supports.

Fabricated Cabinets and Oil Tank Components

Many dry-type transformer cabinets use formed steel sheet, ventilation openings and internal frames. Large oil-filled tanks more commonly use welded steel construction with specified joints, cover interfaces and auxiliary fittings. SIMIS can manufacture suitable components through metal fabrication or supply selected cast and forged parts for the wider equipment assembly.

Metal Casting and Complementary Forging Processes for Transformer Parts

Custom metal casting is the principal SIMIS manufacturing route for selected transformer housings, bases and covers. Sand casting, shell mold casting, die casting, gravity casting, lost foam casting and investment casting address different materials and component shapes. Steel fabrication is often preferred for large cabinets and oil tanks; forging is appropriate for specific solid steel connections.

Sand Casting for Iron and Steel Enclosure Components

Sand casting uses a prepared sand mold to form iron, steel or compatible nonferrous metal components. It is relevant to selected gray iron bases, ductile iron supports and cast steel mounting pieces. Where needed, a casting can incorporate bosses, ribs and other features specified in the drawing. SIMIS provides sand casting manufacturing, iron foundry services and steel casting services for suitable customer-defined parts.

Aluminum Pressure Die Casting and Gravity Casting

Pressure die casting injects molten aluminum into a metal mold and can reproduce detailed profiles such as external fins and multiple mounting points. For compatible housings and covers, A380-family die-casting alloys are potential material choices. Selected A356 aluminum components can be made through gravity permanent mold casting. These alternatives have distinct porosity, geometry, tooling and production characteristics. No casting process by itself establishes an IP rating, dielectric protection or oil-tight performance.

Shell Mold, Lost Foam and Investment Casting

Additional options include shell mold casting for compatible iron or steel components, lost foam casting for suitable shaped iron bases, and investment casting for smaller complex stainless steel and alloy steel fittings. These are component-specific choices rather than universal routes for complete large transformer enclosures.

Fabricated Steel Tanks and Forged Connections

A large oil-filled transformer tank typically uses fabricated and welded steel plates. Metal castings can be incorporated as separately specified fittings or attachments, but a complete oil-retaining structure needs a coordinated design and manufacturing route. SIMIS offers sheet metal fabrication for suitable panels and welded parts. Where the customer calls for solid forged connections, closed-die steel forging can be considered for approved shapes and quantities.

Cast Aluminum, Cast Iron, Cast Steel and Stainless Steel Materials

Material selection for transformer housing components depends on geometry, support requirements, ambient exposure, operating temperatures and the particular service interface. A dry-type cabinet, a finned compact enclosure and a component attached to an oil-filled tank do not automatically use the same metal.

Gray and Ductile Iron Transformer Bases

Gray iron and ductile iron can be used for compatible machinery bases and mounting structures. ASTM A48 and ASTM A536 are separate material standards and cannot be treated as identical. Ductile iron may be selected for particular load-bearing shapes; the actual grade and acceptance criteria should follow the customer specification.

A380 and A356 Aluminum Enclosure Castings

A380-family alloys are commonly associated with high-pressure die casting, while A356 is a different cast aluminum alloy suitable for specified gravity or other foundry processes. Aluminum components can incorporate cooling features, but their thermal properties do not independently verify whole-equipment cooling performance. The casting alloy, finish and cover interfaces must be defined for each part.

Cast Steel and Stainless Steel for Specialized Enclosure Parts

Cast carbon steel and stainless steel are available for selected supports, mounts and corrosion-exposed fittings. ASTM A351 CF8 and CF8M are cast stainless steel designations; wrought 304 and 316 are different product specifications typically used in fabricated enclosures. Cast alloys, wrought steel plate and forgings should be specified according to their own standards.

Applications of OEM Transformer Housing Components

SIMIS manufactures cast and fabricated metal components for transformer-related equipment across electrical distribution, industrial power, renewable energy and special-purpose installations. Each customer project defines the required product geometry, material and environmental protection.

Distribution Transformers and Substation Equipment

Distribution equipment can use metal support bases, brackets, covers and protective cabinets. The construction depends on whether the electrical equipment is liquid-filled, dry-type or part of a larger substation installation. SIMIS supplies suitable cast or fabricated components to the OEM drawings rather than complete rated substation systems.

Dry-Type Transformers and Ventilated Electrical Cabinets

Dry-type transformer installations may use steel sheet cabinets, mounting frames, vented panels and related support fittings. Smaller electrical components may use finned aluminum die-cast housings where the OEM design calls for them. The ventilation, touch protection and applicable enclosure classification require assessment of the complete assembly.

Oil-Filled Transformers and Related Tank Components

Oil-filled transformer assemblies can contain steel tanks, mounting feet, cover flanges, cable connection structures and other fittings. SIMIS offers suitable metal components, including cast bases, brackets and fabricated parts. Oil compatibility, weld integrity, pressure requirements and sealing are determined by the specific equipment design and purchasing scope.

Industrial, Mining and Renewable Energy Systems

Transformer-related enclosures and support parts are used in industrial plants, renewable energy installations and specialized electrical equipment. Exposure to weather, industrial chemicals, dust or mechanical vibration can affect the material and coating requirements. SIMIS supplies customer-defined castings and fabricated metal parts without assuming that one alloy or coating is appropriate for every environment.

Custom Transformer Enclosure Castings and Fabricated Parts to OEM Drawings

SIMIS supplies custom transformer housing metal components under the customer-approved manufacturing and purchasing specifications. Our principal manufacturing options include suitable aluminum pressure die casting, aluminum gravity casting, sand casting for iron and steel, shell mold casting, lost foam casting and investment casting. Sheet metal fabrication and steel forging are available for compatible supporting components.

Customers may request unfinished metal castings, fabricated blanks, finished individual parts or specified component sets. Dimensional finishing, surface treatments, material documentation and inspection can be provided where included in the approved order. No standard casting process guarantees a sealed enclosure or a particular IP protection class.

A dry-type transformer cabinet may require defined ventilation, accessibility and protection against contact with live electrical components. A liquid-filled tank may require separate structural, sealing and oil-service verification. Such performance requirements are the responsibility of the complete OEM design and must be expressly included in the component specification when relevant.

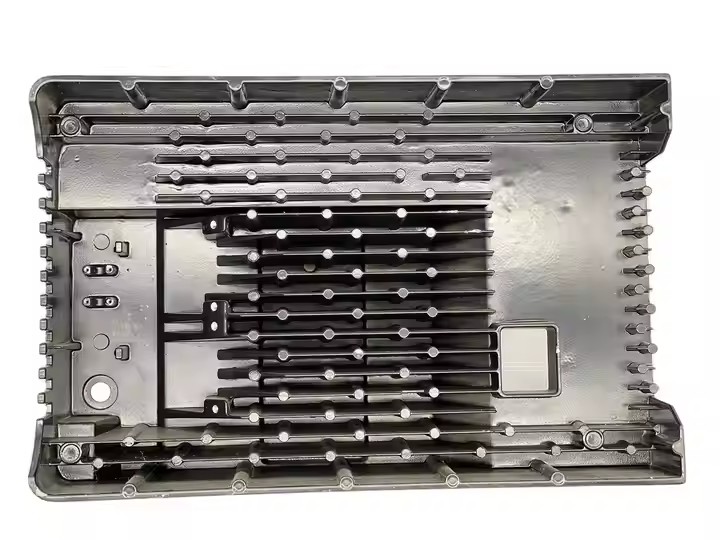

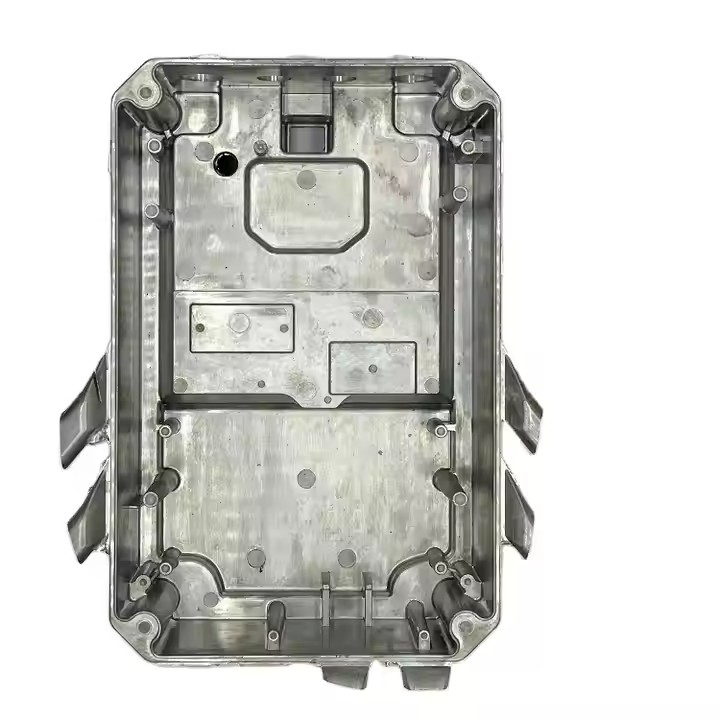

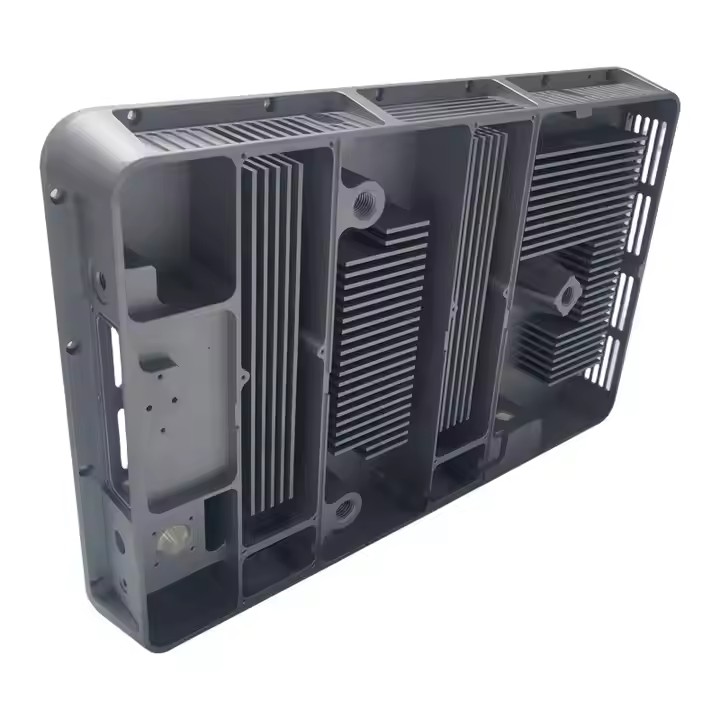

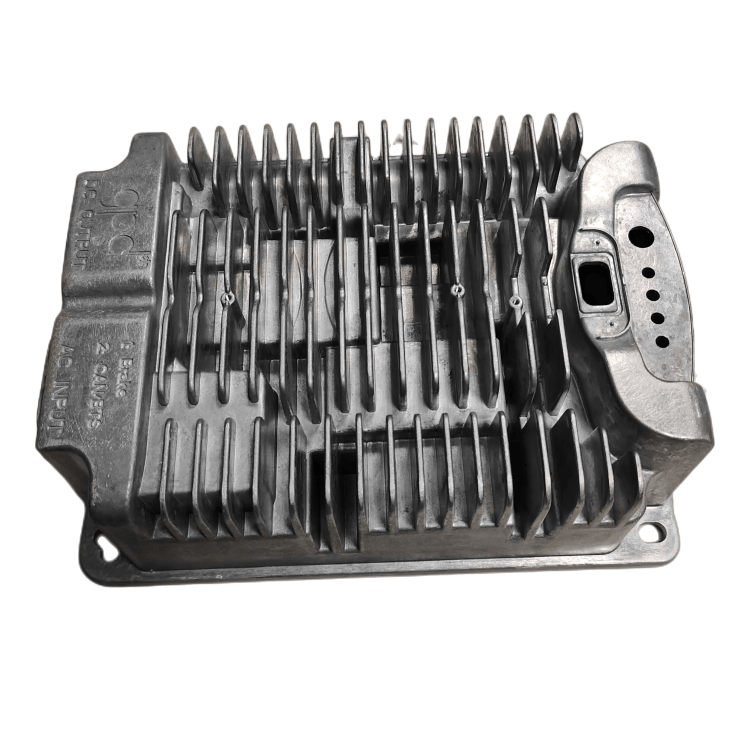

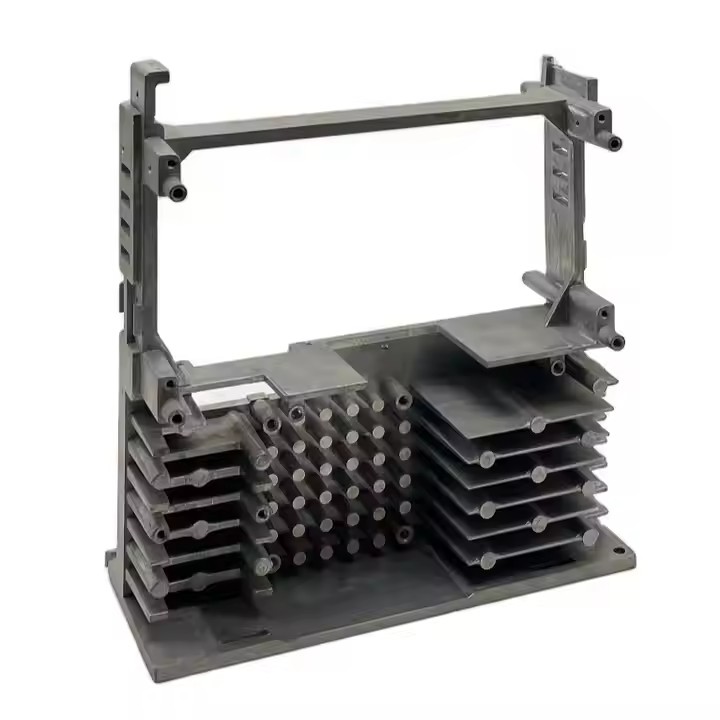

The page imagery includes finned metal housings and mounting structures; these images are retained from the original SIMIS product page and do not establish that each pictured item is a complete oil-filled transformer tank or an electrically certified enclosure. SIMIS focuses on producing the ordered metal parts to agreed drawings.

Request a Quote for Custom Transformer Housings and Enclosure Parts

SIMIS welcomes OEM inquiries for custom cast aluminum transformer housings, finned enclosure covers, ductile iron bases, cast steel mounting parts, stainless steel fittings and fabricated sheet metal enclosure components. Please provide the following five items where available:

• Technical drawings: 2D production drawings or available 3D CAD models of the enclosure component.

• Component and application: Finned housing, base, cover, mounting bracket, cabinet panel or other part; identify dry-type or oil-filled equipment where relevant.

• Material grade: Specified aluminum casting alloy, gray or ductile iron, cast steel, stainless steel, or fabricated plate material.

• Critical dimensions and interfaces: Overall dimensions, mounting footprints, fastening positions, cable openings, fin profiles and any gasket or flange connections.

• Order and service requirements: Estimated quantity, desired cast or fabricated supply condition, and any applicable oil-contact, pressure, environmental or enclosure-rating requirements.

Any additional finishing, coating or acceptance requirements may be included in the approved technical documents. SIMIS will quote the specific material, manufacturing process and delivery scope.

Send your custom transformer enclosure component drawings and OEM inquiry to SIMIS: info@simis-group.com.
