Custom Junction Boxes Manufacturer
Junction Boxes

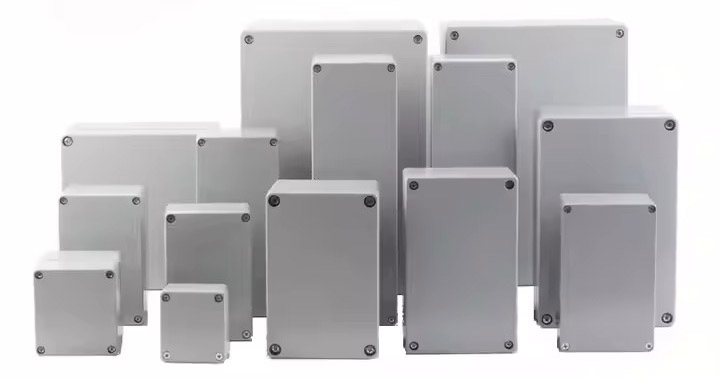

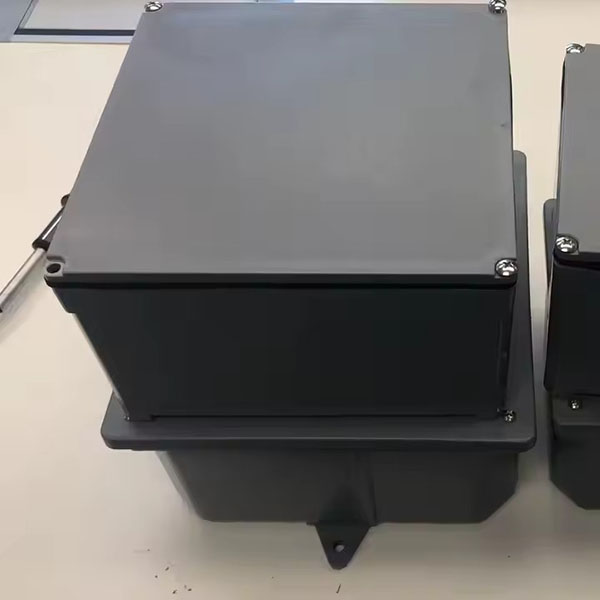

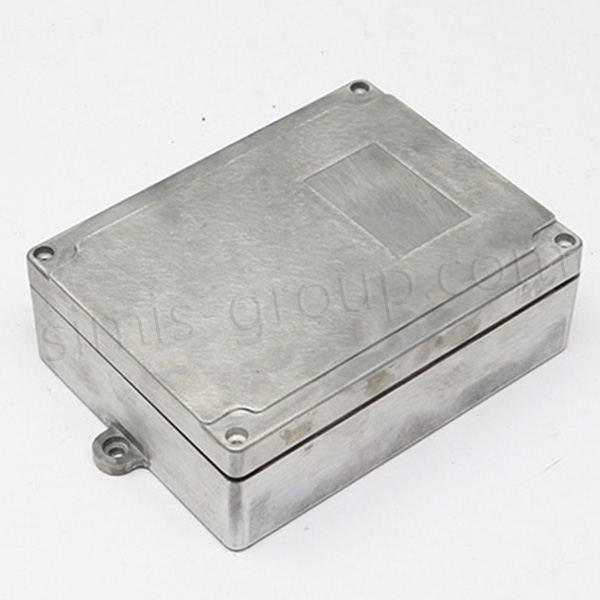

China Simis Company is a specialized OEM custom casting manufacturer of high-integrity Junction Boxes and Electrical Enclosures. These metal boxes serve as a protective housing for electrical connections, terminal blocks, circuit boards, and other sensitive electrical and communication components. They are essential for ensuring electrical safety, signal integrity, and component longevity in harsh operational environments.
Whether you need Explosion-Proof Junction Boxes for oil and gas or Weatherproof Enclosures for infrastructure, our multi-process capability—ranging from Gravity Casting and Pressure Die Casting to Investment Casting and Sheet Metal Fabrication—ensures the perfect balance of protection and cost-effectiveness. We work with Stainless Steel, Aluminum Alloy, Ductile Iron, and Carbon Steel to meet international safety standards.
What are the manufacturing processes for junction boxes?
Casting is the primary method for high-performance enclosures as it allows for the precise integration of complex mounting features, sealing grooves, and often provides the necessary thickness for rigidity and EMI protection. We adopt 7 core processes including Pressure Die Casting, Gravity Permanent Mold Casting, Precision Investment Casting, Sand Casting, Shell Mold Casting, Sheet Metal Fabrication and Precision CNC Machining to meet different junction box production needs.
| Manufacturing Process | Material Focus | Component Focus | Key Advantage for Junction Box Performance |

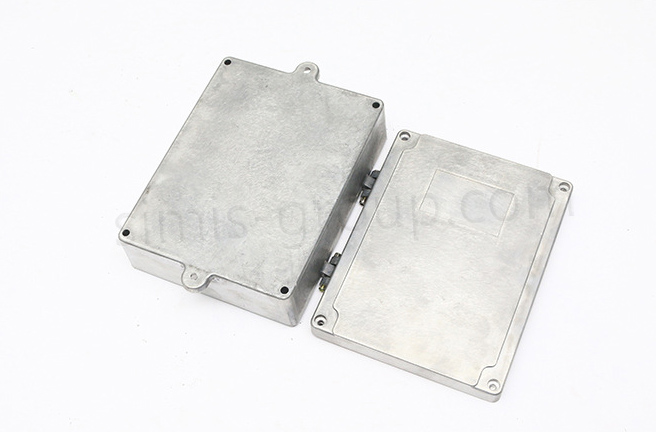

| Pressure Die Casting | Aluminum Alloy, Zinc Alloy. | High-volume production of standard electrical housings and covers. | Lightweight & Precision. Ideal for thin-walled, lightweight enclosures with excellent surface finish for powder coating. |
| Gravity Permanent Mold Casting | Aluminum Alloy. | Mid-range performance enclosures requiring higher density and wall thickness. | Enhanced Structural Integrity. Better pressure tightness and mechanical strength than die casting for rugged environments. |
| Precision Investment Casting (Lost Wax) | Stainless Steel, Alloy Steel. | Safety-critical Explosion-Proof Junction Boxes and small precision components. | Superior Corrosion Resistance. Provides tight tolerances and high-quality finish for chemical, marine, and hazardous areas. |
| Sand Casting | Ductile Iron, Gray Iron, Cast Steel. | Large, heavy-duty industrial junction boxes for mining and heavy machinery. | Robustness & Low Cost. Most effective for massive, thick-walled enclosures requiring high impact resistance. |
| Shell Mold Casting | Ductile Iron, Cast Steel. | Consistent, medium-sized enclosures for power distribution. | Dimensional Consistency. Offers better surface finish than sand casting for industrial-grade distribution boxes. |
| Sheet Metal Fabrication | Carbon Steel, Stainless Steel. | Large-scale outdoor control boxes, custom-sized wall-mount enclosures. | Flexibility & Scalability. Cost-effective for custom sizes and large-scale structures via laser cutting, bending, and welding. |
| Precision CNC Machining | All Materials. | Threading for cable glands (NPT/Metric), mounting bosses, sealing grooves. | IP-Rated Sealing Precision. Crucial for ensuring watertight gaskets and precise thread tolerances for cable entry. |
How to Select Junction Box Materials?
Material selection is driven by the required environment, mechanical strength, and the necessity to provide electromagnetic protection. We mainly provide 5 types of materials including Stainless Steel, Aluminum Alloy, Ductile Iron, Gray Iron and Carbon Steel for junction box production.
| Material Type | Core Performance Attributes | Primary Junction Box Application |
| Stainless Steel | Ultimate Corrosion Resistance and hygiene compliance. | Marine/Offshore, Food & Beverage, and Chemical processing plants. |
| Aluminum Alloy | Excellent Thermal Conductivity and lightweighting. | Telecommunications, heat-dissipating electronics, and standard outdoor lighting. |
| Ductile Iron | High Impact Strength and durability. | Mining, Tunnelling, and heavy industrial power distribution centers. |
| Gray Iron | Excellent Vibration Damping and cost-efficiency. | Static industrial enclosures and protective housings in stable environments. |

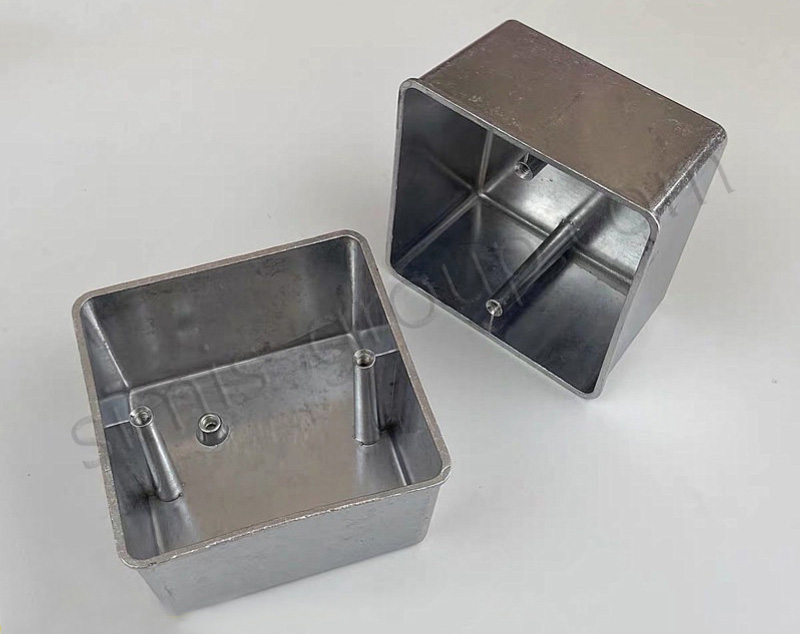

| Carbon Steel | High strength and structural flexibility (via Fabrication). | Large-scale Power Distribution Cabinets and general-purpose junction boxes. |
What Measures Ensure Sealing Integrity and Quality Assurance for Junction Boxes?
The reliability of a junction box is defined by its ability to prevent environmental ingress and maintain signal integrity. Our core quality assurance measures include IP rating compliance, EMI/RFI shielding, non-destructive testing and professional finish & coating.
·Environmental Protection (IP Rating):
Housings are engineered to meet standards like IP65, IP66, or IP67 (dust-tight and highly water-resistant/submersible). This is achieved through precision machining of the cover and body interfaces to ensure a perfect gasket or O-ring seal.
·Electromagnetic Shielding (EMI/RFI):
Metal housings inherently offer excellent shielding. For high-frequency applications (e.g., communication equipment), specific gasket materials (like conductive elastomer) and precision flatness are required to maintain a continuous electrical path across the enclosure seam.
·Non-Destructive Testing (NDT):
Pressure testing or Dye Penetrant Inspection (DPI) may be used to verify the integrity of the casting structure, ensuring no micro-porosity compromises the environmental seal.
·Finish and Coating:
Powder coating, galvanizing, or anodizing is applied to carbon steel and aluminum components to maximize corrosion resistance in the installation environment.
What Are the Key Applications for Simis Custom Junction Boxes?
Our custom-cast enclosures are essential for protecting vital electrical links across diverse infrastructure. The main application sectors include Oil, Gas & Mining, Renewable Energy, Marine & Offshore and Infrastructure.
| Application Sector | Typical Component Type | Simis Process Focus |
| Oil, Gas & Mining | Explosion-Proof Terminal Boxes, Flameproof Enclosures. | Investment Casting / Sand Casting (Ductile Iron). |
| Renewable Energy | Solar Combiner Boxes, Wind Turbine Control Enclosures. | Pressure Die Casting / Sheet Metal Fabrication. |
| Marine & Offshore | Watertight Deck Junction Boxes, Navigation Light Housings. | Stainless Steel Investment Casting. |
| Infrastructure | Traffic Signal Junction Boxes, Railway Communication Hubs. | Gravity Casting / Aluminum Die Casting. |
What Are the Advantages of Simis OEM Custom Junction Boxes?
Partnering with Simis for custom junction boxes ensures component safety, regulatory compliance, and system reliability. Our core advantages are as follows:
·Custom Design Optimization:
Assisting in structural design adjustments to improve sealing performance, mounting convenience and environmental adaptability for junction boxes.
·Reverse Engineering Capability:
Re-manufacturing obsolete junction box models from physical samples using 3D laser scanning to meet replacement needs of old equipment.
·Enhanced Durability Solutions:
Application of Tungsten Carbide or Ceramic coatings on junction box surfaces for extended service life in abrasive and corrosive environments.
·Material Upgrading Support:
Transitioning from gray iron to Ductile Iron or Stainless Steel to handle higher pressure, corrosion resistance and explosion-proof requirements.
How to Get a Quote for Custom Junction Boxes?
China Simis Company is your expert global partner for custom casting Metal Junction Boxes and Enclosures, engineered for superior IP protection, high durability, and reliable EMI shielding.
Please submit your 2D technical drawings, 3D models (showing internal mounting features and sealing grooves), and specific requirements for material grade, target IP rating, and EMI shielding needs to our engineering department for a consultation and detailed quotation. We are ready to secure your critical electrical connections.
