Custom Conduit Outlet Bodies And Cover Manufacturer
Conduit Outlet Bodies And Cover
Frequently Asked Questions About Custom Conduit Outlet Bodies & Covers
What custom conduit outlet bodies & covers does SIMIS supply?
SIMIS supplies custom metal components such as lb conduit bodies, ll and lr conduit bodies, c conduit bodies. Products follow the customer drawings and the agreed supply condition. SIMIS provides individual metal components and specified subassemblies rather than assuming responsibility for complete equipment.
Can SIMIS make custom conduit outlet bodies & covers from my drawings?
Yes. The manufacturing scope is based on customer-supplied 2D drawings, available 3D CAD models, specified materials and order quantities. Custom castings, forgings or finished metal components can be considered according to the design and production requirements.
What materials can be used for custom conduit outlet bodies & covers?
Material options for suitable projects include aluminum die-casting alloys, gray and ductile cast iron, cast stainless steel grades, customer-specified cast steel. The actual alloy grade and manufacturing condition are specified by the customer; materials are not automatically interchangeable across different applications.
Which casting and forging processes are available?
Depending on the component and customer requirements, manufacturing options include aluminum pressure die casting, sand casting, shell mold casting. Each manufacturing quotation reflects the particular drawing, required material and production volume. Secondary operations are supplied only to the extent requested by the customer.
How do I request a quotation for custom conduit outlet bodies & covers?
Please email the component drawing or CAD file, material specification, required quantity and desired supply condition to info@simis-group.com. Where the customer requires machining, heat treatment, finishing, inspection or assembly, those requirements can be included in the drawing or RFQ.
OEM Custom Conduit Outlet Bodies & Covers Made to Customer Drawings

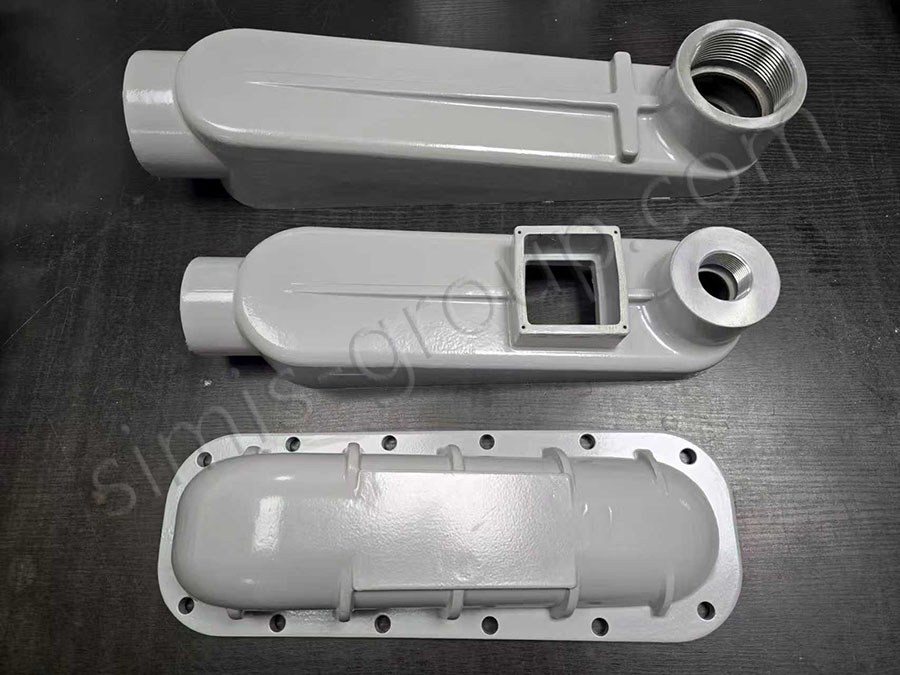

Conduit outlet bodies and covers are metal fittings used with electrical conduit installations for access to wiring and changes in conduit routing. SIMIS manufactures metal conduit body castings, removable covers and related fitting components from customer-approved drawings.
SIMIS provides OEM casting and forging manufacturing for metal parts used in customer-specific machinery and equipment. Production can cover the casting or forging blank, a finished metal component or an agreed mechanical part set. The material, drawings, order quantities and delivery condition are established by the purchase specification.
This page introduces the principal parts that may be supplied, the available metal-forming routes and the industries that use them. Rather than offering a universal specification, SIMIS manufactures each project according to the technical requirements provided by the OEM.
Types of Custom Conduit Outlet Bodies & Covers and Related Metal Parts
Our product range includes individual metal components for different equipment models. The table below describes typical OEM product categories, not fixed off-the-shelf sizes. Customers can submit drawings for other compatible forms and custom dimensions.
| Custom component | Typical OEM product description |
|---|---|

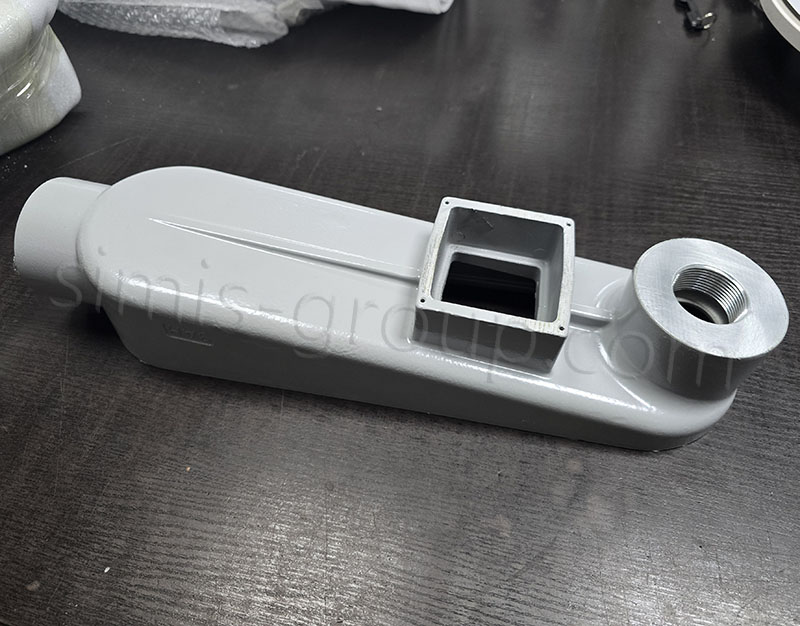

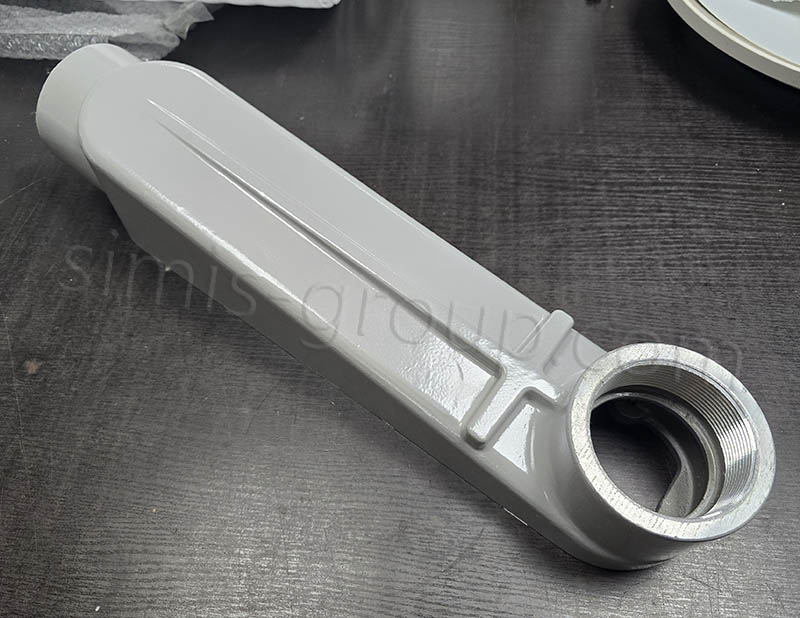

| LB conduit bodies | Elbow-type conduit bodies with rear-oriented access openings. |
| LL and LR conduit bodies | Side-access elbow conduit bodies for specified layouts. |
| C conduit bodies | Straight-through metal conduit bodies with removable covers. |
| T conduit bodies | Three-way conduit connection bodies with defined access openings. |

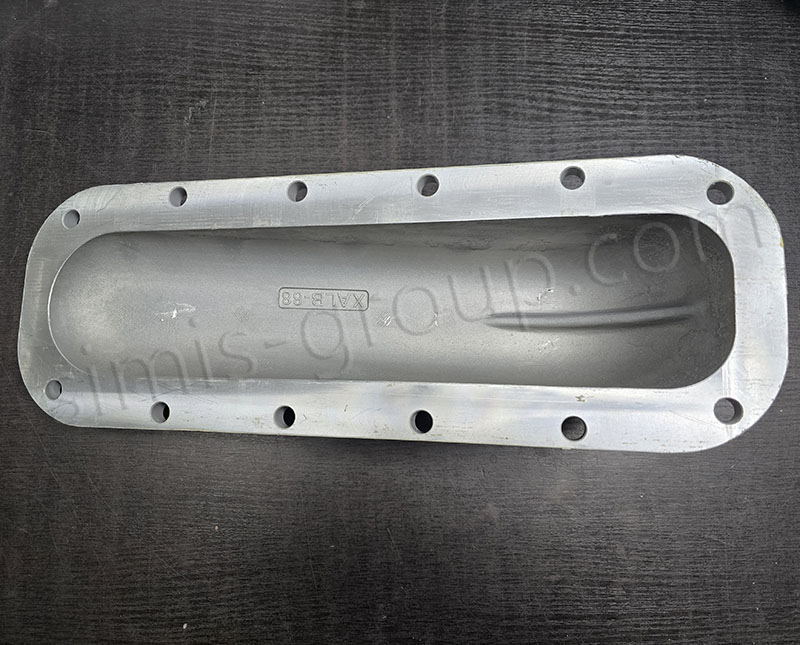

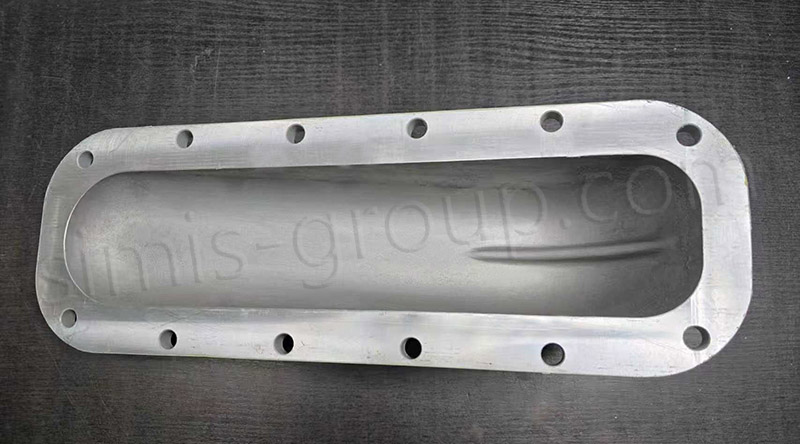

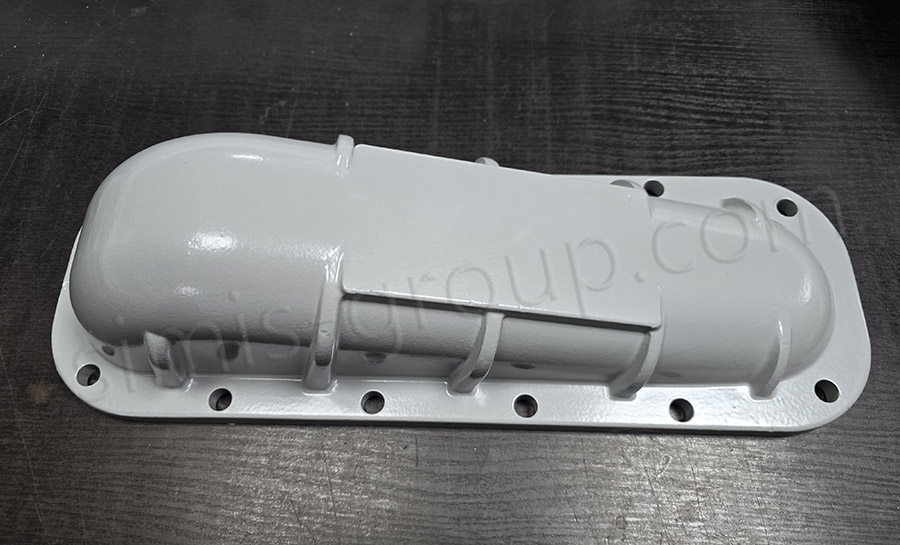

| Conduit body covers | Cast aluminum, iron or stainless steel cover parts and related metal interfaces. |
| Custom conduit fittings | Nonstandard bodies and connection features defined by the OEM. |
Component geometry, material grade and manufacturing condition vary between orders. SIMIS supplies customer-specific castings and forgings for both new equipment programs and suitable replacement-part production.
Related SIMIS product manufacturing capabilities include custom junction boxes. These may support compatible OEM programs using similar metal components.
Casting, Forging and Metal Manufacturing Processes for Custom Conduit Outlet Bodies & Covers
SIMIS supplies a range of customer-specified castings, forgings and other compatible metal components for this product category. Each manufacturing method is introduced below to show the kinds of OEM parts that can be supplied. The actual manufacturing process and required supply condition follow the customer’s approved drawings and order requirements.
| Manufacturing process | Typical custom parts and applications |
|---|---|
| Aluminum pressure die casting | Repeat-production lightweight conduit bodies and covers. |
| Sand casting | Heavy-duty cast iron bodies and larger metal fittings. |
| Shell mold casting | Compatible iron or steel conduit fitting castings. |
| Stainless steel investment casting | Selected corrosion-resistant bodies and covers. |

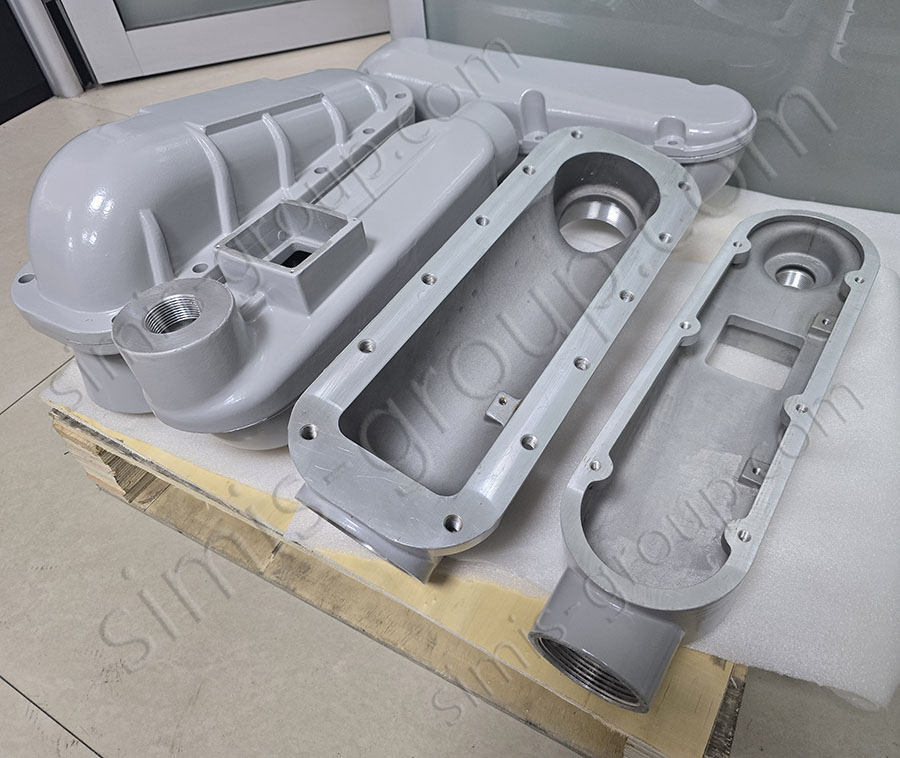

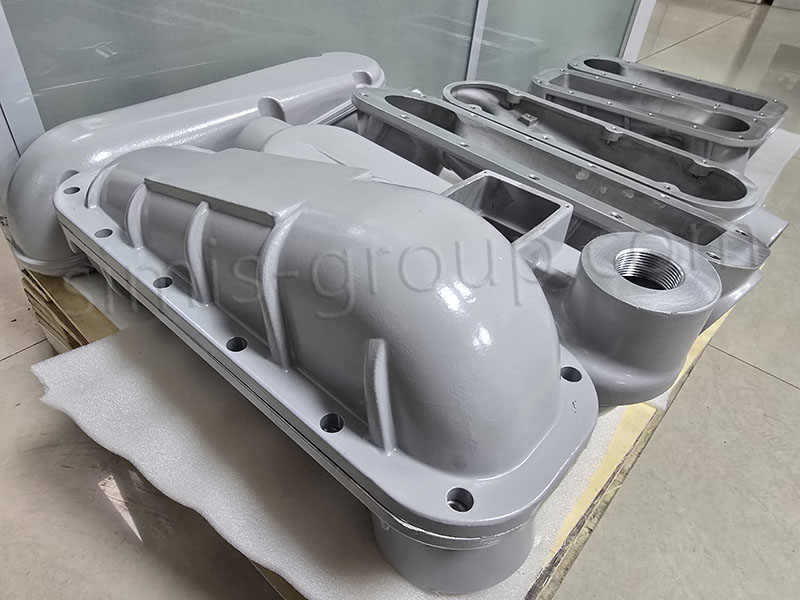

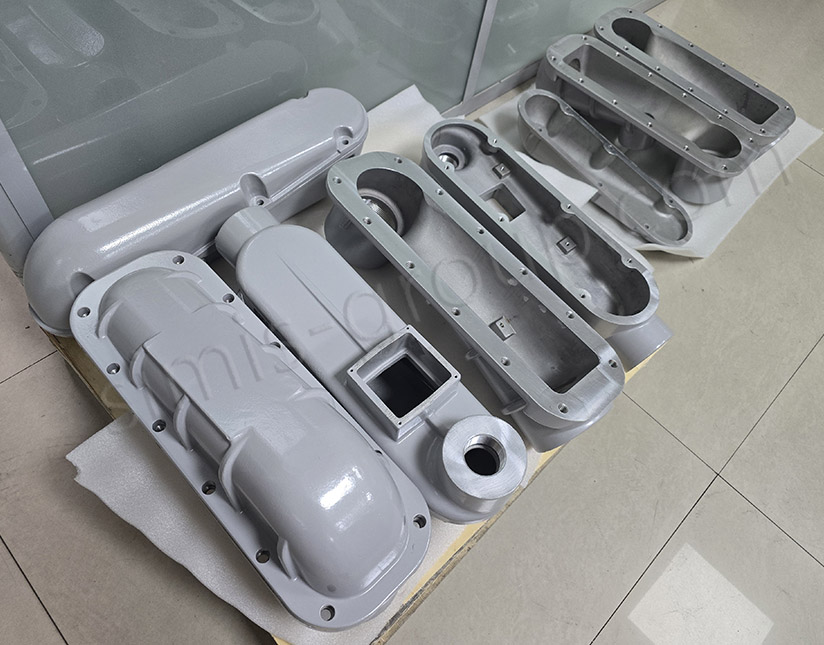

Aluminum Die-Cast Conduit Bodies and Covers
High-pressure aluminum die casting is suitable for many repeated-production conduit access bodies and removable covers. LB, LL, LR, C and T configurations can incorporate the relevant cast hubs and cover openings, with the finished form following the customer’s approved drawing.
Cast Iron Conduit Bodies
Sand casting is used for suitable cast iron conduit bodies, including substantial industrial fittings. Shell mold casting is another route for selected repeat-production iron or steel fittings. Both are relevant to metal conduit products but represent different molding processes.
Stainless Steel Investment Castings
Investment casting can be used for suitable corrosion-resistant stainless steel conduit bodies, hubs and cover components. SIMIS quotes the specified casting grade and shape. The metal casting is only one part of an electrical fitting whose final product classification is determined by the responsible OEM.
Related SIMIS manufacturing services: aluminum die casting, sand casting, investment casting. The service quoted for a particular part is determined from the customer’s specified material, drawing and production quantity.
Materials Used for Custom Custom Conduit Outlet Bodies & Covers
Different metal grades and product forms are used across these components. SIMIS manufactures suitable parts according to the alloy or material grade specified by the customer. The following material descriptions explain common product families and their manufacturing forms, without replacing a customer’s material specification.
Aluminum Conduit Casting Grades
Cast aluminum is common for lightweight metal conduit bodies and matching covers. The customer selects the alloy and manufacturing method. A die-cast aluminum fitting and a sand-cast iron fitting are different product families even when their external entry configuration is similar.
Gray and Ductile Iron
Cast iron bodies may be specified for heavy-duty industrial conduit fittings. Gray iron and ductile iron have different material characteristics, so the required casting grade must be identified for the particular order.
Corrosion-Resistant Cast Stainless Steel
Appropriate cast stainless steel grades can be considered for specified conduit bodies and covers. The alloy affects corrosion behavior, but the complete assembled fitting’s electrical and environmental ratings cannot be inferred solely from its stainless steel material.
Material grade, manufacturing condition, machining, heat treatment, coating and inspection are included only as specified by the customer. We supply the agreed casting, forging or finished metal component, while the customer determines the requirements of the complete equipment.
Applications of Custom Conduit Outlet Bodies & Covers
These custom metal components serve different OEM industries and equipment models. The applications below illustrate where corresponding product types may be used; exact suitability is determined by the customer’s own equipment design.
Industrial electrical installations
Conduit access fittings for factory equipment. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Commercial building systems
Metal conduit bodies for specified electrical raceway systems. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Outdoor installations
Customer-defined weather-exposed fittings and cover parts. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Machinery and infrastructure
Special conduit components for OEM equipment manufacturers. SIMIS supplies suitable individual metal parts according to the specified design and project quantity.
Custom OEM Supply Scope and Ordering Information
As a custom metal parts supplier, SIMIS accepts manufacturing inquiries for castings, forgings and finished components produced to customer drawings. This includes suitable repeat-production programs as well as specified initial orders or sample quantities.
For an efficient quotation, please send the following basic information:
Product drawing: 2D engineering drawing or available STEP / 3D CAD model.
Specified material: Required alloy or grade and any approved material condition.
Order volume: Required quantity and anticipated repeat demand, if applicable.
Supply condition: Raw casting or forging, finished component or other processing explicitly requested in the drawing.
SIMIS will review the submitted product information and prepare a quotation for the agreed scope. The OEM remains responsible for specifying the relevant product interfaces, system-level performance and any required equipment approval.
For Custom Conduit Outlet Bodies & Covers and other OEM metal components, contact SIMIS: info@simis-group.com
