Custom Street Light Pole Base Manufacturer
Street Light Pole Base
Frequently Asked Questions About Custom Street Light Pole Bases
1. What street light pole base components does SIMIS manufacture?
SIMIS manufactures custom metal street light pole bases, decorative lamp post base covers, cast pole collars, flanged mounting bodies and related attachment parts according to OEM drawings. Products may be used on municipal lighting columns, park lamp posts, commercial decorative poles and industrial lighting installations. The primary production methods are iron, steel and aluminum alloy casting. Selected separate anchor or connection fittings may use steel forging. We supply specified metal components, not automatically a complete lighting pole or installed foundation system.
2. Can SIMIS supply ductile iron and gray iron lamp post bases?
Yes. Sand casting is a principal process for suitable ductile iron and gray iron street lamp pole bases, including ornamental base sleeves, tapered housings and larger cast components. Shell mold casting or lost foam casting may be considered for certain profiles. ASTM A536 ductile iron and ASTM A48 gray cast iron are different material families; the appropriate grade must be specified for the intended part. Gray iron should not be assumed suitable for a highly stressed structural anchor connection merely because it can be cast into a base shape.
3. Can aluminum street light pole bases be gravity cast?
Yes. Gravity permanent mold casting is an option for compatible aluminum alloy pole bases and decorative sleeves, particularly with repeatable shapes. A356 is a casting aluminum alloy that may be specified for suitable products. Sand casting may also be appropriate for larger shapes and lower quantities. Aluminum casting grades are separate from 6061 or 6082 wrought aluminum alloys, and all structural mounting requirements must be confirmed in the customer documents.
4. Does SIMIS manufacture load-bearing bases or decorative pole covers?
SIMIS can quote approved load-bearing metal base components as well as decorative cast base covers. A structural base may form part of the pole-to-foundation load path and requires customer-defined bolt pattern, material strength and structural requirements. A decorative cover typically conceals anchor bolts, a base plate or cable entry points and must not be represented as the component that resists the pole's wind loads unless the approved design assigns it that function. SIMIS supplies castings and forgings to the agreed scope.
5. What information is needed for a custom lamp pole base quotation?
Please send 2D drawings or available 3D models, the base or cover type, specified material grade, principal dimensions and required production quantity. Useful dimensions include the pole socket or cover opening, base footprint, bolt-circle pattern, anchor-hole sizes and any cable access features. State whether the part is decorative or structural and provide the relevant finish and environment requirements. Send your OEM inquiry to info@simis-group.com.
OEM Custom Street Light Pole Base Casting Manufacturer
Custom street light pole bases are metal components installed at the bottom of street lighting columns, decorative lamp posts and other outdoor lighting structures. Depending on the installation, a pole base can be an engineered structural connection, a protective lower housing, an ornamental cover or a combination of approved functions.
SIMIS specializes in custom cast iron street lamp bases, ductile iron lamp post base castings, cast aluminum pole bases, cast steel pole support components and decorative metal base covers. We manufacture suitable metal parts according to OEM drawings, customer-selected alloys and the agreed supply condition.
The appearance of a street light pole base can vary from a simple circular or square flange to an elaborate tapered pedestal with ribs, raised patterns and integrated cable-entry openings. Casting is particularly useful for these shapes because the mold can reproduce ornamental external profiles and compatible internal features.
Street lighting products often contain several distinct parts: the column or pole, a base flange or other structural connector, foundation anchors, the electrical installation and an optional cast decorative shroud. These items are not interchangeable. For example, a substantial decorative cover may conceal the actual base plate while carrying little or no designed bending load.
SIMIS provides metal castings, appropriate steel forgings and specified finished parts rather than automatically certifying a complete pole and foundation assembly. Our related manufacturing sectors include municipal engineering parts and electrical and lighting parts.
Types of Cast Lamp Post Bases, Pole Base Covers and Mounting Components
Custom street light bases differ in geometry, function and manufacturing material. Some products are designed primarily to match an architectural style; others are specified as part of the mechanical connection between a pole and its foundation. SIMIS produces these metal parts according to customer-defined dimensions and drawings.
| Product Type | Typical Features | Manufacturing Considerations |
|---|---|---|

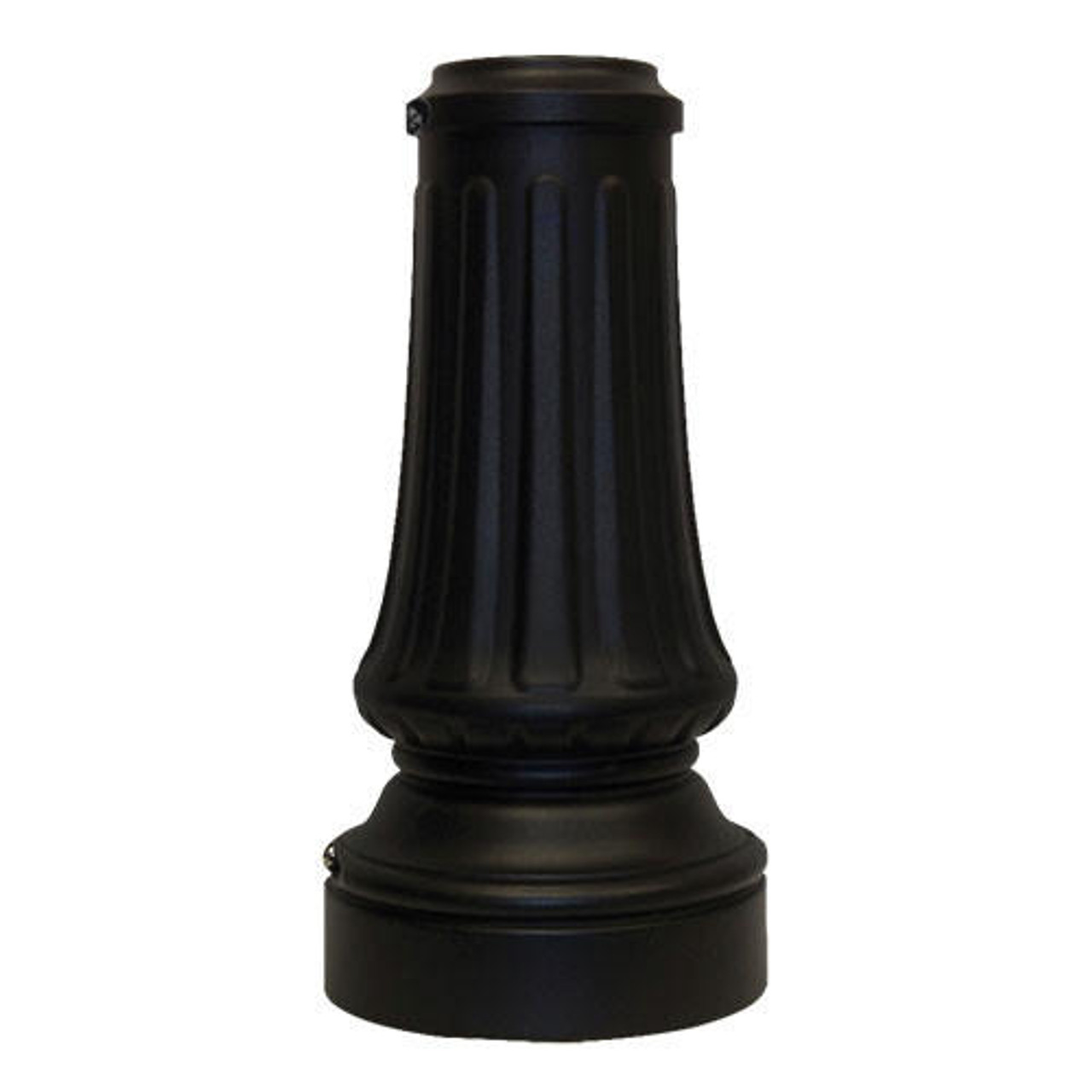

| Decorative Cast Lamp Post Base Cover | Tapered, fluted or patterned shroud with a round, square or polygonal footprint. | Sand-cast or shell-cast iron; suitable aluminum casting for lighter covers. |
| Cast Pole Base Pedestal | Hollow or solid cast base body with pole socket or attachment areas. | Cast ductile iron, steel or aluminum depending on the approved structural role. |

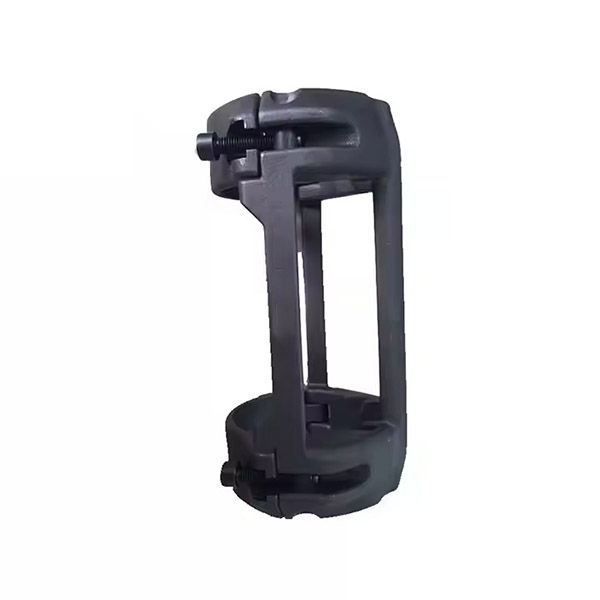

| Cast Base Collar and Sleeve | Cylindrical or split cover around the lower pole and fastening interface. | Cast iron or aluminum with customer-specified joining details. |

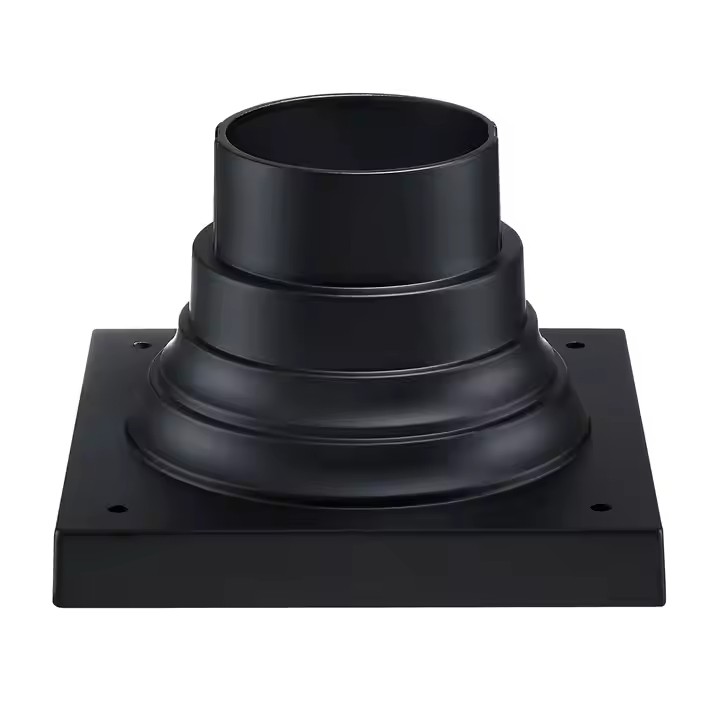

| Structural Flanged Base Component | Mounting body or flange with defined bolt holes and pole connection. | Material and manufacturing route require structural approval; casting or fabricated/forged steel as specified. |
| Cable Access Base Housing | Base casting with openings, recessed panels or service access. | Sand or lost foam casting for suitable integrated features. |

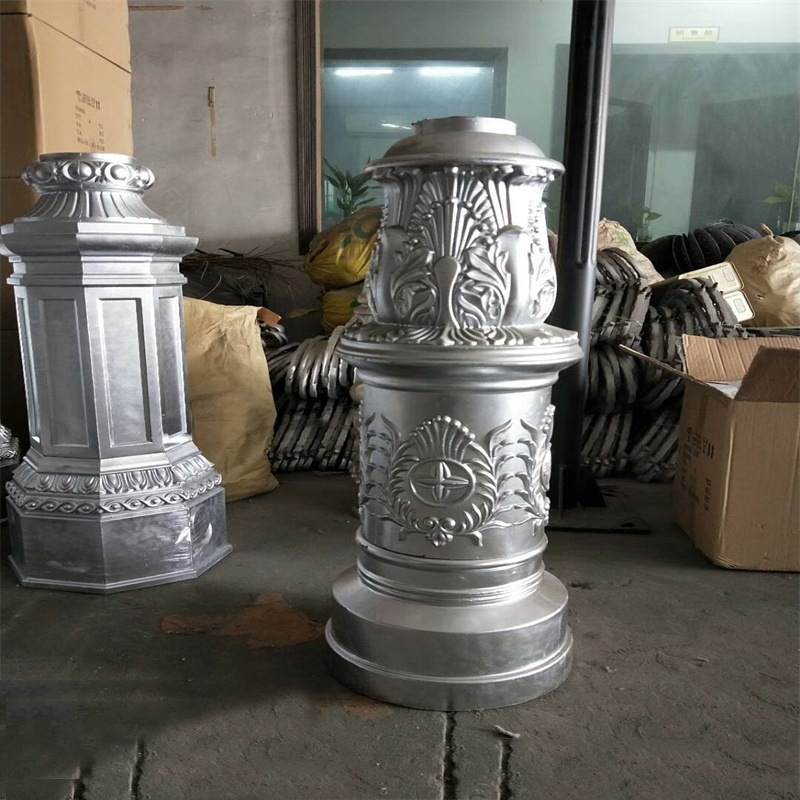

| Decorative Architectural Pole Base | Ornamental contours and repeated surface patterns for streetscapes. | Shell mold casting, sand casting or approved aluminum mold casting. |
| Separate Anchor and Connection Fittings | Specified steel brackets, connecting pieces or anchor-related hardware. | Steel fabrication or suitable steel forging, separate from the decorative casting. |

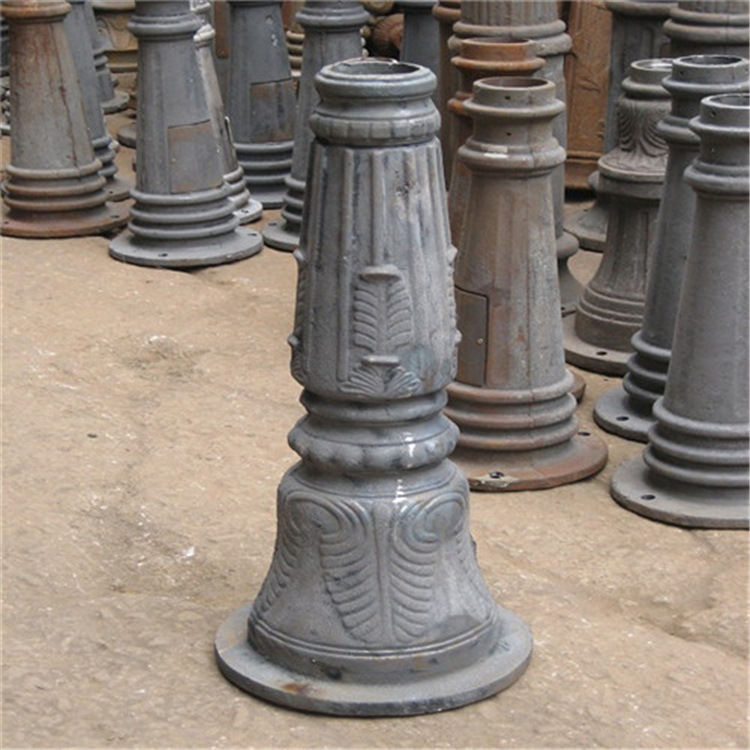

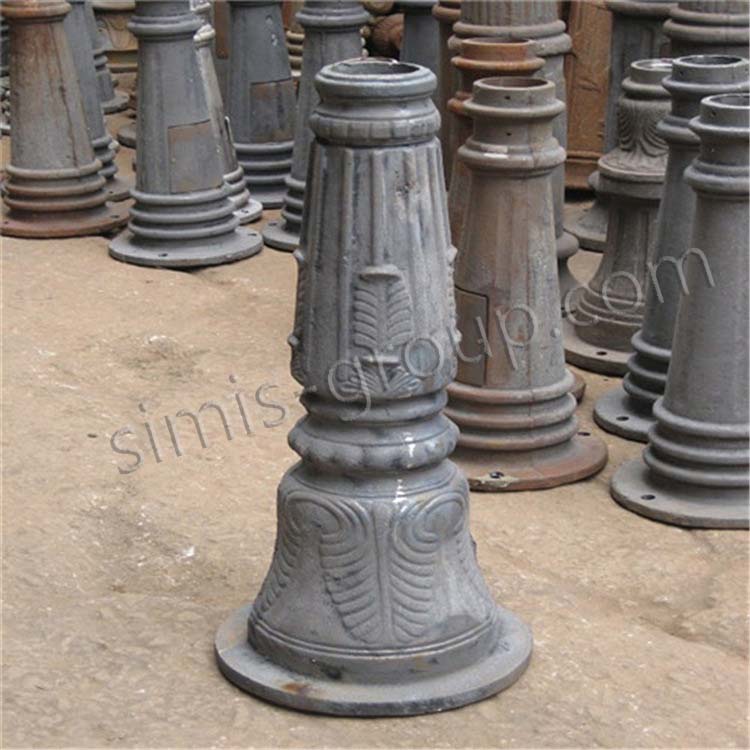

Decorative Cast Iron Street Lamp Base Covers
Decorative bases can feature traditional ribbed profiles, leaf patterns, geometric bands and pedestal-shaped surfaces. Cast iron is a practical material for compatible ornamental details. The cover may hide the base plate and exposed mounting hardware, improving the appearance of the installation while remaining a separately specified component.
Structural Pole Base Connectors and Mounting Flanges
Structural pole base connections transfer loads between the pole and its supporting foundation. Where a cast mounting component is specified, its alloy, wall geometry, bolt arrangement and acceptance criteria must follow the approved structural design. Cast decorative housings should not be substituted for engineered steel base plates, anchors or structural flanges without explicit approval.
Aluminum Pole Base Sleeves and Access Housings
Cast aluminum provides a lightweight option for appropriate decorative sleeves and housings. A356 and other specified cast aluminum grades may be used for compatible products. The cover geometry can include mounting ears, bolt recesses or cable access details, subject to casting feasibility and the OEM drawing.
Sand Casting, Shell Mold Casting, Lost Foam Casting and Aluminum Gravity Casting
Metal casting is the principal manufacturing route for the street light pole bases shown on this page. SIMIS selects processes according to the metal grade, base size, wall thickness, decorative complexity, quantity and specified supply condition. Steel forging is relevant mainly to selected associated connecting parts rather than a typical ornate cast lamp base.
| Manufacturing Process | Suitable Metal Parts | Key Application Notes |
|---|---|---|
| Sand Casting | Large ductile iron, gray iron and cast steel base bodies; selected aluminum bases. | Flexible tooling approach for customized larger castings, hollow sections and decorative profiles. |
| Shell Mold Casting | Compatible repeat-production ductile iron and cast steel ornamental bases. | Resin-bonded sand molds can reproduce suitable surface detail and mounting features. |
| Lost Foam Casting | Selected gray iron, ductile iron or aluminum bases with integrated cavities. | Expendable patterns may accommodate suitable complex sections and cable openings. |
| Gravity Permanent Mold Casting | Suitable A356 aluminum alloy bases, collars and covers. | Reusable metal molds for compatible aluminum shapes and production volumes. |
| Investment Casting | Small ornamental stainless steel or alloy steel base fittings and premium details. | Lost-wax ceramic molding is generally more relevant to smaller intricate parts than large lamp posts. |
| Steel Forging and Fabrication | Separate structural brackets, connection fittings and selected mounting hardware. | Used where the approved design calls for wrought or forged steel; not a substitute for the cast ornamental body. |
| Specified Machining and Coating | Anchor holes, mating faces, access features and outdoor finishes. | Performed only as required by the approved product drawing and purchasing documents. |
Sand Casting of Ductile Iron and Gray Iron Lamp Bases
In sand casting, a mold cavity is prepared to reproduce the external shape and any appropriate internal features of the metal component. Molten iron or steel is introduced, allowed to solidify and removed for cleaning. SIMIS uses sand casting to produce suitable large and medium-sized cast metal components.
For lamp posts, the sand casting process is relevant to tapered ornamental bases, larger hollow covers and specified supporting castings. Ribs, recesses and decorative bands may be incorporated into the casting when the geometry is suitable. The approved metal grade and intended load function remain separate technical decisions.
Shell Mold Casting for Ornamental Metal Details
Shell mold casting uses resin-bonded sand to form a shaped mold shell. It may be selected for repeat-production decorative bases and metal fittings with suitable dimensions and surface features. SIMIS offers shell mold casting for compatible ductile iron, cast steel and other selected metal components.
An ornamental shell-cast lamp base may have repeated flutes, decorative edges and other aesthetic elements. The process does not itself prove structural wind-load performance, which depends on the complete design and specified acceptance requirements.
Lost Foam Casting for Integrated Hollow Base Shapes
Lost foam casting is an option for selected cast lamp bases containing complex contours or internal cable passage geometry. The expendable foam pattern is replaced by molten metal during casting. SIMIS provides lost foam casting for compatible gray iron, ductile iron, aluminum and other approved alloys.
This method may reduce the need for some conventional mold divisions on suitable designs, although feasibility depends on the exact part and casting grade. Cable entrances and access openings must be positioned as stated on the OEM drawings.

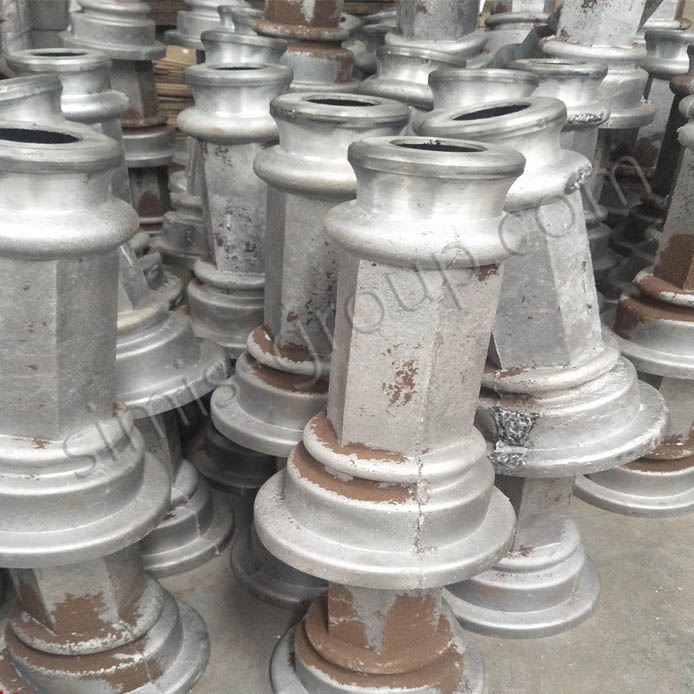

Gravity Permanent Mold Casting for Aluminum Lamp Bases
Gravity permanent mold casting uses a reusable metal mold and molten aluminum alloy introduced under gravity. For suitable volumes and shapes, this process can provide repeatable aluminum base housings and decorative collars. SIMIS offers gravity permanent mold casting for compatible aluminum components.
A356 is a cast aluminum alloy used in appropriate gravity-cast parts. It must not be described as wrought 6061 or 6082 aluminum. Structural mounting applications need their own approved alloy condition and acceptance criteria.
Investment Casting and Forging for Specialized Fittings
For smaller ornate stainless steel brackets, inserts or specialty metal fittings, investment casting may be appropriate. Stainless steel cast grades must be specified separately from wrought 304 and 316 grades.
Selected separate steel anchor-related fittings or connection parts may also be produced using custom steel forging or closed-die steel forging where the shape and requirements are compatible. This does not mean the complete decorative street light base is normally forged.
Ductile Iron, Gray Iron, Cast Steel, Cast Aluminum and Stainless Materials
Material selection for a street light pole base must account for the actual component function. A decorative enclosure, a cast base housing and an engineered structural connection may call for different alloys and acceptance criteria. SIMIS supplies castings and related metal parts in grades identified by the OEM.
| Material or Grade | Relevant Properties | Potential Street Lamp Base Use |
|---|---|---|
| ASTM A536 Ductile Iron | Spheroidal graphite cast iron with grade-dependent mechanical properties. | Specified cast pole bases, mounting housings and decorative covers where approved. |
| ASTM A48 Gray Cast Iron | Flake-graphite cast iron suitable for many ornamental and relatively noncritical cast parts. | Decorative fluted bases and base shrouds; not an automatic choice for tensile anchorage. |
| ASTM A27 / specified Cast Steel | Cast carbon steel materials supplied under applicable casting specifications. | Customer-approved structural base bodies and mounting components. |
| A356 Cast Aluminum Alloy | Aluminum-silicon-magnesium casting alloy, distinct from wrought aluminum grades. | Lightweight cast base sleeves, decorative housings and approved mounting parts. |
| Stainless Steel Castings such as CF8 / CF8M | Cast corrosion-resistant grades specified by relevant casting standards. | Selected premium outdoor fittings and small decorative or supporting cast parts. |
| Wrought 304 / 316 Stainless Steel | Wrought stainless steel grades with environment-dependent corrosion resistance. | Separate formed or fabricated pole base brackets and fittings. |
| AISI 1045 / specified Forging Steel | Wrought steel used for selected suitable formed or forged mechanical fittings. | Separate approved anchor-related parts or connectors, not a default cast base grade. |
Ductile Iron and Gray Iron Lamp Post Bases
Ductile iron and gray iron are different casting materials. Ductile iron under ASTM A536 has spheroidal graphite and provides grade-dependent tensile and ductility characteristics. Gray iron under ASTM A48 contains flake graphite and can be appropriate for detailed ornamental castings where its mechanical limitations are acceptable.
For outdoor lighting, SIMIS can manufacture corresponding iron casting products to customer-specified material grades. The use of a heavy cast iron cover does not by itself establish how wind or overturning loads are transferred to the foundation.
Cast Steel for Approved Pole Base Support Components
Steel castings can be suitable for certain engineered mounting housings or support components where the design and applicable material standard permit casting. ASTM A27 is one potential specification for cast carbon steel, while other alloy casting standards may apply to customer-defined products.
SIMIS supplies steel casting components according to the material grade, drawings and required supply condition. Structural connection features and anchor-bolt arrangements are not assumed to be universally interchangeable between installations.
A356 Cast Aluminum and Stainless Steel Castings
A356 cast aluminum can be used for suitable decorative or lower-mass bases and sleeves, including compatible components made through gravity permanent mold casting. Its cast alloy chemistry and properties differ from wrought aluminum grades used for forging.
For selected premium outdoor parts, cast stainless grades such as CF8 and CF8M may be specified under appropriate standards. The common wrought labels 304 and 316 are not automatically the exact designation for the corresponding cast product. Actual corrosion resistance also depends on service environment, finish and maintenance conditions.
Applications of Custom Cast Street Light Pole Bases
Custom street light pole bases are used in outdoor public lighting, municipal streetscapes and commercial installations. SIMIS manufactures different metal base and cover designs according to the equipment supplier's drawings and specific outdoor exposure requirements.
Municipal Streets, Roads and Public Squares
Municipal light poles may use cast decorative pedestal covers, cast collars or approved base components. These products can conceal foundation anchor details while creating a consistent architectural appearance along a road or public square. Any structural wind-load and anchorage requirements belong to the approved pole and foundation design.
Parks, Gardens and Heritage-Style Lighting
Parks and heritage-style streetscapes often use decorative lamp post bases with fluted, tapered or patterned surfaces. Sand-cast and shell-cast iron can be considered for such shapes. Cast aluminum offers another option for selected lightweight covers and architectural fittings.
Commercial Properties, Hotels and Industrial Parks
Commercial and industrial lighting projects may require customized base shapes, access panels and mounting features. SIMIS produces specified metal bases and covers for appropriate decorative or functional outdoor lighting installations. The material and surface finish can be selected for the intended operating environment.
Coastal and Weather-Exposed Lighting
Coastal or moisture-exposed locations may require corrosion-resistant materials and protective finishes. Suitable aluminum alloys, stainless grades or coated iron and steel products can be considered according to the customer specification. No single base material guarantees a fixed corrosion life in every marine, roadside-salt or industrial atmosphere.
OEM Street Lamp Base Castings Manufactured to Customer Drawings
SIMIS supplies custom street lamp base castings and related metal components for OEM lighting manufacturers and municipal equipment suppliers. Product scope includes decorative base covers, cast base housings, pole collars, specific mounting components and selected additional brackets.
Our manufacturing options include iron and steel sand casting, shell mold casting, lost foam casting, gravity permanent mold casting for aluminum and investment casting for selected small premium components. Suitable steel fittings can be forged or fabricated when specified. These services support different part sizes, patterns and order volumes.
Customers may purchase raw castings, prepared metal blanks or finished components according to the order. When required, mating faces, bolt holes, surface coatings and inspection documentation are produced under the approved technical documents. SIMIS does not assume every pole base requires the same coating system, inspection procedure or structural acceptance criteria.
For decorative covers, the emphasis is on the approved profile, material, fit and appearance. For structural base components, the customer must specify the mechanical load path, approved anchorage details and applicable standards. A base cover should not be assigned a wind rating or crashworthiness characteristic merely because the product is used at the foot of a light pole.
For related OEM lighting applications, SIMIS also manufactures lighting and lamp housing parts and other custom metal fittings. Final pole assembly, wiring, foundation installation and project-specific regulatory compliance remain outside the scope of a casting-only order unless explicitly agreed.
Request a Quote for Custom Street Light Pole Bases and Decorative Covers
SIMIS welcomes OEM inquiries for cast iron lamp post bases, ductile iron pole pedestals, cast aluminum street light base sleeves, cast steel mounting components and customized decorative covers. We manufacture metal parts according to customer drawings, material specifications and the agreed purchasing scope.
For a quotation, please provide the following information where available:
Product drawings: 2D drawings or available 3D CAD models showing the required base geometry.
Component type: Decorative cover, pole collar, cast base body, structural mounting component or separate connector.
Material grade: Specified ductile iron, gray iron, cast aluminum, cast steel or stainless casting material.
Key dimensions: Overall height, base footprint, pole opening, bolt pattern, cable access and joining details.
Order requirements: Estimated quantity, indoor or outdoor exposure, specified finish and any approved structural load requirements.
Any specified testing, coating documentation, fitting tolerance or project acceptance standard can be supplied with the approved purchasing documents. SIMIS will quote the appropriate manufacturing and delivery scope without assuming system-level certification for each metal casting.
Send your custom street light pole base drawings and OEM inquiry to SIMIS: info@simis-group.com
