Custom Generator End Cover Manufacturer
Generator End Cover
Custom Generator End Covers: OEM Manufacturing FAQs
Can SIMIS manufacture generator end covers from our drawings?
Yes. SIMIS supports OEM manufacturing of custom generator end covers, end bells and bearing end shields according to customer drawings. Depending on the design, manufacturing can include gray iron or ductile iron casting, aluminum alloy casting, CNC machining, heat treatment and protective finishing. We review the bearing interface, locating diameter, mounting pattern, material specification and production quantity before proposing a manufacturing route.
Which casting process is suitable for generator end covers?
Sand casting is often considered for large cast iron end bells and industrial generator components. Shell mold casting may suit smaller or medium-sized iron parts produced repeatedly. Aluminum end covers may be candidates for gravity permanent mold casting or high-pressure die casting, depending on the geometry, production quantity and quality requirements. The best process cannot be determined by generator power rating alone.
Can the bearing bore and locating pilot be CNC machined?
Yes. The bearing pocket, housing locating register, mounting flange and bolt-hole pattern can be machined according to the specified datums and tolerances. Critical requirements may include bearing-bore diameter, cylindricity, positional accuracy and perpendicularity of mounting faces. The correct bearing fit depends on the bearing arrangement, thermal conditions and assembly design; a single universal tolerance is not suitable for every generator.
Can SIMIS manufacture both cast iron and aluminum generator end caps?
SIMIS supports drawing-based iron and aluminum casting projects. Cast iron may be considered where stiffness, structural mass and vibration behavior are important, while aluminum alloys can be attractive where reduced component weight, heat transfer or thin-wall geometry is required. The applicable grade and casting method must be reviewed against the actual generator design rather than selected from appearance alone.
What information should be provided for a generator end cover quotation?
Please send 2D technical drawings, an available 3D model, material grade, overall dimensions, approximate weight, bearing type and size, locating pilot details, mounting pattern, required machining tolerances, surface finish and estimated order quantity. If the cover includes a seal, cooling opening or special environmental requirement, include the corresponding specifications and inspection criteria.
OEM Cast Generator End Covers, End Bells and Bearing End Shields
A generator end cover closes or supports one end of a generator frame. Depending on the machine design, it may also locate a rolling bearing, support a bearing housing, provide attachment points for a seal or participate in the generator's ventilation arrangement. These components are also described as generator end bells, bearing end shields or alternator end covers.
The functional requirements of a generator end cover differ from those of the main machine frame. The cover must connect correctly to the mating housing while supporting the specified bearing arrangement and preserving appropriate clearances. A small automotive alternator cover and a large industrial generator end bell can therefore require substantially different materials, casting methods and inspection procedures.
SIMIS supplies drawing-based cast and machined metal components for industrial equipment. Customers developing a complete machine enclosure can also review our custom motor housing manufacturing capabilities, which address the related but distinct requirements of full motor frames and enclosures.
Critical Generator End Cover Functions and Interfaces
Bearing support and load transfer

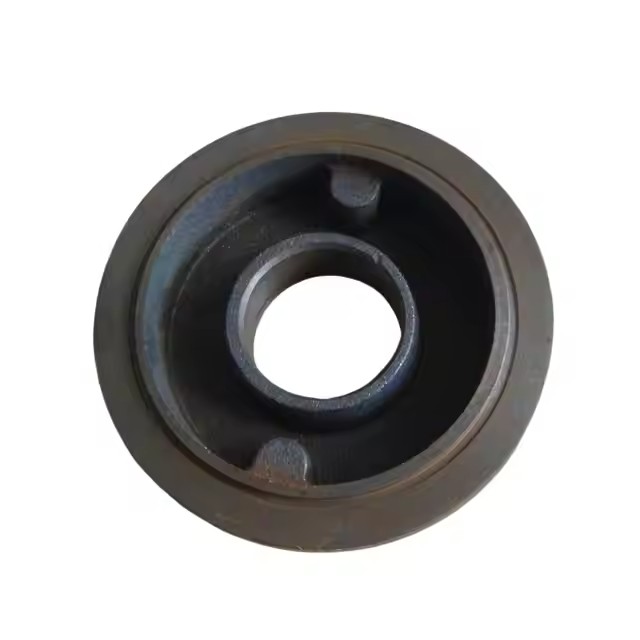

Where the end cover contains a bearing seat, it transfers specified bearing reactions into the surrounding generator frame. The bearing pocket must accommodate the intended fit, contact geometry and thermal expansion. Radial and axial load arrangements vary between generators, so the bearing manufacturer's recommendations and the machine designer's assembly requirements are essential inputs.
Housing location and rotor alignment
The locating register or pilot helps position the end cover relative to the main frame. Bore location, pilot diameter, mounting-face geometry and bolt-hole position may all influence the assembled relationship between the bearing and generator housing. Machining the individual cover accurately is important, but final rotor alignment also depends on the opposite bearing support, shaft, frame and assembled interfaces.
Structural ribs and ventilation features

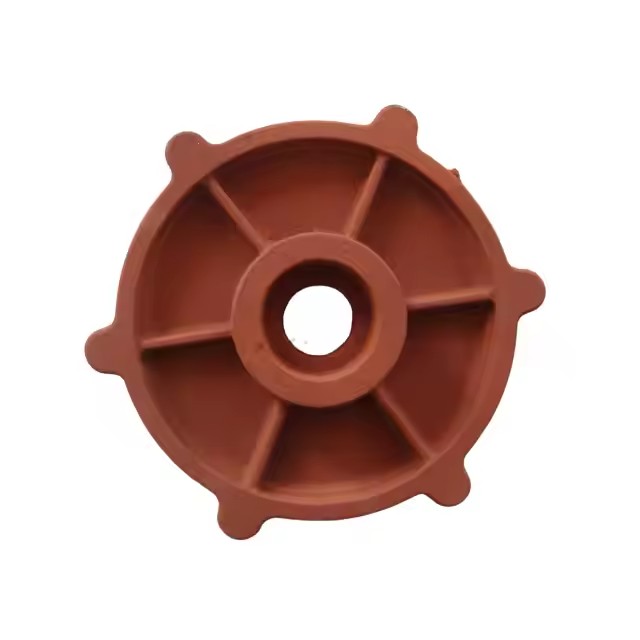

Reinforcing ribs can improve local stiffness without requiring the entire cover to have a thick uniform wall. Other designs incorporate ventilation openings, fan clearances or heat-dissipating features. These details must be compatible with mold filling, machining access, guarding requirements and the cooling system designed by the generator manufacturer.
Material Selection: Gray Iron, Ductile Iron and Aluminum Alloys
Generator end cover materials should be selected for their actual structural and thermal requirements. Bearing reaction loads, frame stiffness, overall mass, operating temperature, vibration, corrosion conditions and production volume all influence the choice. The material grade and relevant standard should be specified by the customer.
| Material | Potential Advantages | Engineering Considerations |
|---|---|---|
| Gray Cast Iron | Castability, machinability and useful material damping characteristics | Limited tensile ductility; grade and local loading require review |

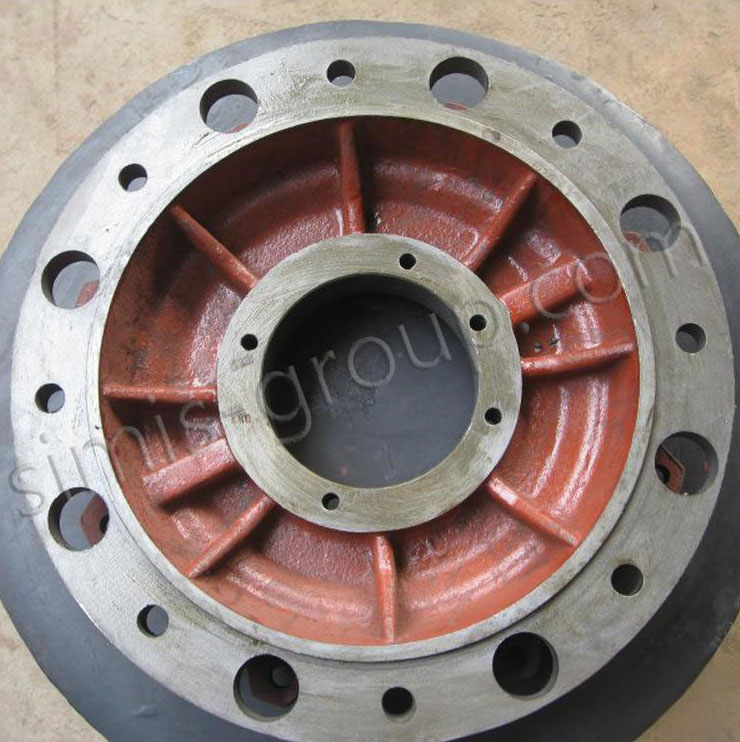

| Ductile Iron | Available strength and elongation grades for engineered bearing supports | Graphite nodularity, section thickness and casting integrity |
| Cast Aluminum Alloy | Low density, thermal conductivity and suitability for selected thin-wall shapes | Thermal expansion, bearing fit, strength and casting porosity |
| Other Specified Metals | Alternatives for specialized operating environments or structural designs | Material compatibility, production feasibility and cost |

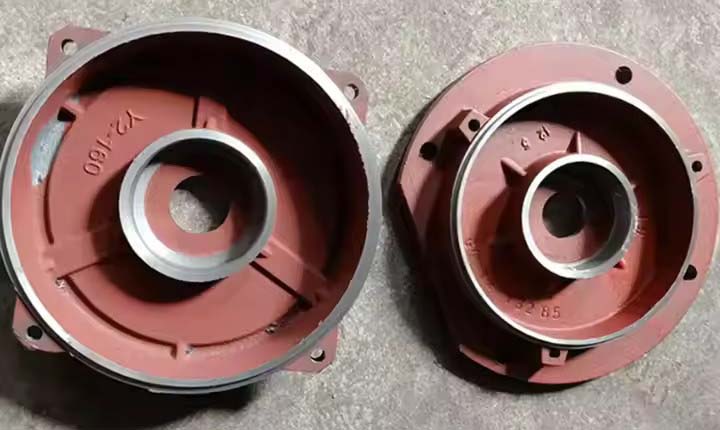

Gray iron may be a practical candidate for heavy industrial generator end bells, while ductile iron may be specified for components requiring different tensile properties. The distinction is explained further on our custom gray iron parts and custom ductile iron castings pages.
For aluminum covers, designers should pay particular attention to temperature-dependent bearing fits and the different thermal expansion of aluminum and steel. A suitable alloy, geometry and machining process must be selected for the operating environment. Aluminum is not automatically the best choice for every generator that requires improved cooling.
Casting Processes for Custom Generator End Covers
The selected casting route must produce the required external geometry while leaving sufficient machining stock on critical bearing and mounting interfaces. Casting size, rib design, material, annual volume and tooling economics should be reviewed together.
Sand casting for large generator end bells

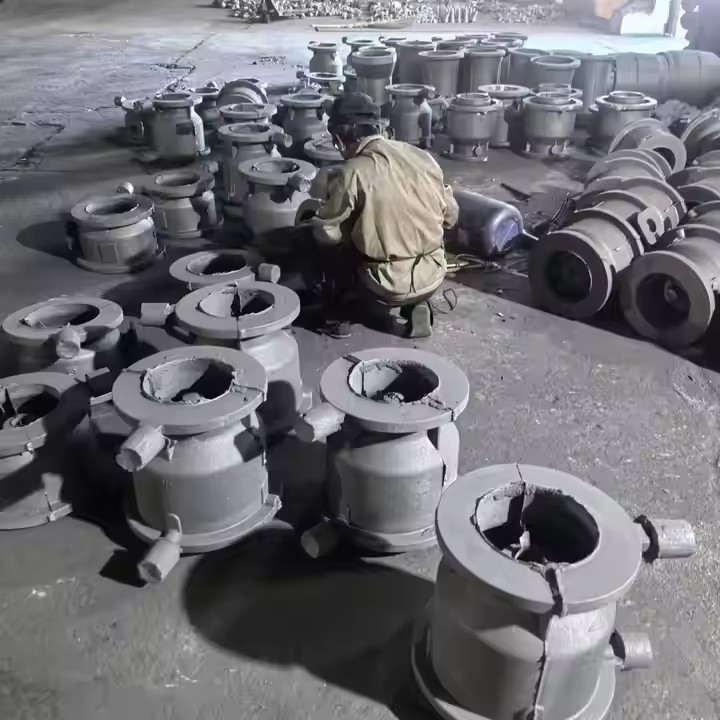

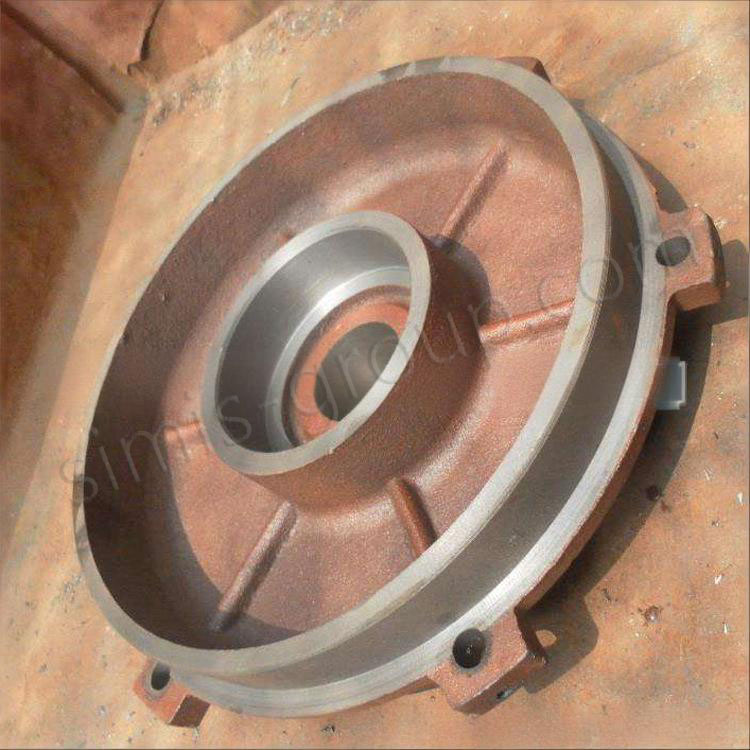

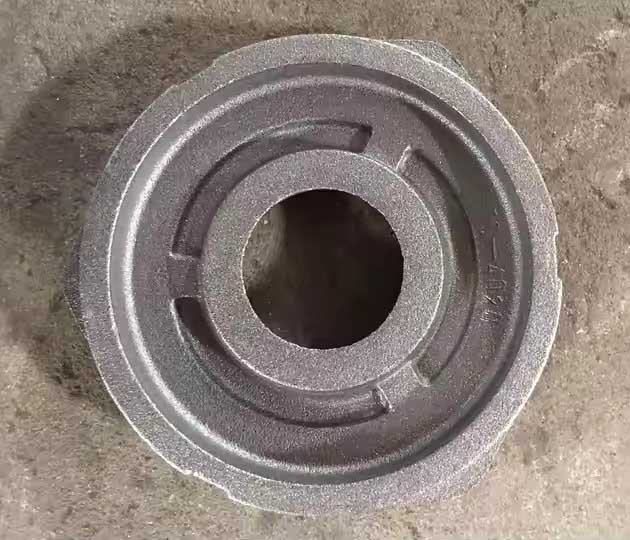

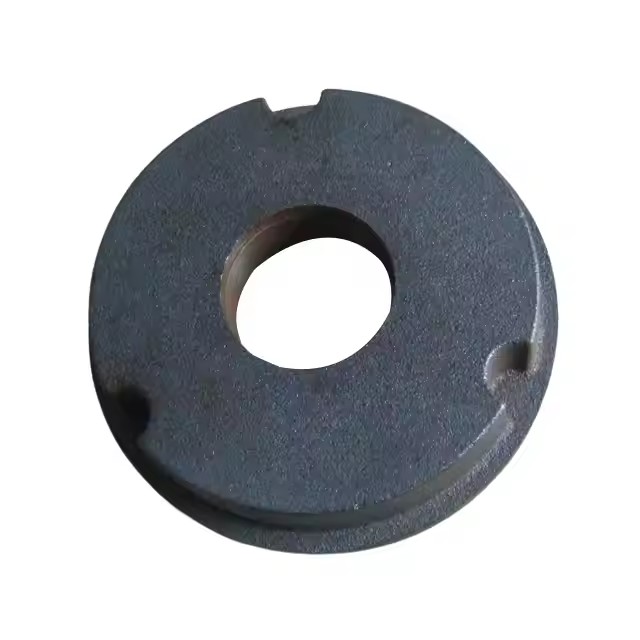

Sand casting can accommodate large cast iron end covers with central bearing bosses, outer mounting flanges and integrated strengthening ribs. Pattern design must consider parting lines, draft, feeding and the transition between thick bearing regions and thinner sections. Our sand casting foundry can assess drawing-based industrial end-cover projects.
Shell mold casting for suitable production volumes
Shell molding may be considered for smaller or medium-sized cast iron end covers requiring consistent mold definition and repeated production. It can offer useful dimensional control on as-cast features, although bearing bores and critical registers may still require machining. Tooling economics and casting size must be checked for each design. See SIMIS shell mold casting services.
High-pressure die casting for selected aluminum end caps
High-pressure die casting may be attractive for high-volume aluminum end caps with relatively thin walls, integrated ribs and detailed exterior geometry. Tooling investment can be significant, and the process must be evaluated for local porosity, bearing-boss quality, alloy properties and the possibility of later machining. SIMIS can review suitable pressure die casting projects.
Gravity casting and alternative complex-shape routes
For selected aluminum configurations, gravity permanent mold casting may be an alternative. Certain geometrically complex iron or aluminum covers may also be evaluated for lost foam casting. These routes require their own pattern, solidification and casting-quality review; no process guarantees a defect-free end cover.
| Process | Typical Design Fit | Points to Confirm |
|---|---|---|
| Sand Casting | Large iron end bells and structural covers | Feeding, wall thickness and machining stock |
| Shell Mold Casting | Suitable repeat-production iron covers | Tooling, size and as-cast dimensional requirements |
| High-Pressure Die Casting | High-volume aluminum covers with integrated ribs | Porosity, tooling investment and bearing-boss quality |
| Gravity Permanent Mold Casting | Selected aluminum end-cover geometries | Feeding, achievable features and production volume |
| Lost Foam Casting | Selected complex near-net-shape end covers | Pattern stability, process suitability and casting integrity |
Design for Manufacture: Ribs, Bearing Bosses and Wall Thickness
Generator end covers frequently combine a large circular flange, a central bearing housing and radial supporting ribs. This geometry can create abrupt section transitions and uneven solidification conditions. Casting design review should therefore address feeding, shrinkage, mold filling and machining access, not only the finished outside dimensions.
The central bearing boss deserves particular attention because it may be both relatively thick and dimensionally critical. The mold should provide enough material for final boring while avoiding unnecessary localized mass. Fin and rib geometry should be evaluated for casting feasibility, cleaning access and structural requirements. Thin fins may be suitable for some aluminum processes but impractical for a large iron casting made by a different method.
A DFM review may propose changes to fillets, draft angles or machining allowances. However, any change affecting bearing location, ventilation clearance, stiffness or mounting geometry should be approved by the generator designer before tooling is released.
Precision CNC Machining for Bearing and Mounting Accuracy
Casting produces the main geometry, but many generator end covers require CNC finishing for accurate assembly. SIMIS can assess precision CNC machining of bearing seats, housing pilots, mounting flanges and other functional interfaces.
Bearing bore diameter, cylindricity and fit
The bearing bore is often the most critical machined feature. Bore diameter, roundness, cylindricity and surface condition may affect the bearing's installed fit. Fit selection must consider operating temperature, bearing load, housing material and whether the bearing outer ring needs axial or radial freedom. A drawing-specified bore tolerance should not be replaced with a generic H7 claim without confirming the design.
Locating pilot and mounting flange geometry
The pilot diameter and mounting face help locate the end cover against the generator frame. Depending on the design, important controls may include pilot-to-bearing-bore position, flange-face perpendicularity, face flatness and the relationship between the machined datums. Whenever practical, the machining setup should reduce unnecessary datum changes.
Bolt-hole patterns and assembly clearances
The bolt circle, hole diameters, threaded locations and any dowel-pin features should match the mating frame. Installation access and appropriate fastener clearances must also be considered. Machining strategies should preserve the relationship between the mounting pattern and the functional locating features.
Sealing grooves and auxiliary mounting features
Certain end covers include seal recesses, grease fittings, inspection openings or accessory mounts. Their dimensions and surface finish depend on the specified mating components. The presence of a machined seal groove does not prove that the complete generator assembly has achieved a particular ingress-protection rating.
Cooling, Sealing and Surface Protection
Ventilation openings and heat dissipation

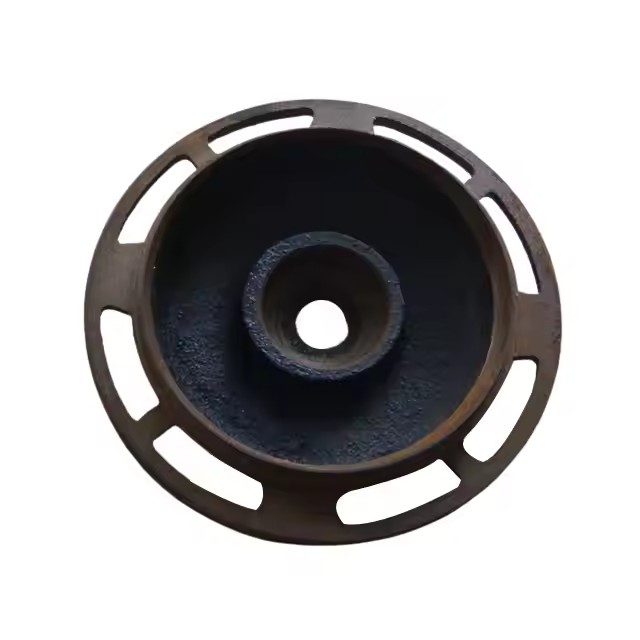

Some generator end covers incorporate ventilation openings, radial fins or other features that support the machine's cooling arrangement. Their effectiveness depends on the complete airflow path, fan design, rotational speed and heat sources. Additional fins or openings are not automatically beneficial if they interfere with airflow, structural stiffness or required environmental protection.
Environmental seals and ingress requirements
An enclosed generator may require gaskets, shaft seals, drain passages or other environmental features. A ventilated end cover has a fundamentally different sealing arrangement from a sealed housing. Pressure testing, leak testing or impregnation should therefore be applied only where the drawing and actual enclosure requirements justify them, not as mandatory operations for every end cover.
Cleaning, painting and corrosion protection
Iron castings may require blasting, cleaning and industrial coating, while aluminum parts may receive compatible finishes according to the operating environment. Bearing seats, pilots and gasket surfaces may need masking. SIMIS can discuss relevant surface treatment requirements for custom end-cover production.
Quality Control and Inspection of Generator End Covers
Inspection should focus on the cover's functional interfaces and the specified casting material. A project-specific quality plan may combine material verification, casting inspection, CMM measurement, bore gauging and documented examination of critical mounting features.
| Inspection Area | Project-Dependent Verification |
|---|---|
| Casting Material | Material grade, chemistry and specified mechanical properties |
| Bearing Seat | Bore diameter, roundness, cylindricity and surface condition |
| Locating Interfaces | Pilot dimensions, datum relationships, flange flatness and perpendicularity |
| Mounting Features | Bolt pattern, hole positions, threads and dowel locations |
| Casting Integrity | Visual examination and specified NDT in appropriate regions |
| Surface Finish | Machined surface roughness and specified protective coating |
| Documentation | First-article results, sampling records and traceability where agreed |
Bearing bore and geometric inspection
Critical features may be inspected using bore gauges, CMM equipment, height gauges and other appropriate measurement systems. The actual datum scheme should match the drawing. A measured bearing bore and pilot relationship provides component-level dimensional evidence, but does not independently verify the aligned condition of the assembled rotor.
Non-destructive testing and casting acceptance
Magnetic-particle examination for suitable ferrous materials, liquid-penetrant testing for applicable surface defects or ultrasonic testing may be specified as appropriate. Each method has material and geometry limitations. Test coverage and acceptance criteria must be defined; NDT cannot establish that every casting is completely free from all defects.
Vibration, rotor clearance and assembly-level validation
Generator vibration, rotor-to-stator clearance, bearing temperature, acoustic behavior and resonance depend on the complete assembled machine. A suitable end cover contributes to the required geometry and stiffness, but these system properties must be evaluated by the generator manufacturer. Casting and machining inspection should not be described as a substitute for machine-level validation.
SIMIS can review manufacturing inspection and documentation through its quality control processes. The reporting scope and acceptance criteria should be agreed before production.
Applications of Custom Generator End Covers
Industrial and stationary generator sets

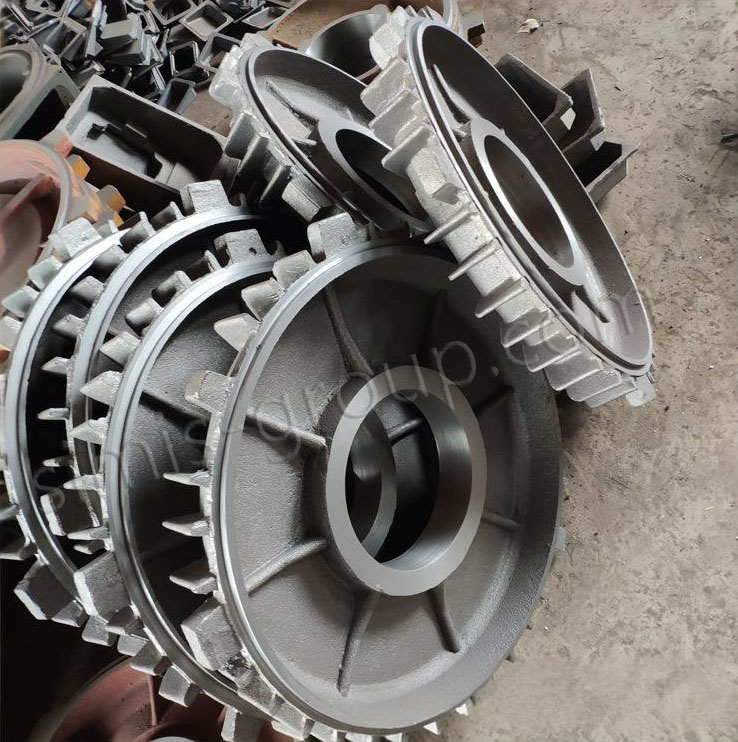

Large industrial generators may require robust cast iron end bells with substantial mounting flanges and accurately positioned bearing supports. Machine size, thermal conditions, foundation vibration and maintenance arrangements influence the design. The casting must match the approved generator frame and bearing configuration.
Automotive alternators and compact generators

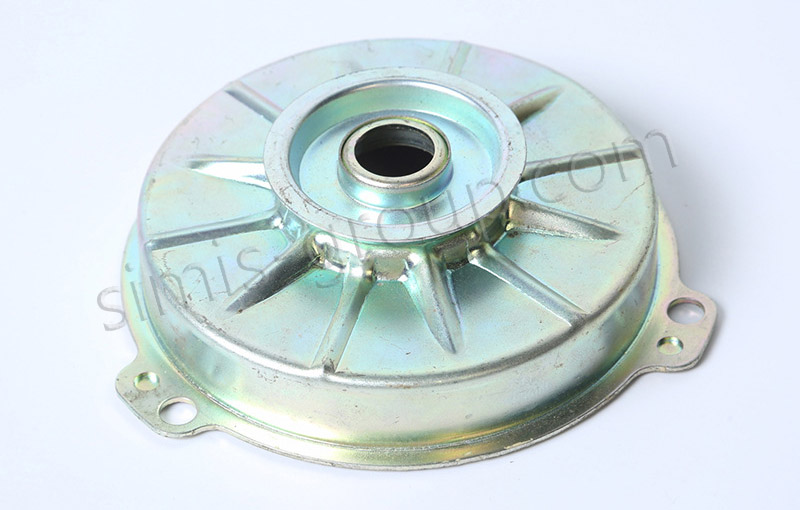

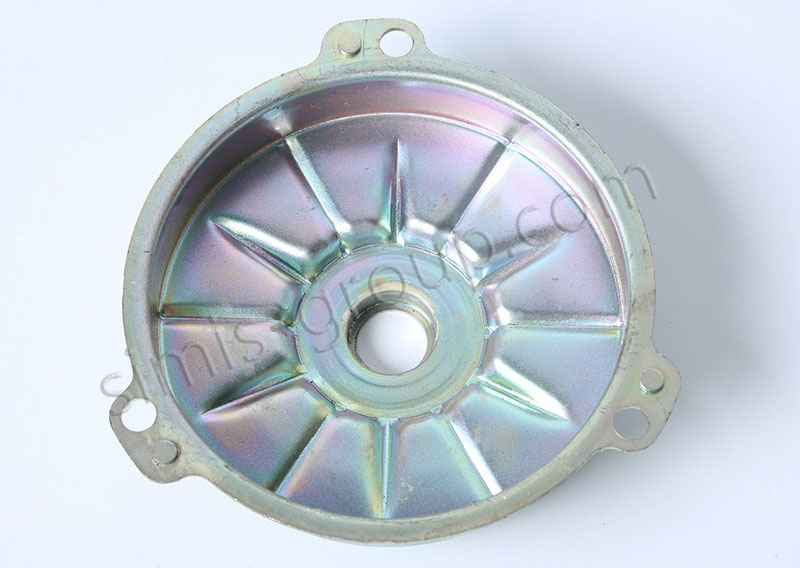

Automotive and portable power equipment may employ lighter end caps with cooling openings, thin ribs and compact bearing seats. Aluminum casting is one potential manufacturing route for suitable high-volume designs. Accurate dimensional control remains important, particularly around the bearing location and connection to the main housing.
Marine and outdoor power-generation equipment
Marine and outdoor generators may require project-specific corrosion protection, drainage or enclosure interfaces. Material and coating selection must consider humidity, salt exposure, temperature and maintenance conditions. A finished end cover alone cannot establish the environmental or electrical protection rating of the entire generator.
Related electric motor and industrial machinery components
Similar bearing end shields are used in certain electric motors and other rotating equipment, although the correct geometry varies by machine. A generator end cover should not be substituted for another motor component without reviewing its bearing arrangement, locating interfaces and operating requirements.
Request a Quote for Custom Generator End Covers
SIMIS supports OEM generator end cover production according to approved customer drawings. Our manufacturing review can address material selection, the proposed casting method, tooling, CNC machining, heat treatment when specified, finishing and an agreed inspection plan.
For a detailed RFQ, please provide: 2D technical drawings and STEP or other available 3D models; material grade and standard; outside diameter, overall height and estimated casting weight; bearing designation and bore tolerance; locating pilot and flange requirements; mounting-hole pattern; important GD&T datums; required coatings; inspection documents; and planned batch and annual quantities.
If the component is part of a sealed, high-speed or vibration-sensitive generator, please also identify its operating temperature, assembly method, environmental requirements and any component-level validation criteria. This helps distinguish manufacturing requirements from the performance of the complete rotating machine.
Send your custom generator end cover drawings and purchasing requirements to info@simis-group.com for a manufacturing feasibility review and quotation.
