Custom Gray Iron Parts Manufacturer
Gray Iron Parts
China Simis Company specializes in the custom casting of Gray Iron Parts. Gray cast iron is highly valued in engineering due to its unique microstructure, which contains graphite in the form of flakes. This structure imparts exceptional engineering properties, including high vibration damping capacity (NVH reduction), high thermal conductivity, and excellent wear resistance.
We utilize various casting methods, including large-scale Sand Casting, high-precision Shell Molding, and Lost Foam Casting, to produce a wide array of complex components. Our Gray Iron is produced to strict international standards, such as ASTM Class 20 to Class 45 or ISO 185 series, ensuring compliance with the stringent requirements for strength, thermal management, and noise/vibration performance in all demanding industrial and automotive applications.
What Casting Processes Are Available for Gray Iron Production?
Gray Cast Iron exhibits excellent fluidity and castability, allowing for the efficient production of complex, intricate shapes across various casting methods, ensuring cost and quality targets are met. We offer large-scale Sand Casting, high-precision Shell Molding, Lost Foam Casting and precision CNC machining to cover diverse production needs of gray iron parts.
| Manufacturing Process | Material Focus | Key Advantage for Grey Iron Parts | Specific Process Detail |
| Sand Casting (Green Sand / Resin Sand) | Grey Cast Iron (ASTM Class 20-45). | High Volume, Large Size Capability, and Cost-Effectiveness. Primary method for large and heavy components like engine blocks and machine tool frames. | Precise sand control is critical to ensuring stable dimensions and the uniform cooling rates necessary for consistent graphite flake morphology. |
| Shell Mold Casting | Grey Cast Iron (ASTM Class 30 and up). | Superior Surface Finish and Closer Tolerance. Ideal for parts requiring thinner sections, reduced machining time, or complex external features. | Provides better casting accuracy than standard sand casting, improving final quality and reducing secondary finishing costs. |
| Lost Foam Casting | Grey Cast Iron (Complex Structures). | Excellent for Complex/Integrated Geometries. Suitable for parts with intricate internal passages (e.g., manifolds) or complex structures, eliminating cores and parting lines. | Simplifies complex designs, reduces machining on non-critical surfaces, and maintains material integrity. |
| Precision CNC Machining | All Parts. | Achieving Critical Fitment Tolerance. Mandatory for bearing seats, cylinder bores, and mounting/sealing flanges. | Ensures the required flatness, concentricity, and parallelism vital for engine and hydraulic assemblies. |
What Material Properties of Gray Iron Parts?
The primary engineering benefits of Grey Iron stem from the graphite flakes within its iron matrix. These properties include exceptional vibration damping, high wear resistance, high thermal conductivity, high compressive strength and excellent machinability, which make gray iron suitable for various demanding applications.
| Material Feature | Primary Performance Focus | Typical Application Requirement |
| Graphite Flakes Structure | Exceptional Vibration Damping (NVH Reduction). | Essential for engine components, compressors, and machine bases where operational noise and vibration must be minimized. |
| High Wear Resistance | Resistance to Sliding Abrasion. | Used in brake rotors, clutch plates, and cylinder sleeves, where the graphite provides a degree of self-lubrication. |
| High Thermal Conductivity | Efficient Heat Transfer. | Crucial for components exposed to high temperatures, such as brake rotors and exhaust manifolds, to ensure rapid heat dissipation. |
| High Compressive Strength | Structural Rigidity and Load Bearing. | Utilized in components that must withstand high external loads or pressure, like machine tool bases and hydraulic cylinders. |
| Excellent Machinability | Low Machining Cost and Tool Life. | Highly desirable for high-volume OEM parts requiring extensive processing, leading to reduced overall manufacturing cost. |
What Quality Control and Metallurgical Integrity Measures Are Applied to Gray Iron Parts?
The performance of Gray Cast Iron depends on precise control over its composition to manage the graphite structure, which determines damping and strength. We implement a set of strict measures including metallurgical analysis, mechanical testing, non-destructive testing and machinability optimization to ensure product quality and performance stability.
·Metallurgical Analysis:
Routine monitoring of chemistry (Carbon, Silicon) to ensure the correct graphite flake structure (Type A, Size 3-5) is achieved for optimal properties.
·Mechanical Testing:
Providing certified Material Test Reports (MTRs) documenting compressive strength and hardness (Brinell Hardness - HB), crucial for wear surfaces.
·Non-Destructive Testing (NDT):
Utilizing Ultrasonic Testing (UT) for checking wall thickness consistency and detecting gross internal defects, particularly in pressure-containing or critical heat-transfer areas.
·Machinability:
Gray Cast Iron's microstructure allows for high-speed machining, which is essential for cost-effective mass production.
What Are the Application Areas of Gray Iron Parts?
SIMIS custom casting Gray Iron parts are utilized where thermal management, low vibration, and cost-efficiency are paramount. These parts are widely applied in automotive & truck, machine tools & robotics, fluid & energy handling, agricultural machinery, construction & mining and general industrial sectors.
| Application Sector | Typical Component | Key Application Requirement | Core Performance Need |
| Automotive & Truck | Brake Drums/Discs, Engine Blocks, Cylinder Heads (older designs), Exhaust Manifolds, Flywheels. | High volume production, thermal cycling, and NVH control. | Rapid heat dissipation, vibration damping during braking, and structural rigidity. |
| Machine Tools & Robotics | Beds, Frames, Columns, Bases, Lathe Saddles. | Large structures, extreme rigidity, and high damping. | Exceptional damping to maintain cutting precision, stability, and extend tool life. |
| Fluid & Energy Handling | Pump Housings, Valve Bodies, Flanges, Compressor Casings. | Pressure sealing, corrosion resistance (with coatings), and stability. | Withstanding high pressure and fluid containment, while minimizing operational noise. |

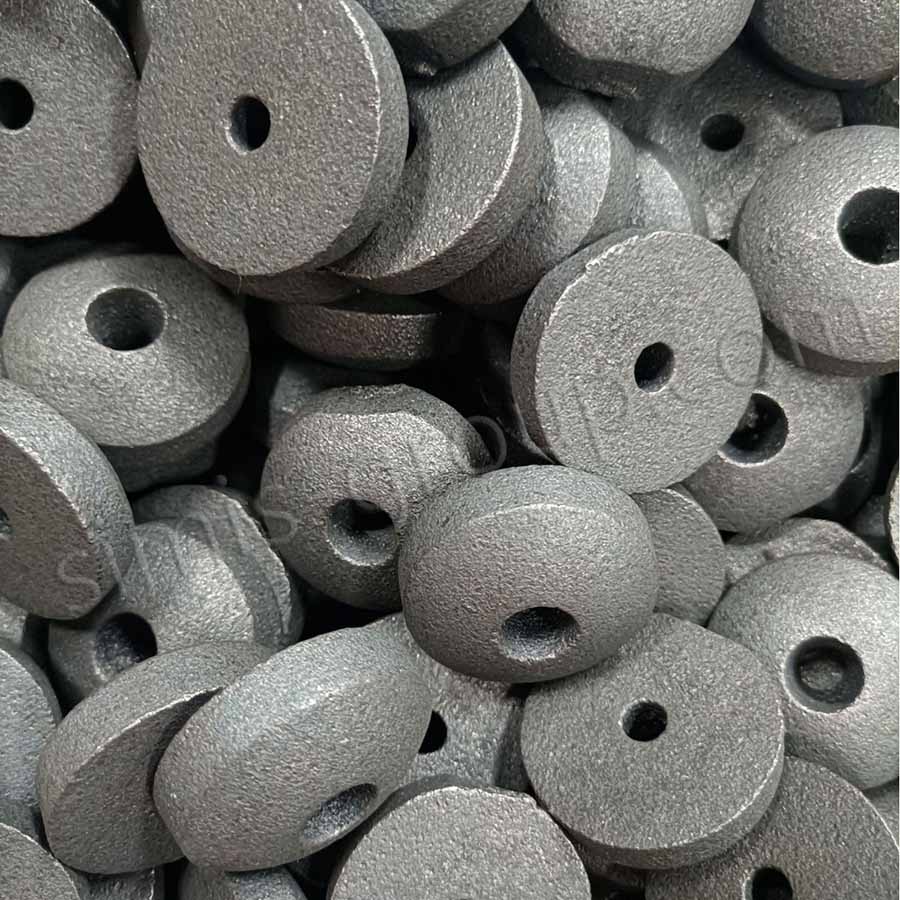

| Agricultural Machinery | Tractor Transmission Casings, Counterweights, Gearboxes, Differential Housings. | Large size, high density, and shock resistance. | Providing necessary traction weight and handling high-torque loads and field vibration. |
| Construction & Mining | Balance Weights, Hydraulic Valve Blocks, Gear Reducer Housings, Engine Mounts. | High density, impact resistance, and NVH performance. | Withstanding severe operating conditions, vibration, and impact loads. |

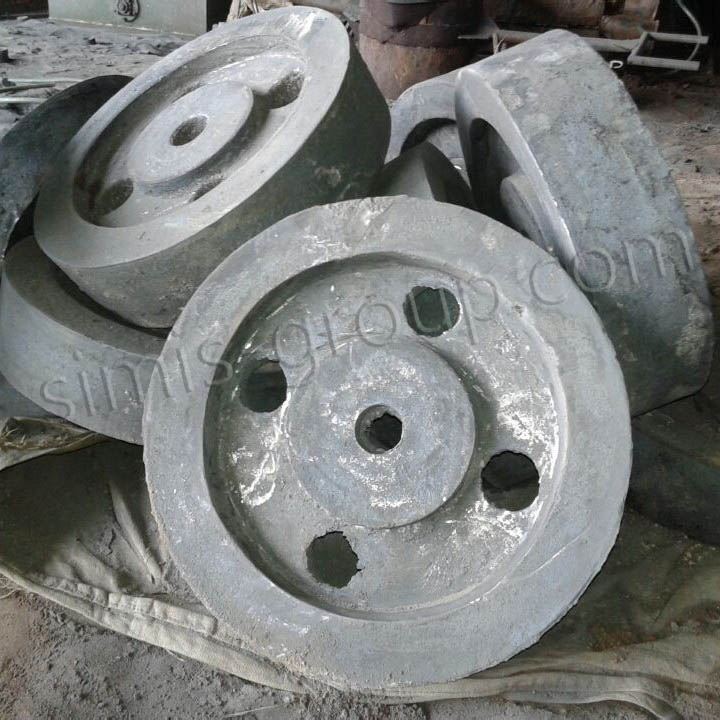

| General Industrial | Bearing Pedestals, Couplings, Pulleys, Conveyor Rollers, Electric Motor Frames. | Structural stability, wear resistance, and cost-effectiveness. | Ensuring stable equipment operation and wear-resistant motion transfer. |
What Are the Advantages of Simis OEM Custom Gray Iron Parts?
Partnering with Simis for custom Gray Iron parts delivers essential technical and commercial benefits. Our advantages cover NVH optimization, thermal management solutions, cost efficiency and integrated process control.
·NVH Optimization:
We specialize in designing and casting Gray Cast Iron components to maximize its inherent damping properties, resulting in quieter operation and extended equipment life.
·Thermal Management Solutions:
We ensure the casting geometry (e.g., cooling fins, wall sections) and material grade are optimized for efficient heat transfer, critical for braking and engine applications.
·Cost Efficiency:
Leveraging Gray Cast Iron's superior castability and machinability, we provide highly complex components at a lower unit cost compared to ductile iron or steel.
·Integrated Process Control:
We maintain strict control over the entire production cycle, from metallurgy and casting to final precision machining, ensuring consistent quality and predictable performance.
How to Get a Quote for Custom Gray Iron Parts?
China Simis Company is your expert partner for custom Grey Iron Parts (Iron Casting Services), providing precision casting solutions engineered for optimal NVH control, thermal performance, and exceptional machinability.
Please submit your 2D technical drawings, CAD models, required Grey Iron grade (e.g., ASTM Class 35), critical damping/thermal specifications, and expected annual volume to our engineering department for a consultation and detailed quotation.
