Custom Throttle Housing Manufacturer
Throttle Housing

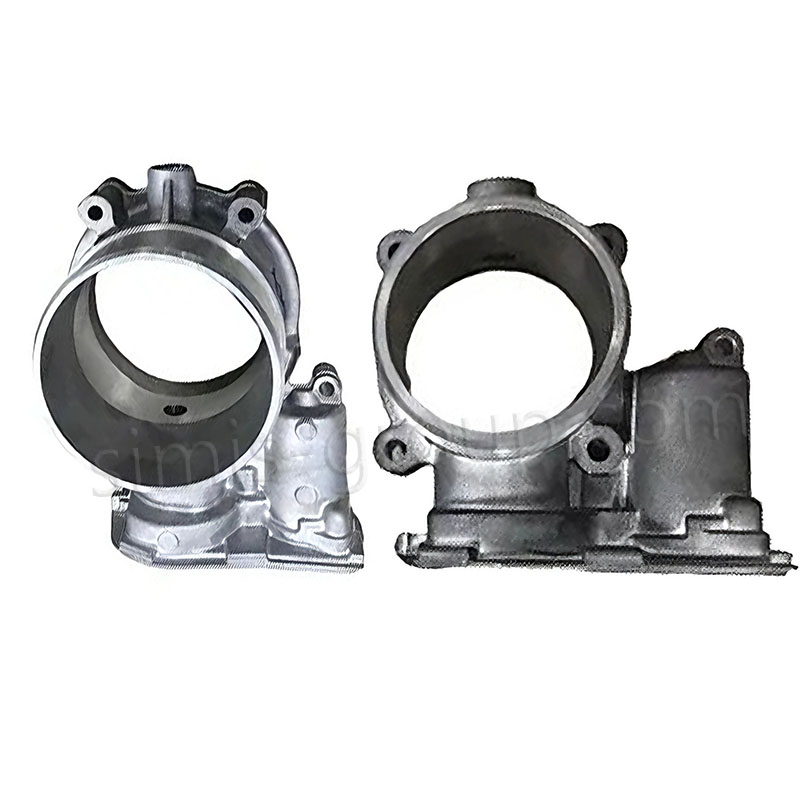

China Simis Company specializes in the manufacturing of high-precision Throttle Housings for gasoline and diesel internal combustion engines, including electronic throttle control (ETC) systems. The Throttle Housing is a highly specialized component that encloses the throttle plate (butterfly valve) and provides mounting points for the throttle actuator and various sensors. Its primary function is to accurately regulate the amount of air entering the engine cylinders, which directly impacts engine power and efficiency.
To meet the critical requirements of precise airflow management, lightweighting, and excellent surface finish, the primary manufacturing method is high-volume Pressure Die Casting using Aluminum Alloy. This process delivers the necessary thin-walled complexity and superior surface finish in the valve bore. Alternatively, Permanent Mold Casting may be used for medium-volume or highly structural designs. All Throttle Housings require mandatory Precision CNC Machining to ensure the critical bore diameter, parallelism of the mounting flanges, and precise alignment of the throttle shaft bearings.
What Manufacturing Processes Are Used for Throttle Housings?
Our processes are centered on achieving the precise internal geometry and smooth surface finish required for accurate and repeatable airflow control. We mainly adopt Pressure Die Casting, Permanent Mold Casting, Precision CNC Machining and Lost Foam Casting for throttle housing production.
| Manufacturing Process | Applicable Material Range | Application Focus for Throttle Housings | Core Advantage |

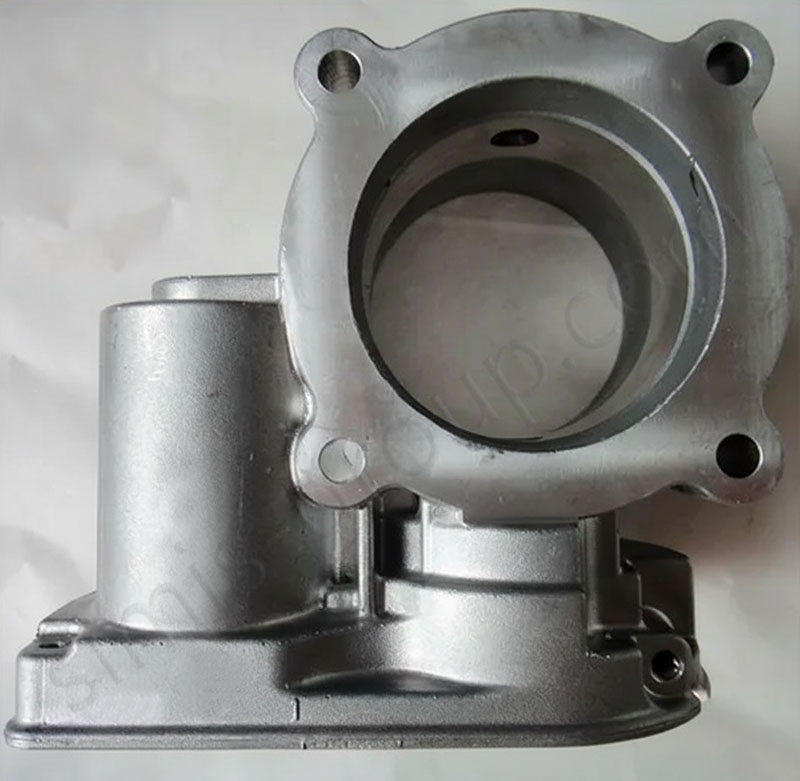

| Pressure Die Casting | Aluminum Alloy, Zinc Alloy | Primary method for high-volume production of complex Throttle Housings requiring thin walls, integral mounting features, and good internal surface finish. | Offers the highest production speed, excellent dimensional repeatability, and near-net shape for the intricate internal features. |

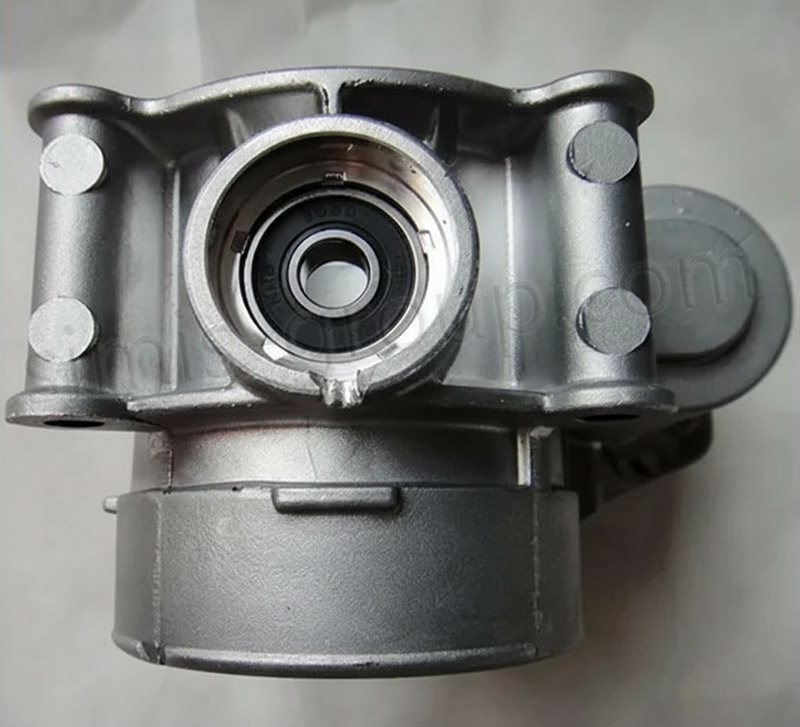

| Permanent Mold Casting | Aluminum Alloy | Medium-volume applications or designs requiring superior material soundness (low porosity) for integrated fluid circuits or high-strength mounting. | Provides better control over material microstructure and lower porosity than die casting, suitable for critical pressure systems. |
| Precision CNC Machining | Aluminum Alloy | Mandatory finishing for the throttle valve bore, throttle shaft bore alignment, and mounting flanges. | Guarantees the critical concentricity, diameter, and surface smoothness necessary for accurate plate sealing and minimal airflow turbulence. |
| Lost Foam Casting | Aluminum Alloy | Occasionally used for prototypes or large-format industrial throttle bodies with complex integrated manifolds. | Eliminates parting lines and simplifies mold complexity for internal features, resulting in good internal surface quality. |
How to Select Material Types for Throttle Housings?
Material choice prioritizes lightweighting, heat dissipation (to prevent icing), and the ability to be cast into complex, thin-walled shapes. We mainly select Aluminum Alloy and Zinc Alloy according to different application requirements of throttle housings.
| Material Type | Core Performance Attributes | Primary Application Scenarios for Throttle Housings |
| Aluminum Alloy | Excellent castability, high thermal conductivity (to transfer heat and prevent ice formation), and superior lightweighting. | Universal material for almost all modern automotive, motorcycle, and industrial engine Throttle Housings. |
| Zinc Alloy | Excellent pressure die casting capability, highest dimensional accuracy, cost-effective for smaller parts. | Used for very small throttle bodies or specific sub-components where extreme casting precision is required. |
What Are the Critical Engineering Demands for Throttle Housing Performance?
Throttle Housing performance is directly linked to engine efficiency, response, and emissions control. The critical engineering demands include airflow precision, airtight sealing, throttle shaft alignment and lightweighting.
·Airflow Precision:
The bore and surrounding internal passages must be manufactured and machined to highly precise tolerances to ensure the ECU has repeatable, accurate control over the air mass flow rate.
·Airtight Sealing:
The valve bore must be perfectly round and smooth to guarantee the throttle plate seals completely when closed, ensuring proper idle speed control and engine shutdown.
·Throttle Shaft Alignment:
The shaft bore must be collinear (perfectly aligned) to minimize friction and wear on the shaft bearings, crucial for the longevity of the electronic actuator.
·Lightweighting:
Reducing mass is key to improving engine response and overall vehicle fuel efficiency.
What Quality Assurance Measures Are Applied to Throttle Housings?
QA protocols ensure the Throttle Housing meets the strict dimensional and sealing requirements for modern engine control systems. Our core quality assurance measures include dimensional certification (CMM), leak testing, surface finish measurement and material integrity NDT.
·Dimensional Certification (CMM):
CMM inspection verifies the critical bore diameter and roundness, the coaxiality of the throttle shaft bore, and the flatness of the mounting flange.
·Leak Testing:
Mandatory pressure decay or vacuum testing is performed on the fully machined Throttle Housing to confirm airtight integrity, preventing vacuum leaks that disrupt engine operation.
·Surface Finish Measurement:
Verification of the internal bore surface roughness (Ra value) to ensure minimal friction on the throttle plate and optimal airflow characteristics.
·Material Integrity NDT:
X-ray testing may be used on cast parts to check for porosity, which could compromise the strength or integrity of the vacuum seal.
What Are the Key Application Areas for Throttle Housings?
These components are essential for precise air-fuel ratio control across most thermal engine applications. They are widely applied in automotive, motorsport & performance, powersports and industrial engines sectors.
| Application Sector | Typical Component | Core Performance Needs | Simis Material/Process Focus |
| Automotive | Electronic Throttle Body (ETC), Intake Manifold Integrated Throttle. | High Precision, Lightweighting, High-Volume Production. | Aluminum Alloy (Pressure Die Casting). |
| Motorsport & Performance | Individual Throttle Bodies (ITBs), High-Flow Throttle Housings. | Maximum Airflow Efficiency, Custom Diameter, Strength. | Aluminum Alloy (Permanent Mold Casting, CNC Machined). |
| Powersports | Motorcycle Throttle Bodies, ATV/UTV Intake Housings. | Compact Size, Lightweighting, Durability in Outdoor Conditions. | Aluminum Alloy (Pressure Die Casting). |
| Industrial Engines | Generator Set Throttle Housings, Forklift Engines. | Reliability, Cost-Effectiveness, Structural Soundness. | Aluminum Alloy (Permanent Mold Casting, Pressure Die Casting). |
How to Get a Quote for Custom Throttle Housings?
China Simis Company is your specialized partner for high-precision Throttle Housings, offering advanced casting and CNC machining solutions to meet the critical requirements of airflow accuracy, sealing integrity, and lightweighting for engine systems.
Please submit your 2D technical drawings, CAD models, required material and process (e.g., Aluminum Pressure Die Casting Throttle Body), critical bore tolerance and surface finish (Ra value), and expected annual volume to our engineering department for a consultation and detailed quotation.
