Custom Tie Rod Arm Manufacturer
Tie Rod Arm
Frequently Asked Questions About Custom Tie Rod Arms
1. What types of tie rod arms and steering linkage components can SIMIS manufacture?
SIMIS manufactures custom tie rod arms, forged steering linkage levers, tie-rod connection arms and related metal steering components to OEM drawings. Depending on the specified vehicle or machinery, products may include offset arms, multi-hole steering levers, heavy-duty forged links, cast ductile iron arms and selected lightweight forged aluminum components. SIMIS supplies individual metal parts; a complete tie rod assembly with ball joints, boots and adjusters is not automatically included.
2. Can SIMIS produce forged alloy steel tie rod arms?
Yes. Closed-die hot forging is a principal manufacturing process for suitable steel tie rod arms and steering linkage levers. Heated carbon steel or alloy steel billets are formed in shaped dies to produce curved arms, reinforced ends and integrated mounting bosses. Customer-specified grades may include AISI 1045, 4140, 42CrMo4 or other approved forging steels. The final material condition and component interfaces follow the customer's approved drawings and purchasing documents.
3. Are cast ductile iron and forged aluminum tie rod arms available?
SIMIS offers suitable ductile iron castings and aluminum alloy forgings where the OEM has approved that construction. Sand casting or compatible shell mold casting may be used for ductile iron steering arms with shaped mounting sections. Wrought aluminum alloys such as 6061 or 7075 may be considered for appropriate forged lightweight levers. These alternatives are not universally interchangeable with forged steel, especially in a safety-critical steering linkage.
4. What is the difference between a tie rod arm, a tie rod and a steering knuckle?
A tie rod arm is a lever or connecting component in a specified steering linkage. A tie rod is typically a rod or linkage assembly transmitting steering motion between connections, often incorporating separate joints. A steering knuckle carries wheel and suspension or steering interfaces. Depending on vehicle design, a steering arm may be integral with the knuckle or attached separately. SIMIS manufactures the part described in the individual OEM drawing rather than treating these names as interchangeable.
5. What information is required for an OEM tie rod arm quotation?
Please provide 2D technical drawings or available 3D CAD models, the component type, material grade, critical connection dimensions and estimated order quantity. Important product information may include hole-center distances, bushing or pin diameters, tapered or threaded interfaces, and the vehicle or equipment application. Indicate whether forged blanks, castings or finished metal components are required. Contact SIMIS at info@simis-group.com.

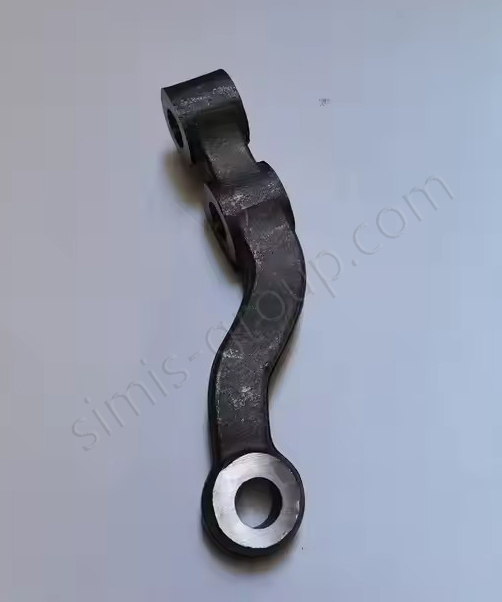

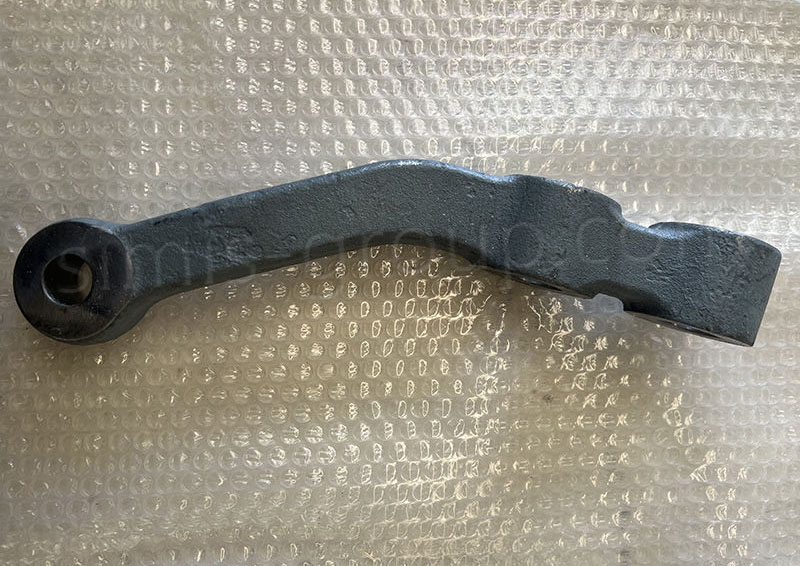

OEM Custom Tie Rod Arm Manufacturer for Steering Linkage Components
Custom tie rod arms are metal levers and connection components used in selected vehicle steering linkage arrangements. Depending on the construction, a tie rod arm transfers steering forces between a tie rod or drag link and another component of the steering mechanism. The location and function of the lever vary between steering systems, so the OEM drawing establishes its precise configuration.
SIMIS specializes in forged steel tie rod arms, custom steering linkage arms, ductile iron steering arm castings and selected forged aluminum steering components. We manufacture components to customer-provided drawings using suitable closed-die forging, sand casting, shell molding and aluminum alloy forging processes.
A typical custom arm may have a curved, offset or straight lever body with two or more connection ends. Its geometry can include round mounting eyes, bosses, pin holes, threaded or tapered interfaces and other features defined by the customer. Some tie rod arms are separate metal parts; others are related to steering knuckles or complete linkages but should not be described as the whole assembly.
The manufacturing route depends on the material and part shape. Forged alloy steel is a major choice for suitable steering levers. Ductile iron casting may be used for an OEM-approved geometry, while certain wrought aluminum alloys offer another option for specified lightweight components. SIMIS supplies the metal part in the agreed blank or finished condition.
Related OEM products include custom steering knuckles and suspension control arms, which are different components with their own mounting and material requirements.
Types of Tie Rod Arms and Related Steering Linkage Parts
SIMIS supplies different customer-defined steering arms and associated metal levers. The name of the part alone does not establish its geometry or whether it belongs to a steering rack, steering box or heavy-duty axle arrangement.
| Component type | Typical metal features | Potential applications |
|---|---|---|
| Forged Steel Tie Rod Arms | Curved or offset lever body, integral mounting eyes and specified connecting ends. | Passenger cars, commercial vehicles and suitable mobile machinery. |
| Heavy-Duty Steering Linkage Arms | Substantial steel levers with reinforced connection zones and larger pivot interfaces. | Trucks, off-road vehicles and agricultural equipment. |
| Steering Knuckle Connection Arms | Separate steering arm or lever with OEM-defined knuckle and linkage attachments. | Selected conventional steering and axle assemblies. |
| Multi-Hole Steering Levers | Forged or cast arms with two or more mounting bosses or joint openings. | Customer-specific steering boxes and articulated linkages. |
| Cast Ductile Iron Arms | Complex cast body with integrated supports or connection bosses when approved. | Selected vehicles and machinery with specified ductile iron components. |
| Forged Aluminum Steering Arms | Lightweight wrought aluminum lever with customer-defined joint and mounting features. | Specialized and lightweight vehicle applications when qualified. |

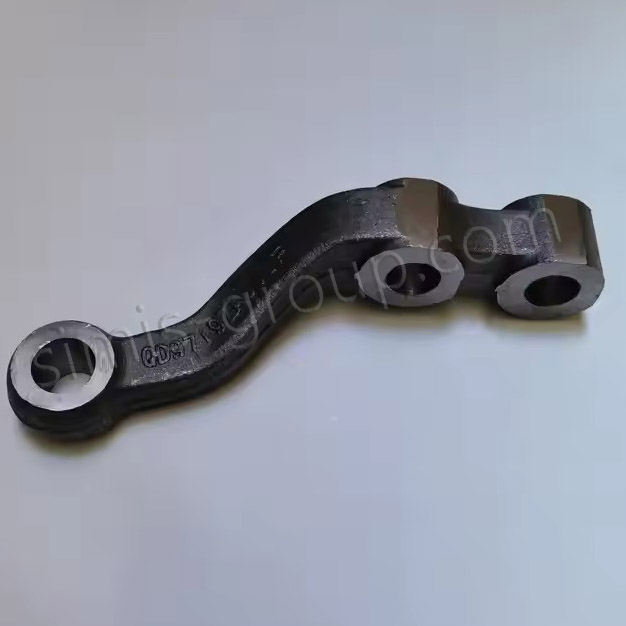

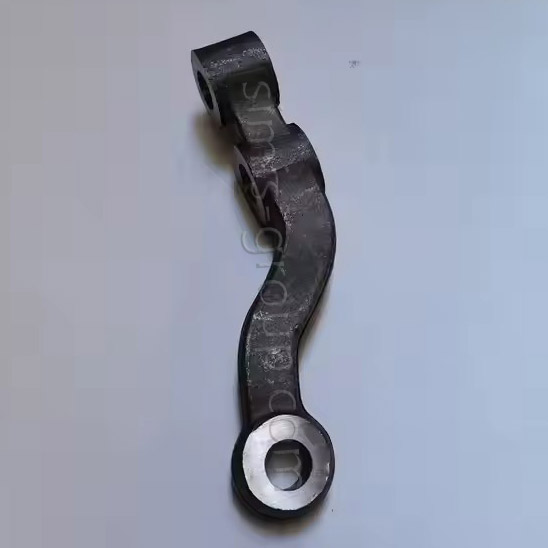

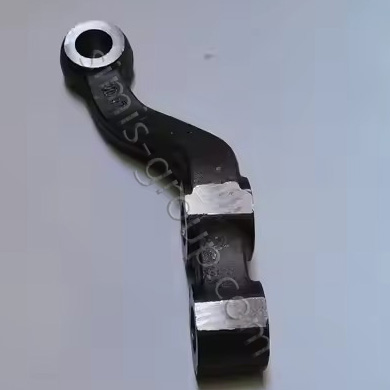

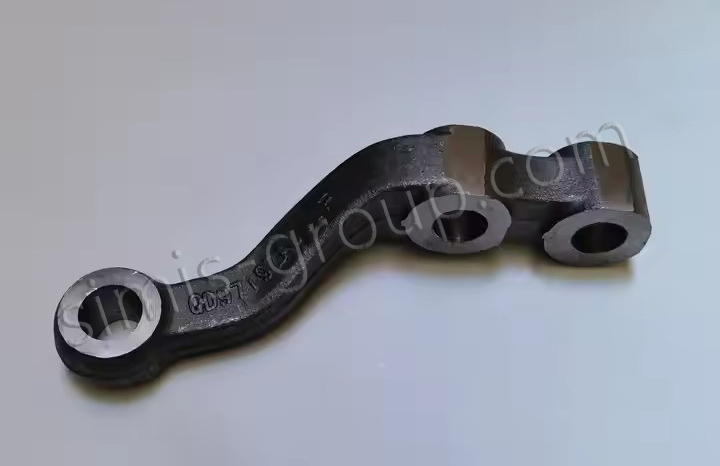

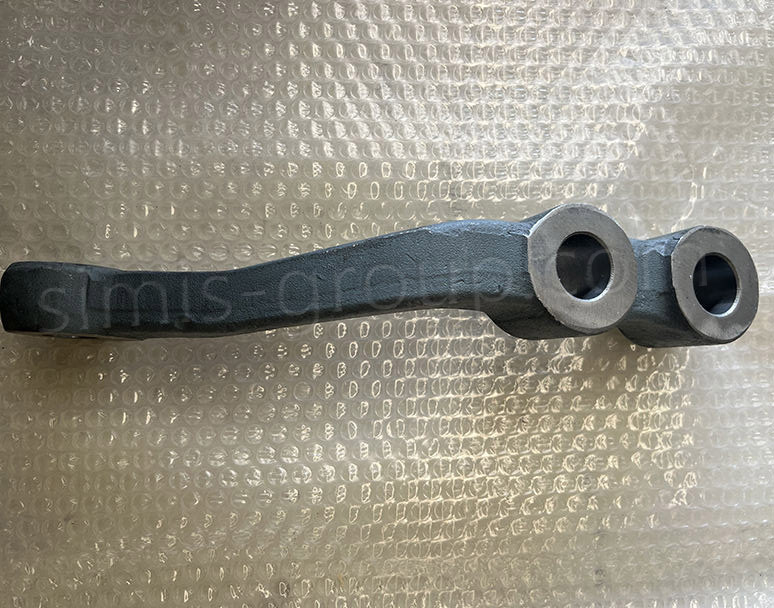

Forged Steel Steering Tie Rod Arms
Forged steel tie rod arms are suitable for certain solid steering levers with formed bends and enlarged connection ends. The metal blank is shaped by forging dies, after which the interfaces specified in the customer drawing are completed. SIMIS supplies custom carbon steel and alloy steel arms to the required geometry and order quantity.

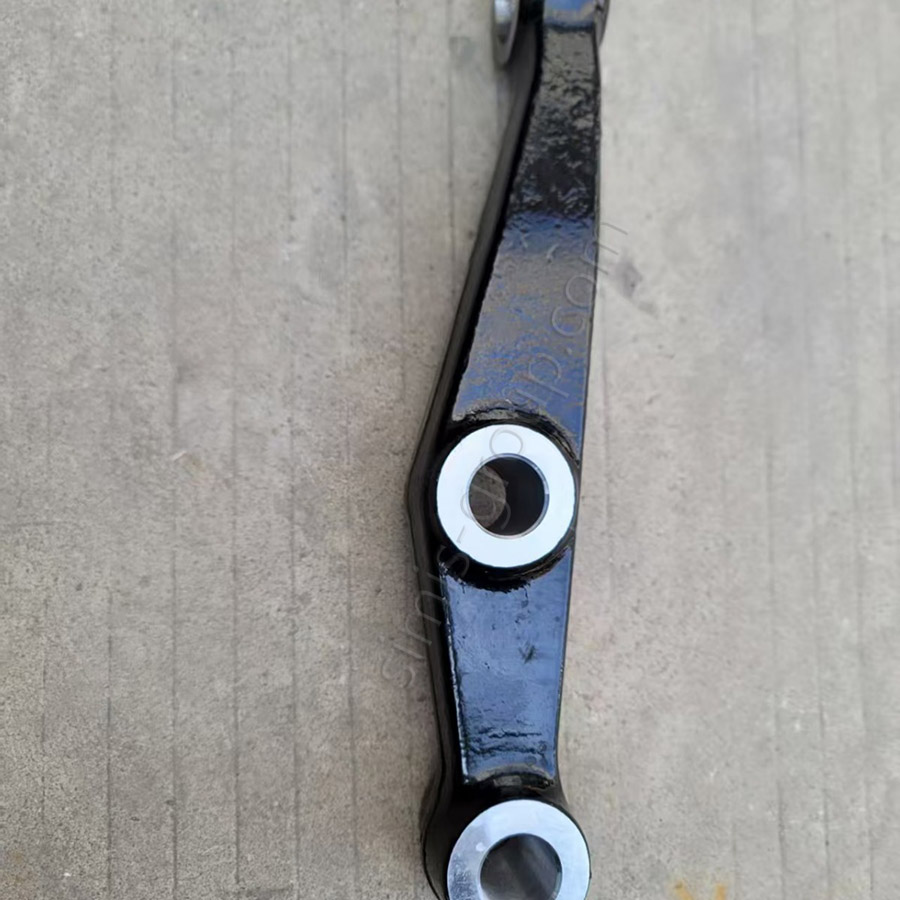

Heavy-Duty and Agricultural Steering Linkage Levers
Heavy-duty trucks, tractors and industrial vehicles may employ larger steering arms and connection levers. These parts can have multiple mounting eyes, stepped sections and non-symmetrical profiles. SIMIS manufactures customer-specified forgings and suitable castings for these configurations. The supplied arm must match the intended steering assembly rather than a general aftermarket description.
Closed-Die Forging and Casting Processes for Tie Rod Arms
Manufacturing a custom steering tie rod arm starts with the approved metal grade and component geometry. Closed-die hot forging is the principal process for suitable steel and aluminum arms. Sand casting and shell mold casting offer additional routes for selected OEM-approved ductile iron parts.
| Manufacturing process | Suitable materials and components | Process characteristics |
|---|---|---|
| Steel Closed-Die Forging | Carbon steel and alloy steel tie rod arms, offset steering levers and multi-hole linkage arms. | Forms heated steel billets within shaped dies for suitable repeat-production profiles. |
| Aluminum Alloy Closed-Die Forging | Selected 6061, 6082 or 7075 wrought aluminum arms where the material is approved. | Forms compatible aluminum alloys in dedicated forging dies for lightweight components. |
| Ductile Iron Sand Casting | Approved steering arms with integral curved sections, mounting bosses or larger cast profiles. | Solidifies ductile iron in a prepared sand mold to create the specified cast body. |
| Ductile Iron Shell Mold Casting | Selected repeat-production ductile iron steering lever bodies. | Uses resin-bonded sand shells for compatible part dimensions and geometry. |
| Steel Casting for Selected Related Parts | Specialized steering brackets or other customer-approved cast steel linkage components. | Provides an alternative blank-making route where the casting material is explicitly specified. |
| Drawing-Specified Final Operations | Pivot or bushing seats, pin holes, tapered mounts and specified mating surfaces. | Performed only as needed under the approved technical and purchasing documents. |
Closed-Die Steel Forging for Steering Arms
A heated steel billet is pressed or struck within shaped forging dies to form a tie rod arm blank. Suitable die impressions can produce offset lever profiles, reinforced ends and mounting bosses in one formed part. The process is widely used for mechanical components requiring the specified forged steel material and repeatable basic geometry.
SIMIS provides custom closed-die forging for suitable carbon and alloy steel parts. A forging is not automatically a qualified finished steering component; required mechanical characteristics and all interfaces remain subject to the OEM specification.
Sand Casting and Shell Mold Casting of Ductile Iron Arms
Ductile iron is a cast material containing graphite predominantly in spheroidal form. For approved steering arm designs, sand molds can form curved bodies and integrated bosses that would otherwise require separate construction. Shell molding provides another option for suitable repeat-production iron components.
SIMIS offers custom sand casting and shell mold casting. Ductile iron is not the same as gray cast iron and should never be substituted for an OEM-specified forged steel arm without approval.

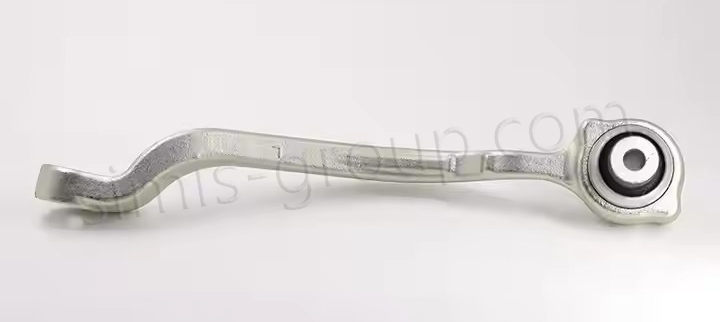

Forging Wrought Aluminum Tie Rod Arms
Certain steering or linkage levers may be specified in wrought aluminum alloys. SIMIS offers custom aluminum alloy forging for compatible components, including parts from suitable 6061, 6082 or 7075 grades. The aluminum alloy, forging condition and intended load requirements are defined by the customer.
Wrought aluminum forging alloys are distinct from aluminum casting alloys. The use of aluminum in a vehicle steering component requires the customer's specific technical approval; low weight alone does not make a material suitable for the part.
Carbon Steel, Alloy Steel, Ductile Iron and Aluminum Materials
The material for a custom tie rod arm depends on the approved steering system and component specification. SIMIS manufactures suitable forged carbon steel and alloy steel arms, cast ductile iron levers and selected forged aluminum components. Material designations are supplied according to the applicable national and product standards.
| Material grade or family | Product form and characteristics | Potential tie rod arm components |
|---|---|---|
| AISI 1045 / C45 Carbon Steel | Medium-carbon wrought steel suitable for appropriate hot-forged mechanical levers. | Customer-specified forged steel steering arms and connecting links. |
| AISI 4140 / 42CrMo4 Alloy Steel | Chromium-molybdenum forging steels with grade-dependent chemistry and material conditions. | Forged steering tie rod arms and heavy-duty connection levers. |
| AISI 4340 Alloy Steel | Nickel-chromium-molybdenum wrought alloy steel used for suitable specified mechanical forgings. | Selected customer-approved high-duty forged linkage components. |
| ASTM A536 Ductile Iron | Spheroidal graphite cast iron with grade-specific mechanical properties. | Approved sand-cast or shell-molded steering arms and supporting levers. |
| 6061 / 6082 Wrought Aluminum | Wrought aluminum alloys suitable for specified forged structural parts. | Selected lightweight steering linkage arms when approved. |
| 7075 Wrought Aluminum | A high-strength wrought aluminum alloy with condition-dependent properties. | Specialized forged steering levers where the OEM specifies this alloy and condition. |
| Specified Cast Steel | Steel casting grades subject to their own material specifications, distinct from AISI forging grades. | Other approved complex cast steering connection parts, not default tensile arms. |
Carbon Steel and Chromium-Molybdenum Alloy Steel Forgings
AISI 1045 / C45 and chromium-molybdenum steels such as AISI 4140 or 42CrMo4 can be considered for suitable forged steering linkage components. These materials differ in alloy composition and applicable standards. SIMIS manufactures the specified grade using an agreed forging route and material condition. Related capability is described on our steel forging manufacturing page.
Ductile Iron and Wrought Aluminum Options
Cast ductile iron and wrought aluminum are distinct alternatives used for selected customer-approved geometries. Ductile iron is defined by casting grades such as those in ASTM A536, while 6061, 6082 and 7075 are wrought aluminum alloys. Their use in a steering linkage depends on the specific vehicle or machinery requirements; neither group is a general replacement for forged alloy steel.
Applications in Automotive, Truck and Agricultural Steering Systems
Custom tie rod arms and steering connection levers are used in different vehicle and equipment steering assemblies. SIMIS manufactures drawing-based metal parts for OEMs in automotive, commercial vehicle, agricultural and off-road machinery markets.
Passenger Cars and Light Commercial Vehicles
Passenger cars and light vehicles use steering linkages that connect steering gear motion to the steered wheels. Depending on the vehicle platform, some steering arms are integrated into a knuckle while other connection levers are separate. SIMIS supplies compatible forged or cast metal arms to the customer's specific vehicle geometry. See our automotive and truck OEM metal parts.
Heavy Trucks, Off-Road and Utility Vehicles
Commercial and off-road steering systems may use larger linkage levers and robust mounting connections. Suitable forged alloy steel arms and OEM-approved ductile iron components can be manufactured according to the equipment drawings. The material grade and supply condition depend on the actual vehicle application.
Tractors and Agricultural Machinery
Tractors, harvesters and other agricultural vehicles may require tie rod arms, axle steering levers and connecting components with specific mounting configurations. SIMIS manufactures suitable custom forgings and castings for agricultural machinery applications. Parts are supplied for the identified machine design and are not claimed to fit every tractor or steering axle.
Construction Machinery and Specialized Vehicles
Selected construction machines and utility equipment use articulated steering or conventional wheel steering linkages with custom metal levers. SIMIS supplies appropriate component forgings and castings according to the OEM drawings. Racing and specialized lightweight vehicles may specify aluminum alloys, subject to customer-approved material and performance requirements.
Custom Tie Rod Arm Castings and Forgings Made to OEM Drawings
SIMIS supplies OEM metal tie rod arms, offset steering levers and related linkage components through suitable closed-die forging and selected casting processes. Our principal focus is the manufacture of customer-defined metal parts, not the supply of a universally interchangeable complete steering linkage assembly.
Customers can purchase forged steel blanks, specified aluminum forgings, ductile iron castings or finished metal arms within the agreed purchase scope. The final hole, taper, bushing and joint interfaces are completed as required by the approved drawing. Heat treatment, finishing, material documentation and inspection are addressed only to the extent stated in the OEM documents.
Steering linkage components are safety-related parts. SIMIS manufactures to the agreed material, dimensional and purchasing requirements; compliance with an entire vehicle's steering performance, fatigue life or certification obligations is not established solely by choosing a forging or casting process. Requirements such as fatigue testing, material traceability or automotive quality management approvals must be confirmed for the particular order.
The following retained source photograph shows a general closed-die forging operation. It illustrates a production method and is not a claim that the pictured equipment is manufacturing the specific tie rod arm shown above.
Request a Quote for Custom Forged and Cast Tie Rod Arms
SIMIS welcomes OEM inquiries for forged steel tie rod arms, steering linkage levers, approved ductile iron castings and selected forged aluminum steering parts. We quote customer-specific components rather than universal replacement assemblies.
For a quotation, please provide the following five items where available:
Product drawings: 2D technical drawings or available 3D CAD models of the required arm.
Component type: Tie rod arm, separate steering arm, offset linkage lever or related steering connection part.
Material requirements: Specified carbon steel, alloy steel, ductile iron or wrought aluminum grade.
Key interfaces and dimensions: Overall arm geometry, hole-center distances, pivot or bushing holes, tapered connections and other mating features.
Order requirements: Intended vehicle or machine, estimated quantity and whether a forging, casting or finished metal component is required.
Additional processing, material or inspection requirements may be included in the approved purchasing documents. SIMIS will quote the requested metal component manufacturing scope based on the supplied information.
Send your tie rod arm drawings and OEM inquiry to SIMIS: info@simis-group.com
