Custom Ring Gear Manufacturer

Frequently Asked Questions About Custom Ring Gears

1. What types of custom ring gears can SIMIS manufacture?

SIMIS manufactures custom ring gears and annular gear components for industrial transmission systems. Our OEM product range includes internal ring gears for planetary gearboxes, external ring gears, large gear rims, slewing drive gear rings and custom gearbox ring components. Depending on the drawings, manufacturing may involve seamless ring rolling, open-die forging, steel sand casting or ductile iron casting. Products are supplied to customer-specified dimensions, materials and manufacturing requirements.

2. Can SIMIS produce forged alloy steel ring gears by ring rolling?

Yes. Ring rolling is an important SIMIS manufacturing process for suitable seamless carbon steel and alloy steel ring gear blanks. A heated metal ring blank is progressively formed between rollers to obtain the required ring dimensions. Suitable materials include customer-specified AISI 1045, 4140, 4340 and related steel grades. The forged ring is subsequently manufactured into the specified gear component according to the customer's drawings and agreed supply condition.

3. Does SIMIS manufacture cast steel and ductile iron ring gears?

Yes. SIMIS supplies custom cast steel and ductile iron ring gear components for suitable industrial applications. Sand casting is relevant to large ring-shaped parts with integrated mounting structures, while shell mold casting may be considered for compatible sizes and production quantities. The metal casting process produces the required ring blank or near-net-shape structure. Gear teeth and other specified finished features are manufactured according to the approved drawings.

4. What materials are available for OEM ring gear manufacturing?

Common material families include forged carbon steel, forged alloy steel, cast carbon steel, cast alloy steel, ductile iron and selected stainless steels. Examples of suitable wrought steel grades may include AISI 1045, 4140, 4340 and 42CrMo4. Ductile iron ring gear castings may use customer-specified ASTM A536 or equivalent grades. The required material depends on the gearbox application, component dimensions and approved OEM specification.

5. What information is needed for a custom ring gear quotation?

Please provide 2D drawings or available 3D CAD models, the required ring gear type, material grade, main dimensions and estimated order quantity. For finished gears, relevant specifications include internal or external teeth, module or diametral pitch, tooth count and mounting features. Customers can also identify the intended equipment and whether forged rings, cast blanks or finished ring gears are required. Send your OEM inquiry to info@simis-group.com.

OEM Custom Ring Gear Manufacturer and Metal Forging & Casting Supplier

Custom ring gears, also known as annular gears, are circular gear components used to transmit rotational motion and torque in mechanical drive systems. Depending on the configuration, gear teeth may be located on the inside or outside circumference of the ring.

SIMIS specializes in OEM forged steel ring gears, seamless ring-rolled gear blanks, cast steel gear rings, ductile iron ring gear castings, internal planetary ring gears and large external gear rings. We manufacture customer-defined metal components through suitable forging, casting and subsequent finishing processes.

Internal ring gears are commonly used in planetary gear arrangements, where they engage with planet gears around a central sun gear. External ring gears are used in other transmission systems, including selected large gear drives, rotary equipment and slewing mechanisms.

Ring gear dimensions vary substantially between applications. Some components are relatively compact gearbox rings, while others are large-diameter industrial parts. Their shapes may include mounting holes, connection faces, hubs, supporting ribs or other features specified by the equipment manufacturer.

Different manufacturing methods are appropriate for different ring gear constructions. Seamless ring rolling produces suitable forged ring blanks from wrought metal. Sand casting can produce large metal rings with more complex integrated structures. The gear tooth geometry is subsequently established according to the customer's finished-part requirements.

SIMIS supplies individual OEM ring gears and related metal transmission parts rather than complete gearboxes as standard products. Customers can specify forged blanks, castings or finished components. Our related manufacturing activities include custom planetary gear components.

Types of Custom Internal and External Ring Gears

SIMIS manufactures different ring-shaped gear components according to customer drawings. The distinction between internal and external gearing is particularly important because these products serve different transmission arrangements and require different finished tooth configurations.

Internal Ring Gears for Planetary Gearboxes

An internal ring gear has teeth along its inner circumference. It is a common component in planetary gear systems and forms part of the gear arrangement together with the sun gear, planet gears and carrier. SIMIS manufactures customer-specified internal gear rings from suitable forged or cast metal blanks.

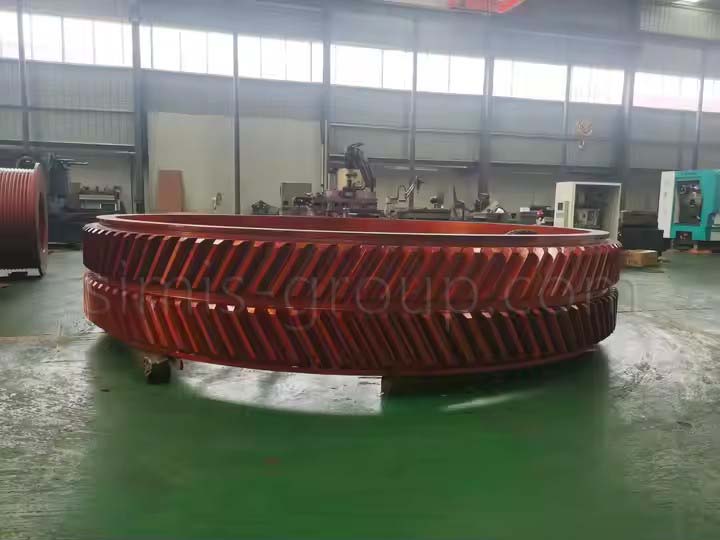

External Gear Rings for Heavy Machinery

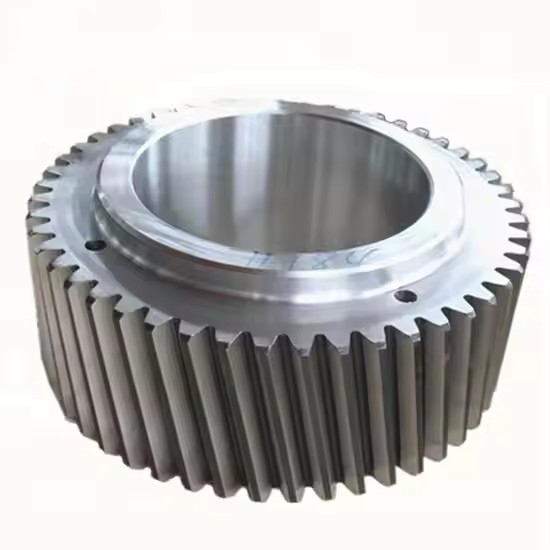

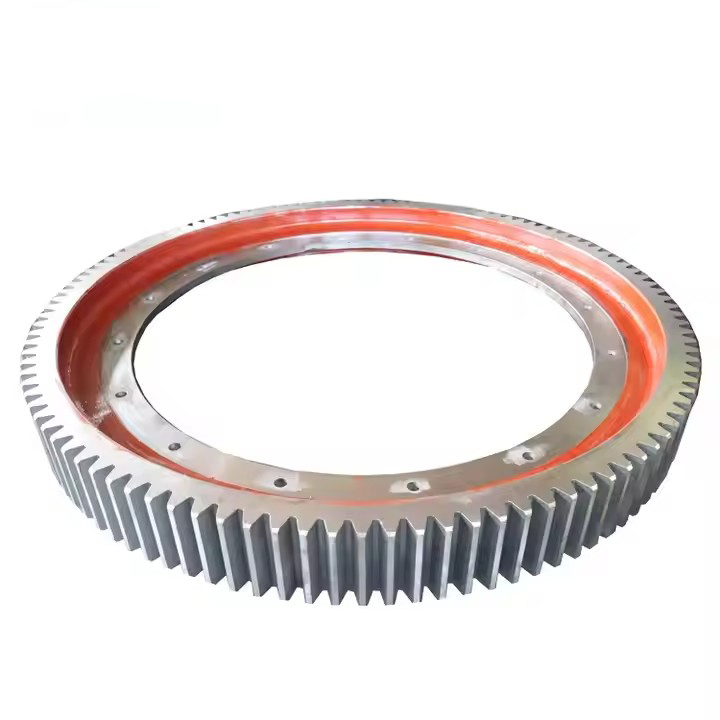

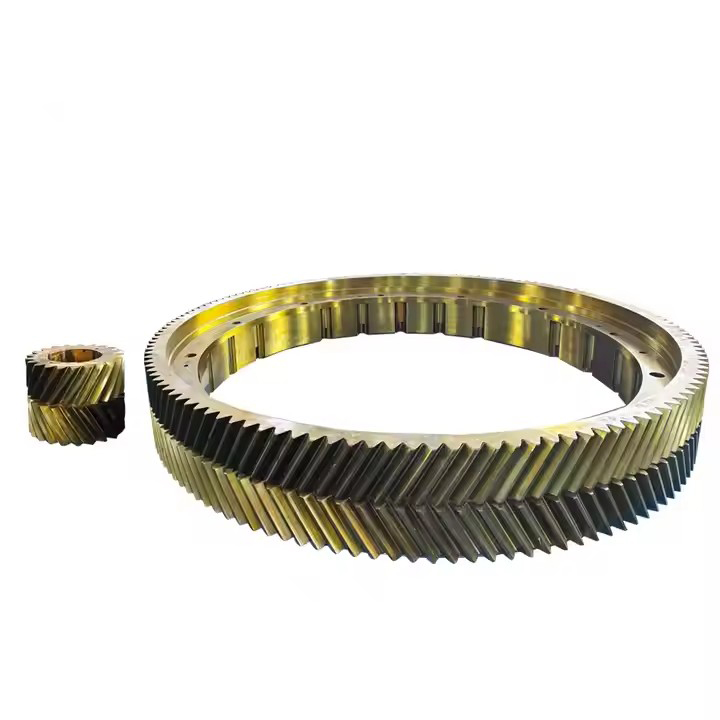

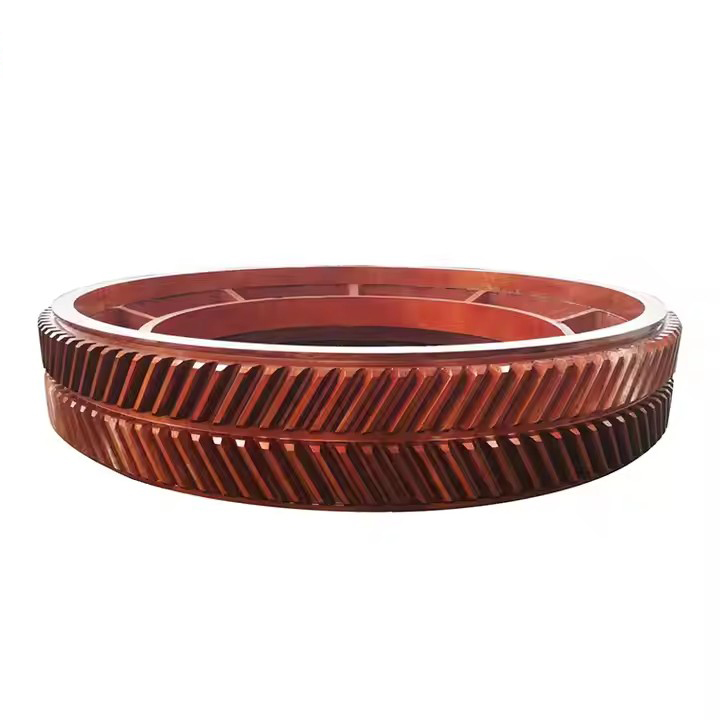

External ring gears have teeth on their outside circumference. They may be used in large mechanical drives, rotary machinery and equipment requiring a ring-shaped gear interface. SIMIS manufactures suitable external gear components according to customer-defined diameters, materials, mounting geometry and tooth specifications.

Slewing Drive Gears and Bearing Rings

Some rotary machinery uses gear teeth on or near a slewing bearing assembly. A slewing drive gear ring and a complete slewing bearing are related but distinct products. A bearing assembly may include raceways, rolling elements and other components beyond the toothed ring.

SIMIS also manufactures custom slewing bearing rings according to the specified metal component requirements.

Seamless Ring Rolling, Steel Forging and Casting Processes for Ring Gears

SIMIS provides multiple metal manufacturing processes for custom ring gear components. Ring rolling is especially relevant to seamless forged steel rings, while sand casting and shell mold casting can be used for suitable cast steel and ductile iron gear ring structures.

These processes form the principal metal shape or blank. Ring rolling does not directly produce all finished gear teeth, and a cast ring also generally requires the specified tooth-making and finishing operations before it becomes a completed precision gear.

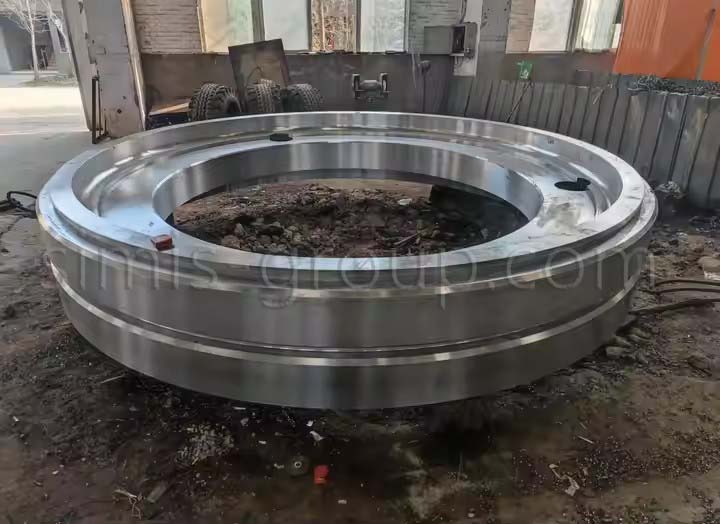

Seamless Ring Rolling for Forged Steel Ring Gears

Seamless ring rolling is a principal SIMIS manufacturing process for suitable forged steel ring gear blanks. A heated steel billet is prepared as a ring-shaped preform. The preform is then progressively rolled to increase its diameter and establish the specified ring geometry.

Ring rolling is widely used for annular components because it can produce seamless forged rings from appropriate carbon steel, alloy steel and stainless steel grades. The forging process also develops a material structure associated with the direction of deformation. Actual mechanical properties depend on the specified grade and manufacturing condition.

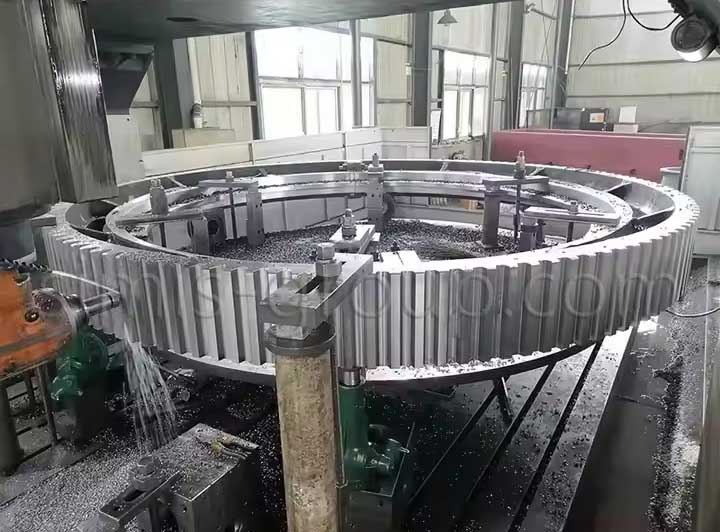

For ring gear production, the rolled ring provides a suitable metal blank for subsequent tooth manufacturing and the required mounting features. SIMIS provides custom ring rolling and seamless ring forging services for OEM customers.

Open-Die Forging for Large Alloy Steel Gear Blanks

Open-die forging is another metal forming method used for large custom steel components. Heated steel is shaped under repeated compressive force using suitable forging equipment. Depending on the product, open-die forging may be used to prepare large gear blanks or ring preforms for additional manufacturing.

SIMIS provides custom open-die forging and broader steel forging manufacturing for suitable carbon steel and alloy steel components.

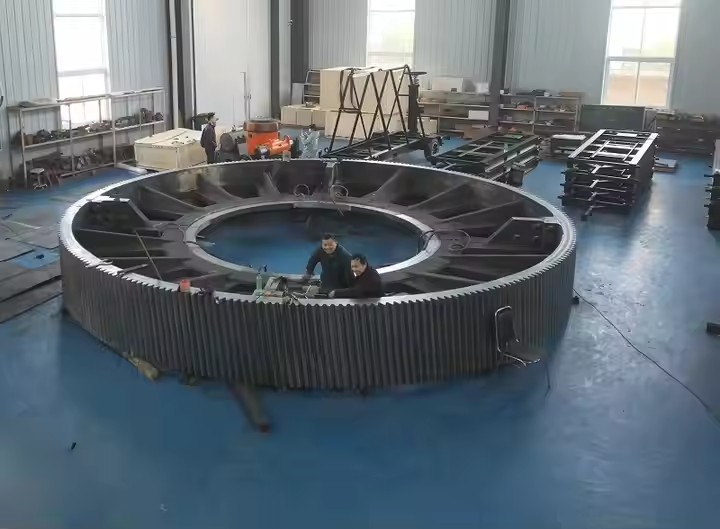

Sand Casting for Large Steel and Ductile Iron Gear Rings

Sand casting is used for a wide range of industrial components, including large ring-shaped metal parts. Molten cast steel or ductile iron is poured into a prepared sand mold and allowed to solidify into the specified component shape.

The process can produce large gear ring blanks with integrated structural features, connection sections or mounting geometry. Cast rings may be appropriate where the customer requires a particular combination of material, size and component construction.

SIMIS provides custom sand casting services for suitable cast steel and ductile iron products. The exact casting grade and finished supply condition follow the approved OEM drawings.

Shell Mold Casting for Suitable Gear Ring Components

Shell mold casting uses resin-bonded sand to form a relatively rigid mold shell. It is another manufacturing option for compatible cast steel and ductile iron parts, including selected gear ring components that suit the process size and mold arrangement.

SIMIS supplies custom shell mold castings for appropriate industrial products. Shell molding is not assumed to be the preferred method for every large gear ring; the process is selected according to the actual component requirements.

Forged Alloy Steel, Cast Steel and Ductile Iron Materials for Ring Gears

Ring gears are manufactured from different metal materials according to their applications. Forged carbon steel and alloy steel are important for suitable gear ring blanks, while cast steel and ductile iron offer additional manufacturing options for large or specially shaped components.

SIMIS manufactures ring gears according to customer-specified materials. Forged steel and cast steel have different material specifications, even when they belong to related alloy families. Stainless steel may also be specified for selected applications requiring appropriate corrosion resistance.

Forged Carbon and Alloy Steel Ring Gears

Carbon steel and alloy steel are common materials for ring-rolled gear blanks. AISI 1045 and 1050 are examples of medium-carbon steels, while AISI 4140, 42CrMo4 and 4340 are alloy steel grades used in suitable mechanical forging applications.

SIMIS produces custom forged ring components from the materials specified by OEM customers. The selected steel grade, forging condition and additional processing requirements are determined by the approved drawings and material specifications.

Cast Steel and Ductile Iron Gear Rings

Cast steel and ductile iron are used for certain large or specialized gear ring structures. Casting provides a manufacturing route for components with integrated mounting features or shapes that differ from a simple seamless forged ring.

Ductile iron is distinct from gray cast iron because of its spheroidal graphite structure. The mechanical properties of a ductile iron gear ring depend on its specified grade. SIMIS manufactures suitable cast rings according to customer drawings and material requirements.

Stainless Steel Ring Components for Specialized Equipment

Stainless steel may be specified for selected ring-shaped components used in marine, chemical processing or other environments where corrosion resistance is relevant. Different stainless steel grades provide different mechanical and corrosion characteristics.

SIMIS supplies suitable stainless steel ring forgings according to the required alloy and product specifications. Stainless steel should not automatically be considered a direct replacement for a hardened alloy steel gear without the appropriate customer approval.

Applications of Custom Ring Gears in Industrial Transmission Systems

Custom ring gears are used in a broad range of mechanical power transmission and rotary drive systems. SIMIS manufactures forged and cast ring components for equipment manufacturers serving energy, heavy industry, transportation and industrial machinery.

Wind Turbines and Energy Equipment

Wind energy equipment uses gear components in selected transmission, yaw and pitch drive arrangements. Custom ring gears may be specified according to the turbine system and gearbox configuration. SIMIS supplies suitable forged steel rings and other OEM metal components for energy and power equipment applications.

Cranes, Excavators and Heavy Machinery

Cranes, excavators and other heavy machines may use large external or internal gear rings in suitable rotary drives and reduction mechanisms. These components can be manufactured from forged steel, cast steel or ductile iron according to the equipment manufacturer's requirements.

Marine Gearboxes and Shipbuilding Equipment

Marine mechanical equipment can contain large gearboxes and other transmission systems requiring custom metal gear components. Ring gear material, dimensions and tooth configuration depend on the gearbox and intended application. SIMIS manufactures the ordered metal parts according to customer-specified drawings.

Railway and Industrial Reduction Gearboxes

Selected railway transmission systems and industrial reduction gearboxes use annular gear components. Internal ring gears are particularly associated with planetary gear arrangements, while external gears serve other mechanical drive configurations.

SIMIS also supplies custom gearbox and reducer housings. These are separate products manufactured to their own specified drawings.

OEM Ring Gear Castings and Forgings Made to Customer Drawings

SIMIS specializes in OEM metal casting and forging for custom transmission and heavy machinery components. Our ring gear product range includes seamless rolled steel rings, internal gear rings, external gear rings, cast steel gear rims and ductile iron annular components.

Available manufacturing routes include suitable ring rolling, open-die forging, sand casting and shell mold casting. The chosen process depends on the component's approved geometry, material grade, quantity and requested supply condition.

Customers can order ring-rolled forgings, cast blanks or finished ring gear components. Where required, gear tooth manufacturing, machining, heat treatment, finishing and inspection are provided according to the customer's drawings and purchasing documents.

Gear accuracy grades, tooth surface conditions and other performance requirements are defined by the approved order specification. SIMIS does not assign one universal DIN or AGMA precision grade, hardness value or service-life guarantee to every custom gear ring.

Request a Quote for Custom Forged and Cast Ring Gears

SIMIS welcomes OEM inquiries for custom internal ring gears, external gear rings, ring-rolled alloy steel gear blanks, cast steel gear rims and ductile iron ring gear components. We manufacture suitable products according to customer drawings and specified materials.

For a quotation, please provide the following information where available:

• Product drawings: 2D technical drawings or available 3D CAD models.

• Ring gear type: Internal ring gear, external ring gear, planetary gearbox ring or another specified gear component.

• Material requirements: Carbon steel, alloy steel, cast steel, ductile iron or another specified metal grade.

• Product specifications: Main diameter, ring width, mounting features and relevant gear data such as module or DP, tooth count and tooth arrangement for finished gears.

• Order requirements: Estimated quantity, equipment application and whether forged rings, cast blanks or finished ring gears are required.

Additional requirements for gear accuracy, heat treatment, surface condition and inspection can be included according to the approved technical documents. SIMIS will quote the agreed material, manufacturing process and supply scope.

Send your custom ring gear drawings and OEM inquiry to SIMIS: info@simis-group.com
