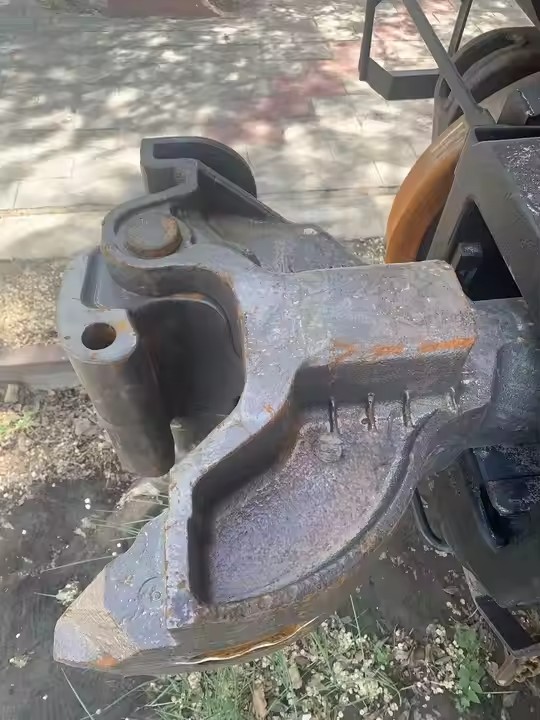

Custom Railway Knuckle Coupler Manufacturer

China Simis Company is a specialized OEM custom manufacturer of high-integrity Railway Knuckle Couplers and Draft Gear components (including the Coupler Body, Knuckle, and Yoke). The coupler system is the primary link between rail vehicles, designed to withstand and safely transmit massive longitudinal traction (tension) and buff (compression) forces.

These components are safety-critical and operate under constant high cyclical fatigue, high static loads, and extreme dynamic impact (e.g., during coupling). We utilize both specialized casting and high-strength forging processes to produce components from High-Strength Alloy Steel, Ductile Iron, and Carbon Steel, ensuring maximum safety, reliability, and long service life for heavy-haul, freight, and passenger rail systems.

1. Component Breakdown: Process & Material Selection

The Coupler system comprises multiple highly stressed components, each requiring a specific material and process to meet functional demands.

2. Manufacturing Processes Optimized for Safety and Impact

We employ both casting and forging to achieve the geometric complexity and internal integrity required for safety-critical rail components.

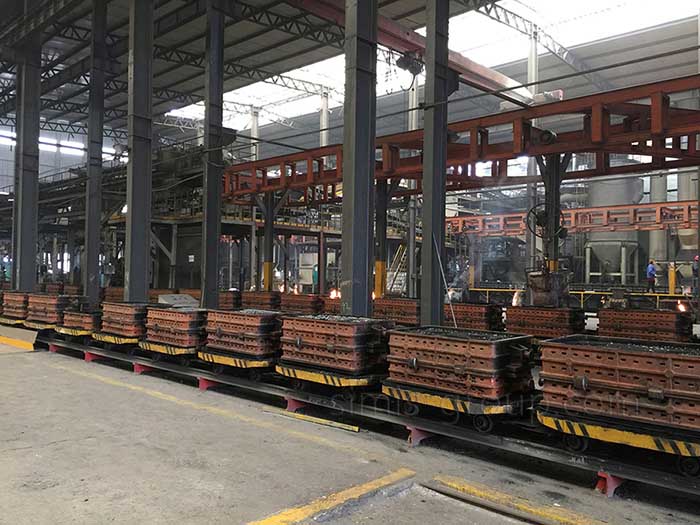

·Specialized Casting (Sand Casting/Shell Mold Casting):

Casting allows for the production of the large, complex shape of the Coupler Body with internal features necessary for the locking mechanism. Strict control over the gating and feeding system ensures internal soundness and eliminates shrinkage porosity in critical stress areas.

·High-Strength Forging:

Used for smaller, high-stress components like the Knuckle or Pins where maximum strength and grain flow orientation are required to handle localized shear and bending stresses.

·Heat Treatment:

Quenching and Tempering are mandatory processes for all alloy steel components to achieve the required balance of high yield strength, ultimate tensile strength, and impact toughness (measured by Charpy V-notch impact test).

3. Material Science: Extreme Load and Fatigue Resistance

Materials must be selected and treated to handle simultaneous high static load (weight of the train) and severe dynamic load (slack action/impact) across a long service life.

·High-Strength Alloy Steel:

The primary material for couplers, treated to meet specific AAR (Association of American Railroads) or equivalent international standards for strength and impact absorption.

·High-Strength Ductile Iron (DI):

Used for certain Draft Gear components and lighter-duty applications, offering good shock absorption and high strength with cost-effective casting.

·Carbon Steel:

Used for less critical structural components where strength requirements are lower but cost-effectiveness is necessary.

·Fatigue Control:

Material processing is tightly controlled to ensure the components meet stringent high-cycle fatigue requirements under massive alternating tension/compression loads.

4. Quality Assurance and Rail Safety Compliance

Due to the safety-critical nature of the coupler, manufacturing processes and quality checks must meet the highest international standards.

·Dimensional Control:

Precision machining of all connecting interfaces (knuckle pins, draft gear pockets) is required to ensure correct coupling action and minimize slack, reducing in-train forces.

·Non-Destructive Testing (NDT):

Magnetic Particle Inspection (MPI) is mandatory on all critical surfaces, and Ultrasonic Testing (UT) is used on thick sections to verify the absence of subsurface defects and casting discontinuities that could lead to crack propagation.

·Impact Testing:

Components must pass low-temperature Charpy V-notch impact tests to ensure they maintain sufficient toughness and do not become brittle in cold climates.

·Metallurgical Traceability:

Full traceability from the original melt chemistry through all heat treatment stages is maintained for audit and safety compliance.

5. Advantages of Simis OEM Customization

Partnering with Simis for custom rail couplers ensures system safety, maximized durability, and performance compliance:

·Safety-Critical Manufacturing:

We specialize in the high-integrity casting and forging of railway safety components, meeting stringent international standards for impact, fatigue, and load capacity.

·Load and Impact Optimization:

We design and manufacture components to withstand the specific, high dynamic impact loads experienced during heavy-haul and shunting operations.

·Advanced Metallurgy:

We control the chemistry and heat treatment to achieve the difficult balance of high strength and high low-temperature impact toughness required by the rail industry.

·Integrated Supply Chain:

We offer a single source responsible for specialized alloy preparation, forming (casting/forging), mandatory heat treatment, precision machining of contact surfaces, and all required NDT and safety certification.

6. Custom Railway Knuckle Coupler Manufacturing Services

China Simis Company is your expert global partner for custom-cast and forged Knuckle Couplers and Draft Gear components, engineered for superior load capacity, high fatigue resistance, and guaranteed structural safety.

Please submit your 2D technical drawings, 3D models (showing knuckle profile and pin dimensions), and specific requirements for material grade, operational load (Traction/Buff forces), and compliance standards (e.g., AAR, EN) to our engineering department for a consultation and detailed quotation. We are ready to secure your rail rolling stock
