Custom Car LED Light Housing Manufacturer

Frequently Asked Questions About Custom Car LED Light Housings

1. What automotive LED light housing parts can SIMIS manufacture?

SIMIS manufactures custom metal housings and heat-dissipation components for automotive LED headlights, fog lights, tail lights, daytime running lights and auxiliary lamps. Typical OEM parts include aluminum die-cast lamp bodies, finned rear housings, heat sink covers, LED module mounting plates, brackets and selected metal connectors. Manufacturing is based on customer drawings and the agreed component supply scope, not an assumption that the casting is a fully assembled or certified vehicle lamp.

2. Is aluminum die casting suitable for car LED lamp housings?

Yes. High-pressure aluminum die casting is a primary option for repeat-production automotive LED housings with integrated ribs, mounting bosses and cooling fins. Customer-specified alloys can include ADC12 or A380. Casting feasibility depends on the geometry, wall thickness, die design and quantity. Low-pressure or gravity permanent mold casting may be appropriate for selected A356 aluminum parts requiring a different casting route.

3. Can SIMIS manufacture LED heat sinks and finned lamp bodies?

Yes. A housing can incorporate cooling ribs or fins to create additional exposed metal area, and SIMIS supplies separate heat sink components for suitable OEM projects. The housing must provide a compatible contact surface and mechanical connection to the LED module. Actual LED junction temperature and thermal performance depend on the full lighting assembly, heat source, contact interface, installation orientation and surrounding airflow; they are not guaranteed by the aluminum casting alone.

4. Which alloys and additional manufacturing methods are available?

Main housing materials include aluminum die-casting alloys such as ADC12 and A380, with A356 considered for suitable gravity or low-pressure cast products. Wrought aluminum alloys such as 6061 or 6063 may be used for separately forged, fabricated or extruded components when their product form is appropriate. SIMIS can also supply selected forged aluminum mounting parts and sheet-metal brackets. The specified material and process are confirmed against the OEM drawing.

5. What information is needed for a custom automotive LED housing quotation?

Please send a dimensioned 2D drawing or available 3D CAD model, the required part type, the preferred aluminum grade, the critical assembly interfaces and estimated order volume. Useful details include the LED module contact pad, fin configuration, lens or reflector mounts, gasket land, cable openings and installation environment. Any target IP rating or photometric requirement should be identified as a finished-lamp requirement, with the relevant part-level acceptance criteria stated separately. Email info@simis-group.com.

OEM Automotive LED Light Housing and Aluminum Die Casting Manufacturer

Custom car LED light housings are metal enclosure and thermal-management components used to protect, position and support lighting modules in vehicle lamps. Their functions can include mounting an LED board or optical assembly, supporting a lens or cover, and carrying heat away from an electronic light source into the surrounding environment.

SIMIS manufactures OEM aluminum die-cast automotive LED housings, finned headlight backshells, LED heat sink bodies, rear lamp metal enclosures, mounting brackets and related metal fittings. These products are made according to OEM drawings, specified alloys and purchasing requirements. The casting may be a lamp housing, a dedicated heat sink or a combined enclosure and heat-dissipation part.

Automotive lighting parts vary significantly in size, shape and function. Some front headlamp modules use substantial finned aluminum bodies, while other lighting products have a polymer outer shell with a smaller metal heat spreader inside. A headlight housing, optical reflector and electronic driver enclosure are different parts and may use different manufacturing materials.

High-pressure die casting is particularly relevant to compact aluminum components containing multiple ribs, fixing points and integrated cooling surfaces. Gravity or low-pressure casting may be selected for other specified aluminum structures. A forged aluminum mounting component or a sheet-metal accessory is not manufactured by the same method as a complex hollow die-cast lamp body.

SIMIS supplies custom metal parts and specified subassemblies within the agreed manufacturing scope. Complete LED lamps, optical systems, electronics, vehicle approvals and lighting performance remain subject to the equipment manufacturer's requirements. Our related capabilities include custom aluminum heat sinks and automotive OEM metal components.

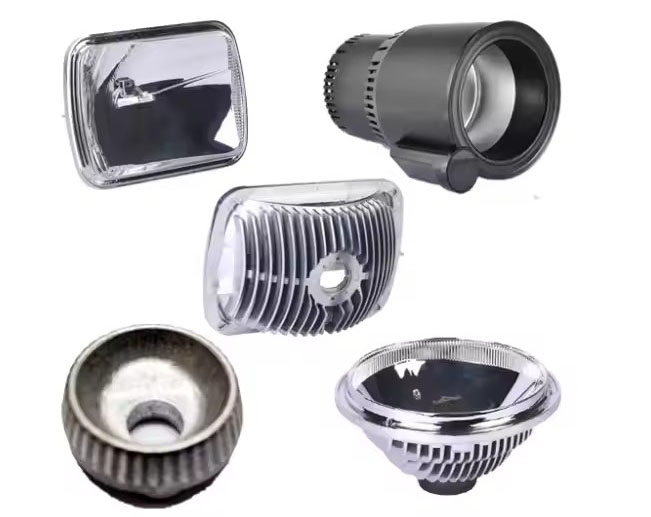

Types of Automotive LED Lamp Housings, Heat Sinks and Metal Mounts

The following categories describe the metal parts that may be specified for an automotive lighting project. The final geometry and material depend on the lamp type, heat source, mounting arrangement and expected production quantity.

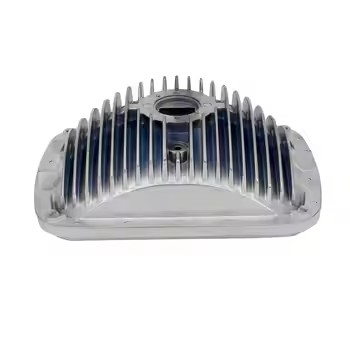

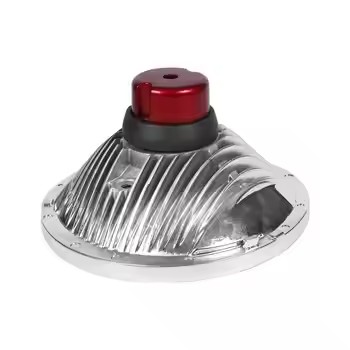

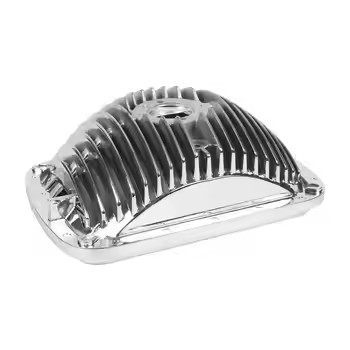

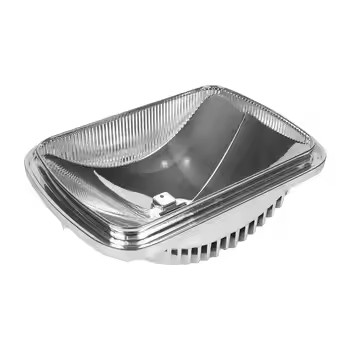

Aluminum Die-Cast LED Headlight Housings

An aluminum LED headlight housing may support an LED module and provide external cooling fins. It can include bosses, screw locations and connection features for the optical module or lamp mounting frame. The heat transfer path depends on how the LED board is coupled to the metal housing; an attractive fin design does not in itself demonstrate sufficient cooling performance.

SIMIS supplies compatible cast aluminum shapes to drawings. Critical module seats, fastening holes and optical datum interfaces are completed only to the dimensional requirements agreed for the particular part.

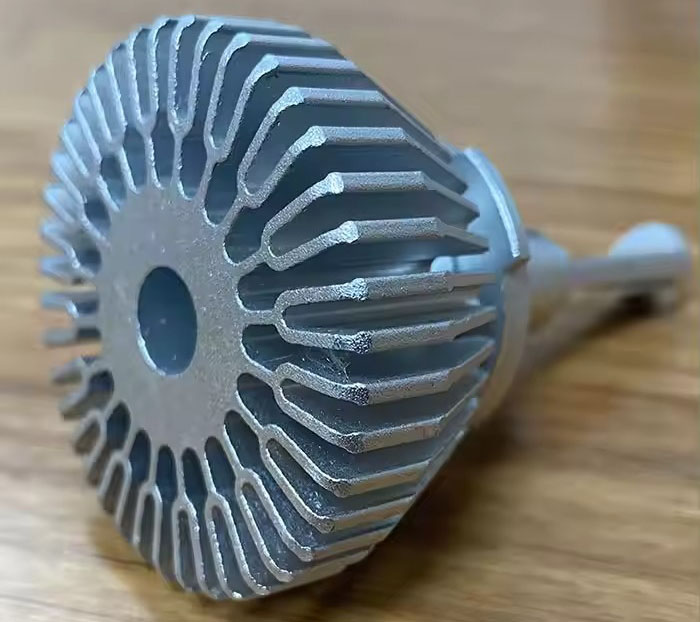

Dedicated LED Heat Sink and Finned Lamp Back Covers

Some automotive lamps use a separate finned back cover or dedicated heat sink rather than a fully metallic outer shell. These metal parts can include radial, straight or curved cooling fins and a central LED contact region. Their manufacturability depends on the alloy, die filling, draft, spacing and intended production quantity.

The finished cooling behavior must be established within the customer's lamp assembly. SIMIS manufactures the metal heat sink body to the agreed drawing rather than guaranteeing a universal LED temperature reduction.

Auxiliary Light Housings and Mounting Components

Fog lights, daytime running lights, work lamps and auxiliary light bars may use cast aluminum enclosures or smaller mounting brackets. Different products call for different cover openings, fasteners, sealing paths and wiring arrangements. SIMIS can manufacture suitable cast or forged metal components where the drawing and selected manufacturing route permit.

Aluminum Die Casting, Gravity Casting and Related Forging Processes

SIMIS provides aluminum casting and selected metal forging processes for automotive LED lighting components. High-pressure die casting is the main manufacturing route for suitable finned car LED light housings. Other processes address designs with different cross-sections, alloy requirements, volume or part functions; they should not be presented as steps that every housing undergoes.

High-Pressure Die Casting for Finned Automotive LED Housings

High-pressure die casting injects molten aluminum alloy into a metal die under pressure. It is a common route for customer-defined finned housings where the part geometry and production volume justify dedicated tooling. Mounting ribs, heat-dissipation fins, cable-entry features and attachment bosses may be formed as part of the casting.

SIMIS provides custom pressure die casting services and aluminum alloy casting. Material and tooling selection consider the desired finish, casting geometry and component interfaces. Casting porosity, tool-parting lines and other manufacturing characteristics must be managed according to the project specification.

Low-Pressure and Gravity Mold Casting for Selected Aluminum Parts

A356 aluminum may be selected for certain LED lamp mounting bodies or housings made by low-pressure or gravity casting. These methods have different filling characteristics from high-pressure die casting and may suit different wall sections or product requirements. Neither process is universally superior for every car lighting component.

SIMIS provides gravity permanent mold aluminum casting and related aluminum foundry services. The project drawing determines whether the component is suited to reusable mold tooling, a sand mold or a high-pressure die.

Forged Aluminum Mounts and Fabricated Lighting Accessories

Forging is a supplementary metal-forming process for selected solid aluminum components such as robust lamp brackets, support arms and mounting connections. A complex finned and hollow LED headlight enclosure is usually more appropriate for casting than conventional closed-die forging.

SIMIS also supplies aluminum forging components, closed-die forged parts and sheet-metal fabricated brackets where the customer drawings justify those routes. Secondary machining and protective coatings are supplied only to the agreed specification.

ADC12, A380, A356 and Other Automotive LED Housing Materials

Material selection for an automotive LED lamp body depends on casting route, production scale, thermal contact requirements, corrosion exposure, weight and mechanical interfaces. SIMIS offers suitable specified alloys and product forms. Thermal conductivity is an alloy- and condition-dependent property: the same nominal metal family does not guarantee the same thermal result in every casting.

ADC12 and A380 Die-Cast Aluminum Housings

ADC12 and A380 are commonly used aluminum die-casting alloy designations for suitable industrial and vehicle components. They offer practical castability for parts with ribs and integrated details, but their exact chemical specifications are not identical. SIMIS manufactures the grade specified by the OEM rather than automatically substituting one designation for another.

Die-cast aluminum housings can carry mounting features and provide a heat-spreading path when the LED module is properly connected to the metal. The alloy, contact geometry and surrounding airflow all affect system-level heat dissipation.

A356 Cast Aluminum and Wrought Aluminum Components

A356 is a casting alloy associated with suitable gravity and low-pressure aluminum cast parts. It is distinct from wrought 6061, 6082 and 6063 grades. Wrought aluminum can be appropriate for separately forged mounting pieces, fabricated plates or extruded heat sinks, depending on the product form.

The casting route and required material condition should be given in the drawing. A356 castings and A380 die castings cannot be treated as interchangeable without checking the design and manufacturing requirements.

Stainless Steel and Coated Steel Lighting Hardware

Stainless steel and coated carbon steel may be suitable for specific external mounting hardware, brackets and protective accessories. They are not usually selected as direct substitutes for lightweight finned aluminum heat-sink housings. Their material condition and surface protection are specified for the intended road or industrial environment.

Applications of Custom Automotive LED Lamp Housings and Heat Sinks

SIMIS supplies drawing-based metal components for automotive lighting programs and selected special-purpose vehicle lamps. The specific lamp type determines which elements must be supported, cooled, mounted or protected by the metal housing.

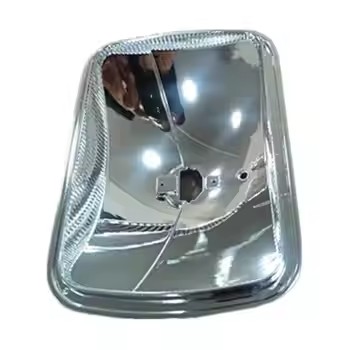

Passenger Vehicle LED Headlights

LED low-beam and high-beam modules can use cast aluminum rear housings or separate heat sinks. These parts may include contact regions for the LED board, fins to expose more metal area and fastener locations for optical modules. The relevant light distribution and vehicle approval requirements apply to the finished lamp system, not to an isolated metal casting.

Fog Lights, Daytime Running Lights and Front Auxiliary Lamps

Compact front lighting products can require small aluminum housings or finned rear plates. Their geometry depends on the available bumper space, mounting bracket and lens or cover configuration. SIMIS manufactures appropriate cast bodies and metal brackets to the OEM drawing.

Rear Lamps and Vehicle Signal Lighting

Some tail-light and signal-light modules incorporate metal supports or heat-transfer elements. Others use polymer housings with limited metal hardware. SIMIS supplies customer-defined cast or fabricated aluminum components where the lamp construction requires them, without assuming every rear lamp has a fully metal exterior.

Commercial Vehicles, Off-Road and Auxiliary Light Bars

Commercial vehicles, service vehicles and off-road equipment may use auxiliary lamps, work lights or light bars with metal housings. Relevant component interfaces include installation brackets, lens seats, wiring openings and heat-transfer features. Water, road salt and vibration exposure are considered according to the OEM's operating requirements.

SIMIS also supplies related custom lighting housing castings for industrial lighting and electrical and lighting metal components across other equipment categories.

Custom Die-Cast LED Lamp Housings Made to OEM Drawings

SIMIS manufactures aluminum die castings and related metal components from customer-supplied drawings. We can supply suitable casting blanks, finished housings, finned heat sink parts, forged brackets and other specified metal accessories within the accepted order scope.

Manufacturing choices are confirmed against the required alloy, wall-section geometry, fin configuration, tooling volume and mounting interfaces. The drawings should identify any critical LED board contact areas, optical component datums, gasket seats or threaded connections. These may receive agreed finishing operations after casting where necessary.

Surface treatment, coating, machining, material records and inspection are supplied as specified by the OEM purchase documents. SIMIS offers related metal surface treatment services for compatible castings, but the coating process is not assumed to be the same for every aluminum alloy or visual finish.

A customer-defined ingress protection target, vibration requirement, photometric regulation or thermal performance limit cannot be certified by a raw housing alone. The finished lighting assembly, including LED module, optics, covers, seals, wiring and mounting, requires the relevant customer validation. SIMIS does not promise a universal IP67 rating, ECE/DOT certification, minimum LED junction temperature or lifetime for every die-cast part.

Our OEM work focuses on a defined metal component made to an approved drawing. This helps distinguish a custom aluminum enclosure supplier from a seller of ready-made headlights or complete vehicle lighting systems.

Request a Quote for Custom Car LED Light Housing Castings

SIMIS welcomes inquiries for custom aluminum LED headlight housings, finned rear covers, lamp heat sinks, automotive light brackets and related metal components. Send your drawings and purchasing requirements so the material and casting method can be reviewed for the specific project.

For a quotation, please provide the following five items where available:

• Product drawings: Dimensioned 2D drawing and available 3D CAD/STEP model, including part revision.

• Component type: Headlight housing, finned back cover, LED heat sink, fog-light body, mounting bracket or related metal part.

• Material and process: Specified ADC12, A380, A356 or another alloy, plus any preferred die-casting or gravity-casting route.

• Critical product interfaces: LED module contact pad, fin arrangement, lens or reflector location, gasket surface, fastening features and cable-entry dimensions.

• Order requirements: Sample or production quantity, expected annual demand, supply condition and any relevant environmental or assembly specifications.

Any required finishing, inspection or assembly-level validation may be included in the approved technical documents. SIMIS will quote the specified metal parts and the agreed manufacturing scope.

Send your OEM automotive LED housing inquiry to: info@simis-group.com
